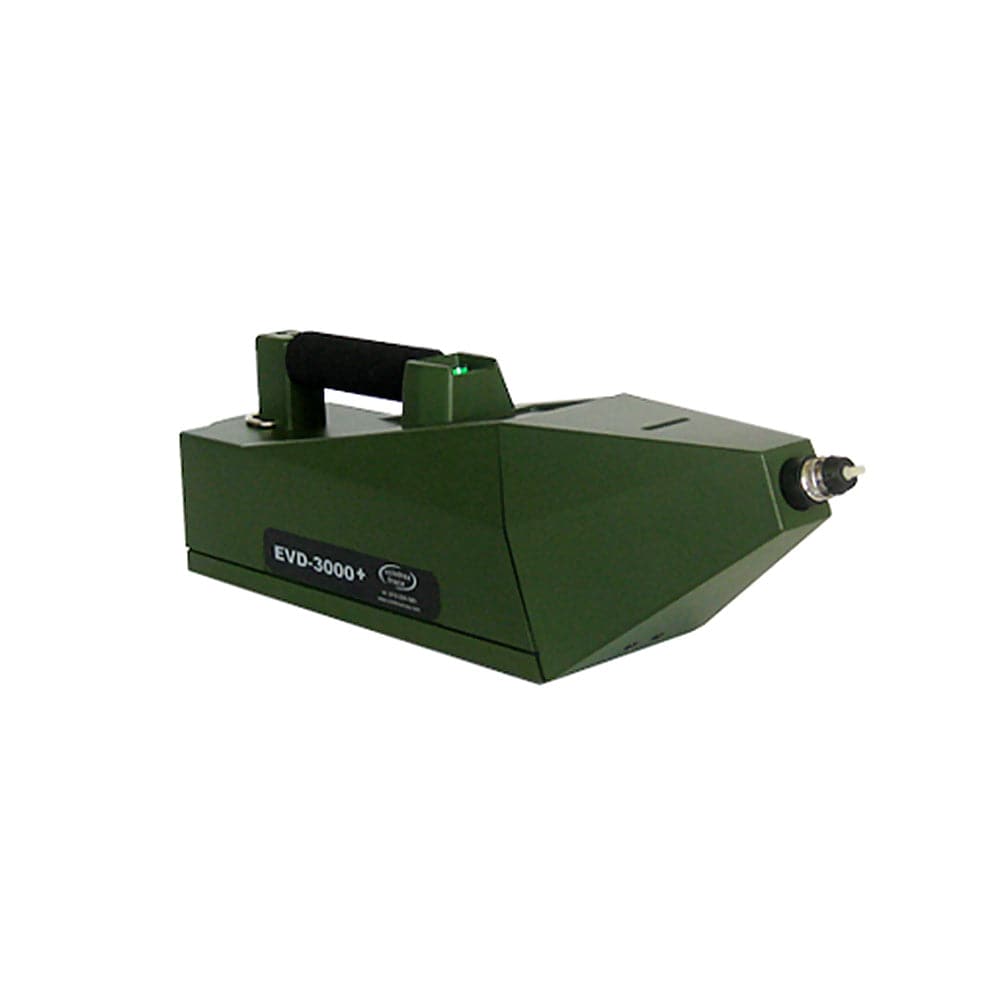

Portable Explosive Trace Detector - EVD-3000+

Scintrex Trace EVD-3000+ Portable Trace Detection Unit

SKU:AC-EVD-3000+

Autoclear

This product is available.

HandHeld Explosive Detector - EVD-3000+

Portable Explosive Detector at Cost effective price with high efficiency

The Scintrex Trace EVD-3000+ Trace Detector is an advanced explosive detection unit that detects trace amounts of plastic & high vapor-pressure explosives such as C-4, PETN, Semtex, RDX and nitroglycerine. Using thermo-redox technology, this explosive detector can analyze either trace or vapor samples and delivers clear results in less than 10 seconds with the push of a button. No carrier gas or radioactive source is needed to operate the system which increases the safety of the end-user as well as reducing ownership costs.

Portable Explosive Detector EVD-3000+ Features

  • Rapid, accurate & easy to read results
  • Self-calibrating
  • Lightweight & field-ready
  • No radioactive source

HandHeld Explosive Detector Specifications

Detector:                                 Thermo-redox

Analysis Time:                        < 10 seconds

Explosives Detected:             C-4, TNT, dynamite, PETN, Semtex, RDX, black powder, NG and all ICAO taggants

Sensitivity:                              Particulates: nanogram Vapors: low parts-per-billion

Sample Collection:                Particulates and vapors

Warm-up Time:                       None, after one minute start

Alarms:                                    LED indicator lights, audible alarm

Power Supply:                        12 V DC rechargeable battery

Input Voltage:                         90-264 VAC, 50-60 Hz universal switching

Unit Weight:                            2.8 kg (6.2 lbs.) with battery

Unit Dimensions:                   50.0 x 14.0 x 11.0 cm (L x W x H) 19.9 x 5.5 x 4.3 in.

Operating Temp:                    0o to 55oC (32o to 131oF)

Storage Temp:                        -5o to 65oC (23o to 149oF)

Communication:                    RS-232 serial output port

Data Storage:                         1,000 retrievable data records

Options:                                  12 V AC adapter, external battery, printer
