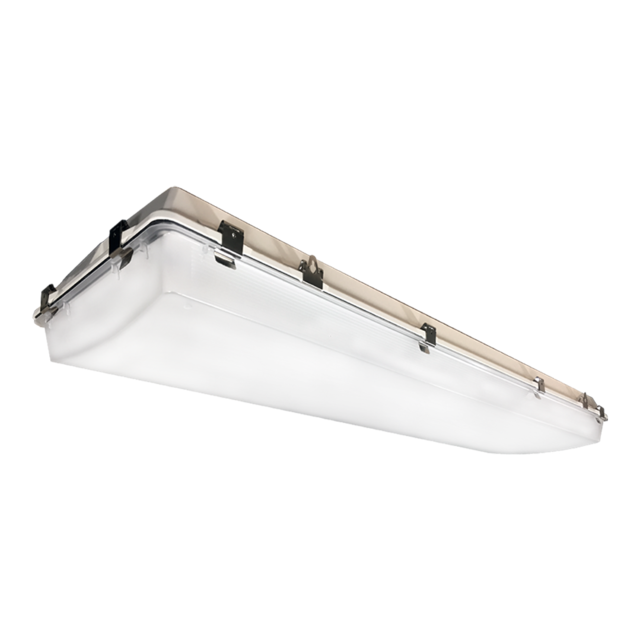

Shat-R-Shield Ironclad VTHB Vapor-Tight High Bay LED Fixture

The Shat-R-Shield Ironclad® LED VTHB is a vapor-tight high-bay fixture engineered for demanding institutional and harsh environments exposed to moisture, dust and frequent wash-down.

Manufacturer base part number: 180VB40CLVLN000000000001
Displayed Security Pro USA price: $756.70 for the listed base product page. Configuration changes may affect final project price.

Key Specifications

• 158W base configuration; additional configurations available by model
• Approximately 22,120 lumens in the 158W configuration
• CCT: 4000K or 5000K
• Voltage: 120–277V; 347–480V options available
• 0–10V dimming
• Battery-backup options available
• Dimensions: 52 × 14.5 × 6 in.
• Weight: approximately 19.5–24 lb., depending configuration
• LED life: L70 >72,000 hours
• Warranty: 5 years

Ratings & Compliance

• cULus
• DLC
• NSF Splash Zone
• RoHS
• IP65 / IP66 / IP67
• NEMA 4X / NEMA 5
• UL wet location
• UL 1598A

Clear or frosted lens, multiple mounting methods, sensors, whips, plugs and battery-backup configurations are available. Contact Security Pro USA for exact configuration and quantity pricing.
