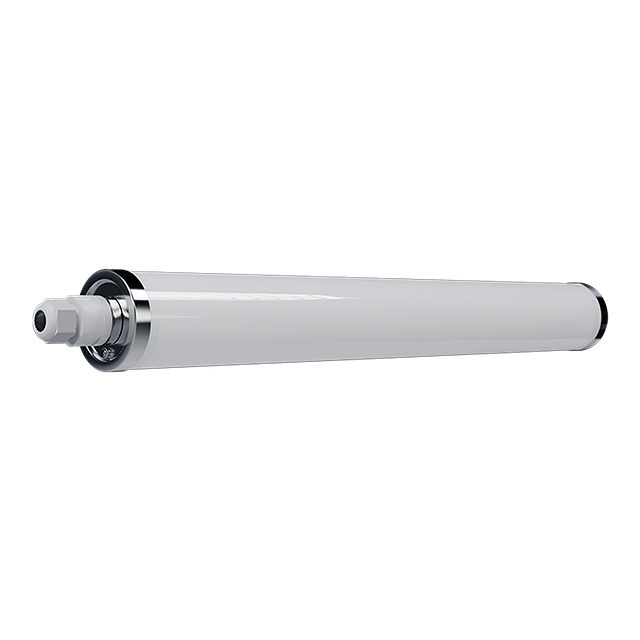

Shat-R-Shield Ironclad LDL Light-Duty Linear LED Fixture

The Shat-R-Shield Ironclad® LDL Light Duty Linear is a durable, sealed linear LED fixture for correctional, institutional and industrial areas where wash-down capability, impact resistance and a compact profile are important.

Base manufacturer part number: 020LDL25000PC1WX1WX00001
Displayed price: $211.90 for the 2-foot base configuration. A 4-foot configuration is also available.

Base Configuration

• 2 ft fixture
• 20W LED
• 5000K
• 120–277V
• Surface mount
• Polycarbonate construction
• 1 ft whip on each end

Key Specifications

• 2 ft: 20W / approximately 2,700 lumens
• 4 ft: 50W / higher-output configuration
• 2 ft dimensions: approximately 23.58 × 2.77 × 2.77 in.
• 4 ft dimensions: approximately 56.9 × 2.77 × 2.77 in.
• Approx. weight: 5–7 lb., depending configuration
• Warranty: 5 years

Ratings & Compliance

• IK10 impact resistance
• IP66 / IP69K
• cULus listed
• Wet-location rated

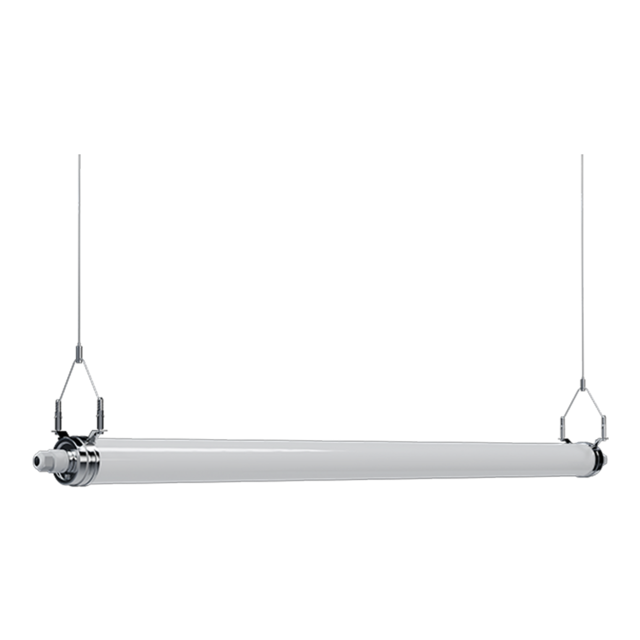

Suspended mounting kits, connectors, end caps and other wiring accessories are available. Contact Security Pro USA for the correct configuration and project pricing.
