Shat-R-Shield Ironclad WDHB | NSF/IP69K Washdown LED High Bay

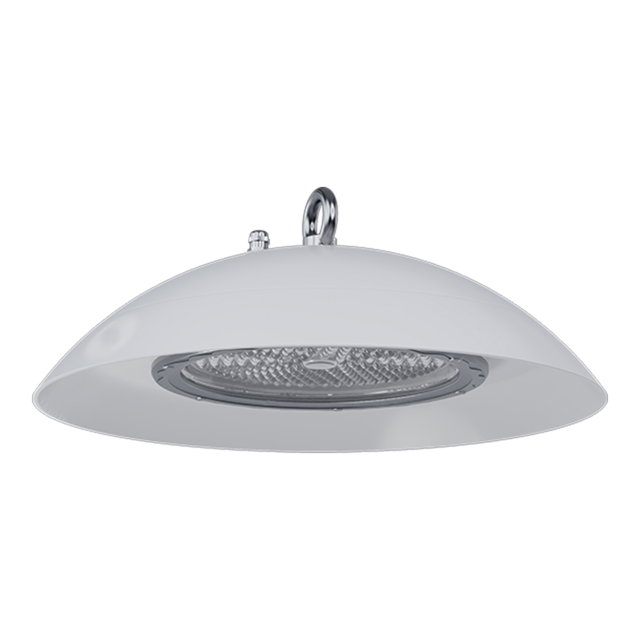

The Shat-R-Shield Ironclad® Wash Down High Bay is a rugged, high-output LED fixture for food-processing, industrial and wash-down environments where moisture, impact and frequent cleaning are concerns.
Base manufacturer part number: 200WDHBSKVL1200000000001N
Displayed price: $534.30 for the base configuration shown. Options may change price.
Base Configuration
- 200W selectable LED high bay
- 120–277V
- 120° beam
- Selectable CCT
Key Specifications
- Selectable wattage: 200W / 150W / 100W / 60W
- Current manufacturer photometric data: 7,779–23,112 lumens across wattage, beam and CCT configurations (200W/120°: 21,819–21,882 lumens)
- CCT: 4000K / 5000K
- Dimensions: 19.25 in. diameter × 7.53 in. high
- Approx. weight: 16 lb.
- Life: L70 >50,000 hours; projected >100,000 hours
- Warranty: 5 years
Ratings & Compliance
- IK10
- IP66 / IP69K
- NSF
- DLC
- cULus
- RoHS
- NEMA 4 / 4X / 5
- Wet location
Available options include 50° beam, plugs, surface-mount bracket, 3/4-in. NPT adapter and safety chain. Contact Security Pro USA for project configuration and quantity pricing.
Application guidance
The WDHB family is designed primarily for food production, industrial washdown, processing floors and similar high-moisture workplaces. Its washdown protection does not establish that it is a ligature-resistant or secure-cell fixture. For specialized detention-cell applications, compare a purpose-built H2O Pro correctional shower fixture.
Buyer FAQ
Is WDHB suitable for washdown areas?
Shat-R-Shield lists IP66, IP69K, NSF and wet-location ratings for the WDHB family. Verify the current certification documents for the exact ordered configuration and facility cleaning procedure.
Does every 200W fixture deliver 23,112 lumens?
No. Photometric output varies by CCT, wattage and beam angle. Manufacturer-published IES configurations range from 7,779 to 23,112 lumens. Request an IES file matching the specified model and mounting height.
Can it be surface-mounted or hung?
The manufacturer offers surface and pendant installation arrangements. Confirm the selected mounting kit, support requirements and any safety-chain accessories.
What should I include in my RFQ?
Provide room dimensions, mounting height, washdown conditions, CCT preference, beam angle, voltage, fixture count, required certification documents and delivery address. Request the full configured factory MPN.
Manufacturer-reported installation: Newly Weds Foods (June 2025)
In a published Shat-R-Shield case study, the manufacturer describes a distribution-center lighting project using 68 of its 200W Wash Down High Bay fixtures to replace 84 existing 250W metal-halide fixtures. Shat-R-Shield reports that measured illumination improved from 12 to 60 foot-candles in that installation. This is a manufacturer-reported result at one facility, not a Security Pro USA installation claim or a performance guarantee for another layout. Request a site-specific photometric design and the final configured MPN.
