SecPro Anti-RC IED & Communication Jammer

SecPro Anti-RC IED & Communication Jammer

SKU:SP-MRCJ

SecPro

This product is available.

(Government Use Only)

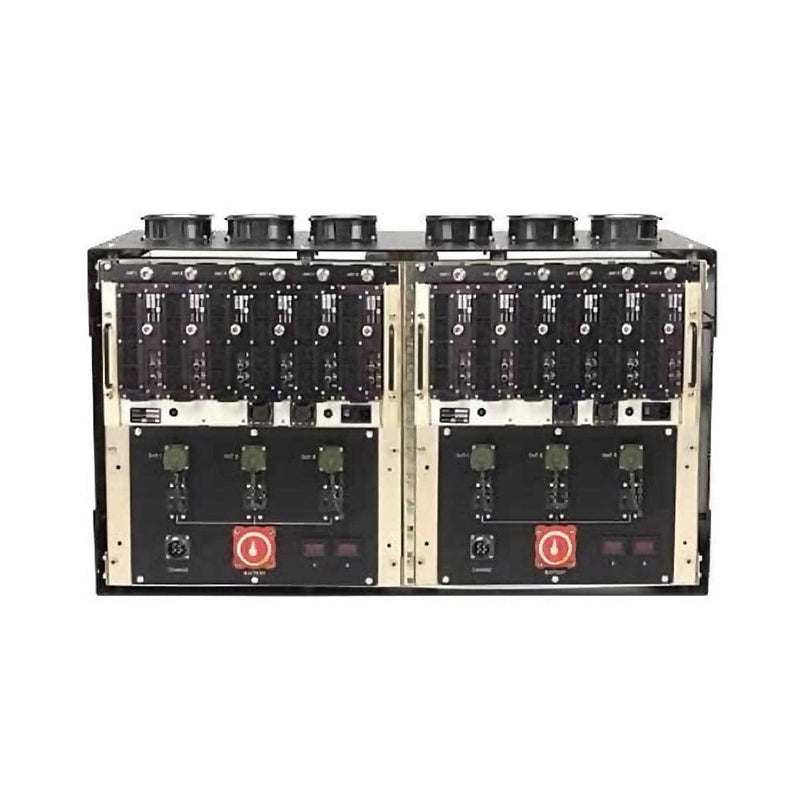

The SecPro Anti-RC-IED & Communications Jammer is a user-friendly digital jammer module with onfield programming capabilities designed to disrupt enemy radio controlled improvised explosive devices (IED's) and communications. The system can be configured to hold up to 24 stand-alone jamming modules in order to cover the 20-6000 MHz spectrum with an RF output power up to 2 KW, all contained in two 19” racks. Furthermore Security Pro USA can customize the Antenna System and Installation Kit of each system on any vehicle, ensuring maximum performance and compatability.

Key Features

  • Fully programmable stand-alone modules
  • Full coverage from 20-6000 MHZ
  • User-friendly and remote controlled interface
  • Full coverage up to 6 GHZ
  • Programs and mission variables are stored external SD card

Technical Specifications

Frequencies & RF Power Output
for each band/sub-band

VHF 20-140 MHz, 120 W ± 1.5 dB
UHF 140-500 MHz, 120 W ± 1.5 dB
UHF 500-2500 MHz, 80 W ± 1.5 dB
SHF 2500-6000 MHz, 30 W ± 1.5 dB

Rack Size Each 500mm deep rack can store up to 6 jammer modules, 6 antenna conections and AC/DC convert/power supply
Antenna System

An array of omnidirectional and directive antennas is installed depending on the type of vehicle and on the specific needs of the end-user. Custom roof bag and low profile solutions are available.

Software Each jammer module is fully programmable by the end-user via included PC software. Each module can be programmed with up to 10 windows.
Preset mode & reactive response modes are available.
Remote Control Capabilities Allows the user to remotely manage and control the system, as well as upload programmable mission-specific scenarios.
***Please note that our IED and communications jammers are custom-built, made-to-order items***
