Scanna Scansilc 4030 X-Ray Scanner

Regular price
Regular price Sale price $0.00


Scansilc 4030 is a superior resolution X-ray Imaging System with a large 40 x 30 cm format a-Si flat panel X-ray detector for specialist security inspection, postblast investigation, forensics, NDT and artwork.

Key features

•For specialist search, investigation, examination and exploitation
•Portable and easy to set up and use in 2 minutes
•High Dynamic range
•Superior Resolution Images
•Image analysis includes zoom, reverse black and white, pseudo-color, pseudo 3D and measure, show gradients, rotation, distance, contrast enhancement and more
•Works with most portable x-ray sources including Golden XR150, Golden XR200, Golden XRS-3 and also recommended continuous x-ray sources
•Image print and email. archive in excess of 32,000 images on PC or CD/DVD
•Text, Voice and Image Annotation tools
•Full database management tools
•Wired and Wi-Fi operation

Imaging Area
12 x 16” ” (30 x 40 cm)


• IED Search and Investigation
• Contraband Detection
• Forensic Investigations
• Electronic Countermeasures
• Aerospace/Automotive Inspection
• Castings
• Electronic Components
• Museum Conservation / Art studies

Image processing features
ScanSilc 4030 uses our powerful ScanView software to give you a range of image manipulation options to get all the detail out of your x-ray image. Features include Zoom, inverse Image, b/w, pseudo color, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients. ScanView is also available with multi-lingual imaging software and operating guides.
A range of annotation tools allow you to insert text, notes and highlight suspect areas.

Database features
ScanView’s database software allows you to store over 32,000 images using searchable fields on harddisc or cd. Raw and Stored images can be immediately exported by email or across a network.

Equipment Service and Support
Our comprehensive equipment support packages provide you with a range of service options to support your equipment in the field and ensure its reliability and performance.

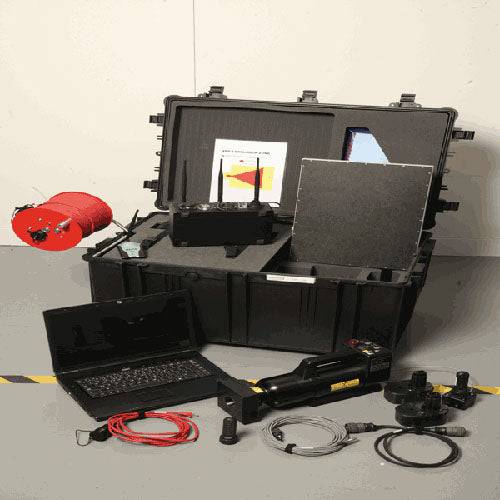

Standard System Configuration

  • ScanSilc 4030E flat panel aSi x-ray imager
  • XR200 X-ray generator
  • Spare generator battery
  • High specification laptop
  • Scanview security imaging software
  • 50m cable on reel
  • Interface box
  • Integrated System Chargers
  • Wheeled Pelistyle Transit Case

ScanSilc 2520E Imaging Panel Specifications

X-ray Imaging Area

Image Area: 11.5 x 16” (29.3 x 40.6 cm)
Thickness: 1.3" (3.4cm)

Size and Weight

Size: 17.7 x 13.3 x 1.3” (45 x 33.7 x 3.4 cm)
Weight 16 lbs (7.4 kgs)


Temperature Range: 1 to 35C - operational -20 to + 70C - storage

Power Adaptor: 100-240VAC, 47-63 Hz
Power Consumption: 35 W


Pixel Pitch: 127 microns
Line Pairs: 3.94 lp/mm
Fill Factor: 57%
Dynamic Range: 14 bits

Interface Box

Dimensions: 10 x 3.5 x 7.5"
Weight: 8.3 lbs

X-ray Generators

XR200 supplied as standard:

Size: 12.5” x 4.5” x 7.5” (31.73 cm x 11.5 cm x 19 cm )
Weight 12 lbs ( 5.5 kgs)
Penetration: 0.5" steel
Photon Energy: 150 Kv

See X-Ray generator pages for specifications of alternative x-ray sources.

Standard Laptop

• 15.4" WXGA Screen (1280x800) Glare / WSXGA+ (1680x1050) Glare
• Intel P8400 Core 2 Duo 2.26Ghz 1066FSB 3MB Mobile
• Vidia GeForce Go 9600M GT 512MB Video
• 2Gb DDR2 800 Memory
• Serial ATA Hard Drive, up to 500GB
• 160Gb Hard Disk Drive
• DVD+/- RW Drive
• Card Reader
• Optional 802.11n Wireless LAN
• RJ-45, USB, VGA
• 10/100 LAN
• Windows XP Professional (English

Scanview image processing features
Zoom, inverse Image, b/w, pseudo color, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients.

A range of annotation tools: Insert text, notes and highlight suspect areas.

Image Database and Incident Management Tools

  • Wireless X-ray Activation
  • Wireless X-ray Image Transmission (802.11n)
  • 50/100/150 m cable extensions
  • ScanDem Dual Energy Module for organic material discrimination
  • ROV robot integration
  • Imager and Generator Tripods and Mounts
  • Image Panel Protective Cover

***Please note that Security X-Ray Inspection Systems are made to order items and cannot be purchased online ***
