Scanna Scanmax 15 Cabinet X-Ray Scanner
Scanmax 15 Cabinet X-Ray Scanner
Scanmax 15 is a space-saving color postal cabinet x-ray scanner for checking bundles of letters, documents and small packages.
Its compact size allows you to site it on a standard desk-top or under a desk or mailroom bench making it ideal for locations where space is limited.

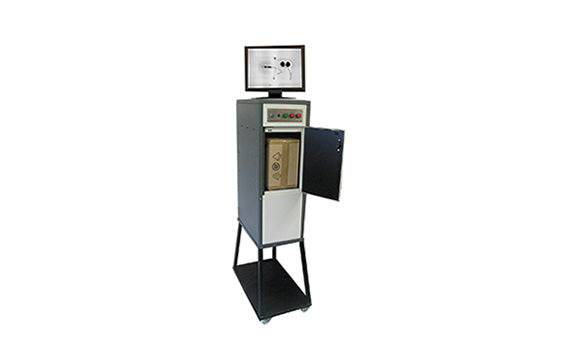

Scanmax 15 can also be supplied as a freestanding cabinet on a wheeled trolley base.
Compact and Easy to Use
Scanmax 15 is a desk-top or floorstanding postal security x-ray unit combining a compact cabinet with high resolution, easy to see x-ray images. It is designed for ease of use by non-technical staff and the front loading door and small footprint mean it can be located virtually anywhere in the workplace.
Image Enhancements
Scanmax images are automatically enhanced for optimum clarity with the option to be shown in negative. There are also several image enhancement options for highlighting low, medium and high density materials as well as defining powders, syringes and circuitry.
X-ray Image enhancements are made using a simple handheld mouse. All images are stored on screen until the next x-ray exposure is made.
Powder Detection
Both Scanna and customer tests have shown that Scanmax Colorscan x-ray units are able to clearly view powders in envelopes provided the envelopes are scanned flat in small batches (up to 30/40 envelopes on top of the envelope containing powder).
Versatile Monitor
The 17″ flat screen monitor can sit on top of x-ray cabinet, on top of desk or be remote wired to a security control room.
This is an advantage over postal x-ray units incorporating a built in monitor (remote viewing possible and no unit shutdown or expensive maintenance due to monitor error- simply swap over monitor!)
Advanced Options
The optional Scanprint facility allows you to print, email and archive x-ray images while the Network model allows you to link your x-ray machine up to a pc on your network to save and view images remotely.
Safe and Secure
Scanmax 15 cabinet X-ray machines produce only very low level x-rays and conform to all published international Electrical Safety and Radiation Standards. Each x-ray machine is issued with a Radiation Safety and Test Certificate. It is completely safe for use by any person including pregnant women.
User Training
A range of Operator Training Programs and X-ray Image Recognition Charts is available.
We also manufacture a larger floor standing cabinet x-ray machine for checking larger quantities of mail, courier deliveries and parcels- Scanmax 25 and an advanced mail and parcel x-ray scanner – Scanmax 225.
Scanmax 15 is designed and tested to comply to US FDA Standards for Cabinet X-ray systems CFR 1020.40.
Standard System Configuration
- Scanmax 15 Postal X-ray Cabinet
- 17” flat panel viewing monitor
- Handheld Mouse Control
- System safety key
- VGA monitor lead
- Monitor IEC lead
- Mains Lead
- Operating Manuals
- 12 month back to base exchange warranty
Cabinet x-ray Scanner Technical Specifications
Power
Power Supply: 100V +/- 15% and 220V +/- 15% single phase 50/60 hz - (state voltage when ordering.
Size and Weight
Dimensions: H: 35" x W: 13" x D: 19.5" (H: 89 cm x W: 32.5 cm x D: 50cm)
Weight: 253lbs (115 kgs) unpacked. 330lbs(150kgs) packed.
Shipping Dims: H: 43.3" x W: 27.5" x D: 2.75" (H: 110 cm x W: 70 cm x D: 70 cm)
Capacity and Throughput
Max.Parcel size: H: 13" x W: 9" x 15" (H: 33 cm x W: 23 cm x D: 39 cm)
Screening speed: Approx 12,000 items per hour in batches of 100. Contents of mailsack can be scanned in approximately 10-15 minutes. 250 packages per hour screened individually.
Detection Capability
Camera: 1.3 megapixel
Penetration: 0.8"
Wire Detection: 36 AWG
X-ray Generator
KvP: 60 KvP
Current: 3-7 mA
Cooling Method: Oil Cooled
Safety and Emissions
Magnetic media: Scanmax 15 will not damage magnetic tape, computer disks, CDs DVDs, video tape, ID cards, Credit Cards
Radiation: Scanmax 15 meets recognized international radiation standards with emissions of less than 0.1 microsieverts per hour
Environmental
Temperature: 0 -40 C
Max Humidity: 95%
Scanmax 15 is designed and tested to meet NRC regulations (10CFR) Part 20 - radiation requirements for cabinet x-ray machines.
Options
- 19” monitor
- Remote monitor and mouse
- Blast protection cladding
Upgrades
- PC Link upgrade
- 1.5 megapixel camera upgrade
- Print, Save, Share and Stream Images upgrade (via PC link)
- Network capability upgrade (via PC link)
- Advanced Image Analysis upgrade (via PC link)
- Remote viewing across network upgrade (via PC link)
- Remote diagnostics upgrade (via PC link)
***Please note that Security X-Ray Inspection Systems are made to order items and cannot be purchased online ***
