Garrett Paragon ADA - ADA 32.5" clearance IP65 # 1172003

SKU : GAR-1172003
Regular price $9,295.00
Regular price $6,594.95 Sale price $9,295.00

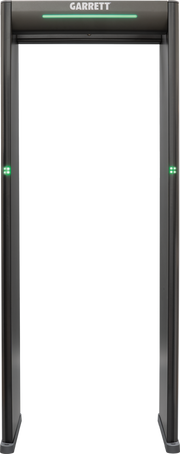

Garrett Paragon ADA - ADA 32.5" clearance IP65  # 1172003



Paragon ADA - ADA 32.5"" clearance IP65 version, 66 independent zones with bilateral detection. More than the sum of its parts.

The Garrett Paragon possesses the best attributes of its predecessors, but also introduces never-before seen setup and operation features, as well as a distinct and pleasing new aesthetic. Modern, mission-critical security systems require a detector that is connectable, adaptable, and reliable. Paragon is all of that and more.


A model of excellence.

Paragon sets the bar for the future of high-security detection with its user-empowering features and high-performance detection capabilities. Catch the ferrous and non-ferrous metallic contraband you want to find with more program options than ever and improved sensitivity and interference immunity.


Diverse applications.

From stadiums to courthouses and theme parks to schools, Paragon has the flexibility to serve the needs of your moment. Respond in real-time with easily adjustable settings and superior mobility, ensuring that surprise traffic changes or unexpected VIPs never leave your security system scrambling.


Integrated USP icon

Integrated UPS.
Internally-mounted emergency power ensures continuous operation in the event of accidental AC disconnect or power outage.

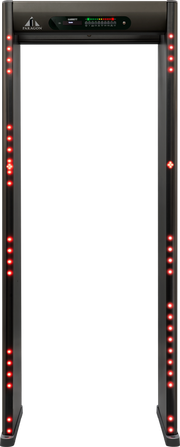

High-visibility pacing lights.
Allows patrons and staff to clearly see entry locations at large events.

Cabinet storage.
Allows charging of handheld detector while not in use.

IP 65.
Exacting construction provides protection from dust and moisture.

Sophisticated design.
Paragon’s smooth and trim structure is as at-home in an office building as a stadium.

Zero Touch icon

Zero Touch.
NFC card reader allows settings adjustment without mechanical insertion, meaning less wear and fewer card replacements.

Time of Flight sensors detect both the presence of people and the direction of movement through the walkthrough portal.

Secure crosspieces.
Both detection head and crosspiece are key-lock secured to prevent tampering.
Quick-Q icon

Optional settings allow cell phones to be ignored while still catching mass casualty weapons.

200 sensitivity levels.
Paragon’s 23+ programs are all adjustable to 200 sensitivity levels for maximum security choice.

3 Year Warranty
See Warranty notice.

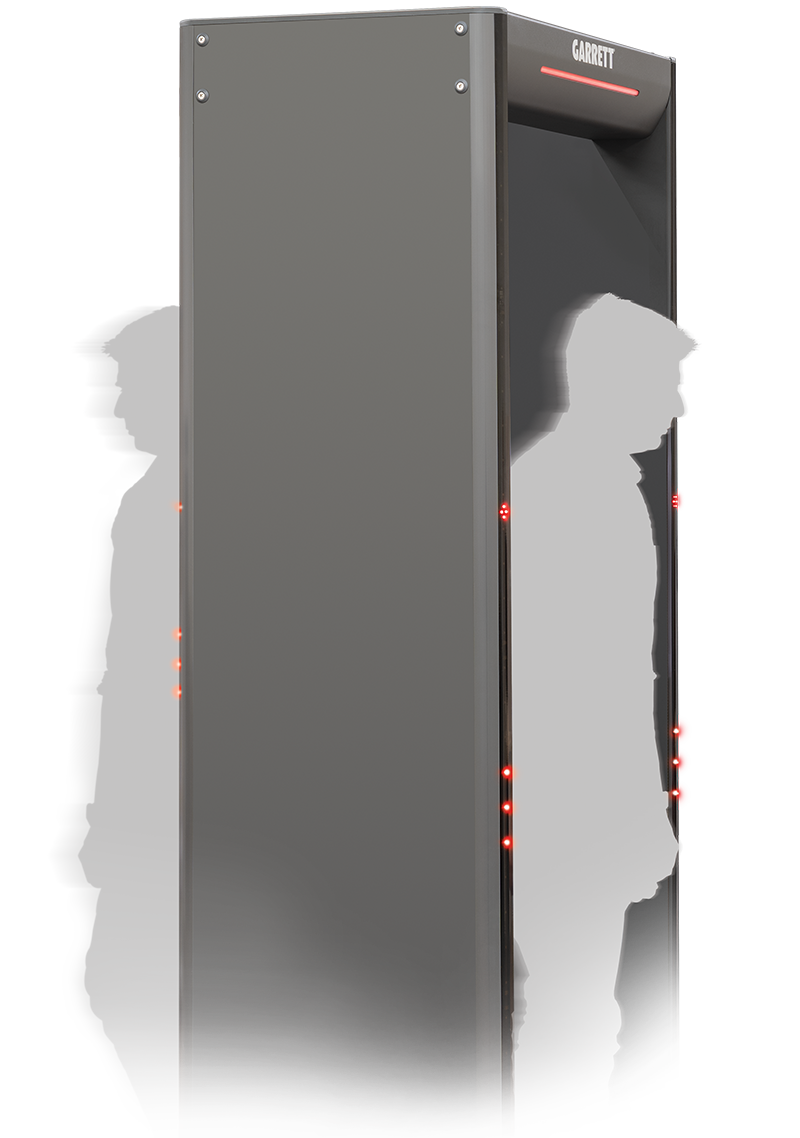

With Ambiscan, one detector does the work of two. This Paragon feature allows supervisors to set two distinct sensitivities based on the direction of traffic. Catch weapons coming in. Catch company property going out.

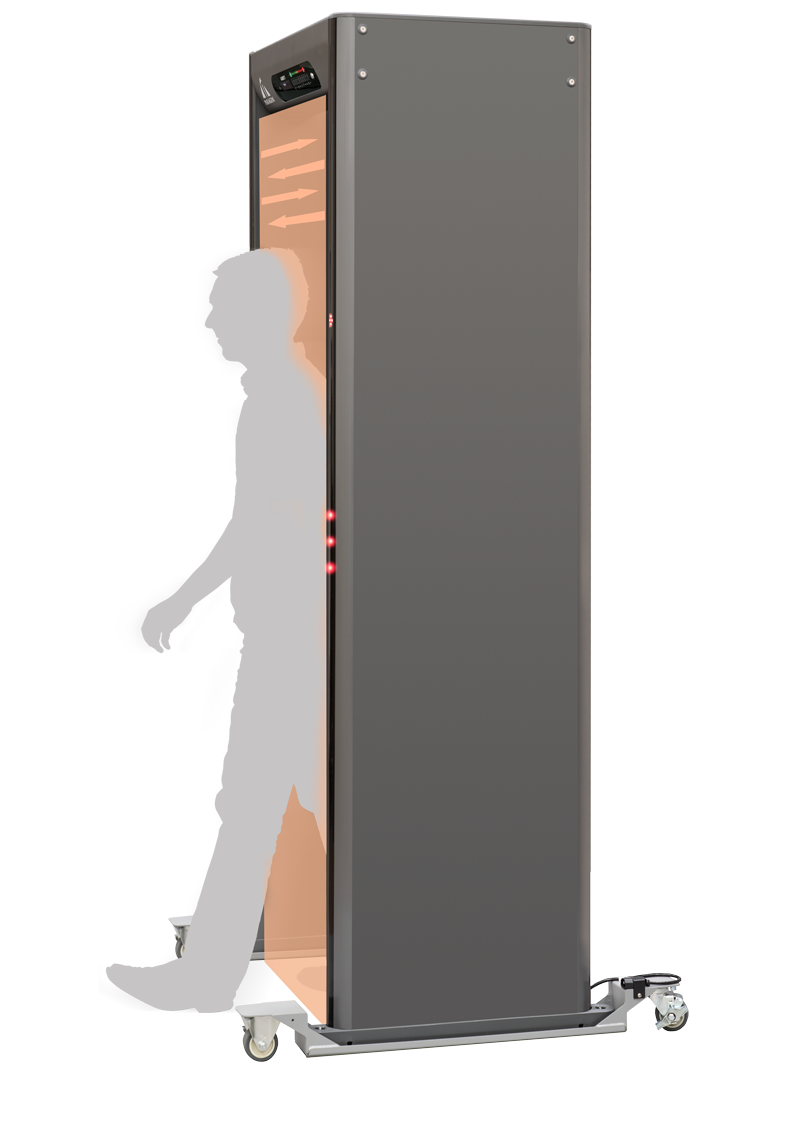

Paragon dual sided icon BILATERAL DETECTION

Paragon has dual transmit and receive capability in both panels, a Garrett industry exclusive.

This means:

  • Evenly distributed detection across the walkthrough portal. Single-sided detectors experience falloff as the transmit strength varies from left to right. Paragon eliminates this weakness
  • Simplified multi-unit setup. Paragon’s doubled perspective improves its ability to account for and eliminate the interference caused by other walkthroughs in close proximity.
  • Superior target analysis. Paragon’s bilateral screening is the electromagnetic equivalent of binocular vision, enhancing the ability of the detector to precisely identify and distinguish objects within the portal.

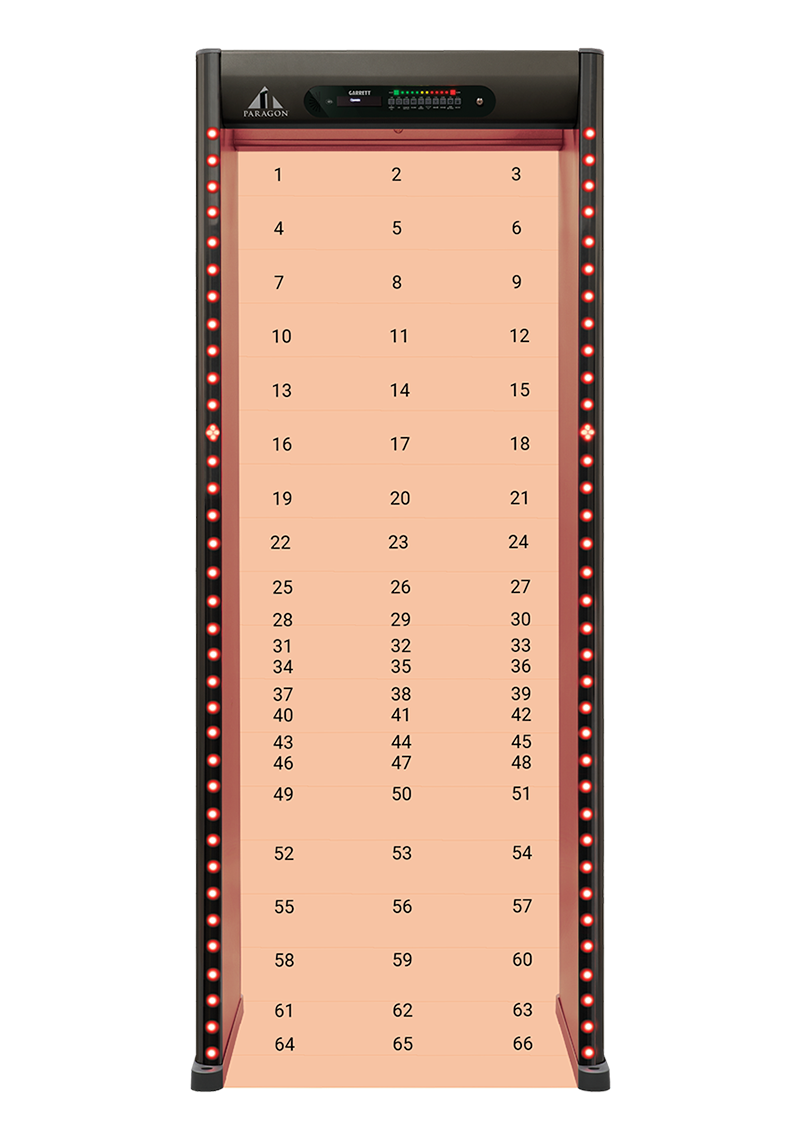

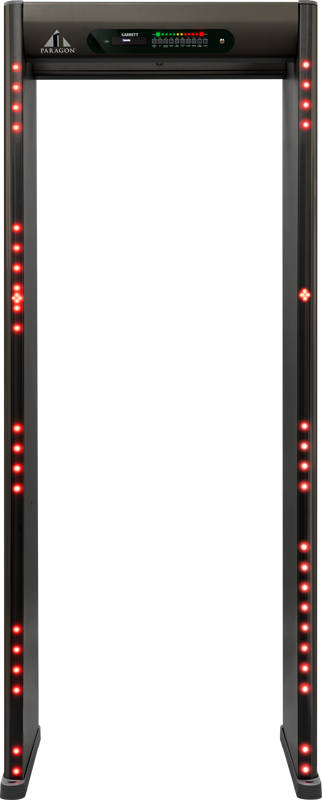

Garrett 66 Zones Icon 66 ZONES

Paragon brings with it an industry-leading 66 zones – left/center/right identification of targets across 22 horizontal bands. This high-resolution detection lets operators find targets quickly and efficiently during secondary screening without diverting their attention away from the checkpoint.

Emphasize high risk zones with Zone Boost. All 22 of Paragon’s horizontal bands are independently adjustable for maximum finesse in addressing the detection needs of your facility.

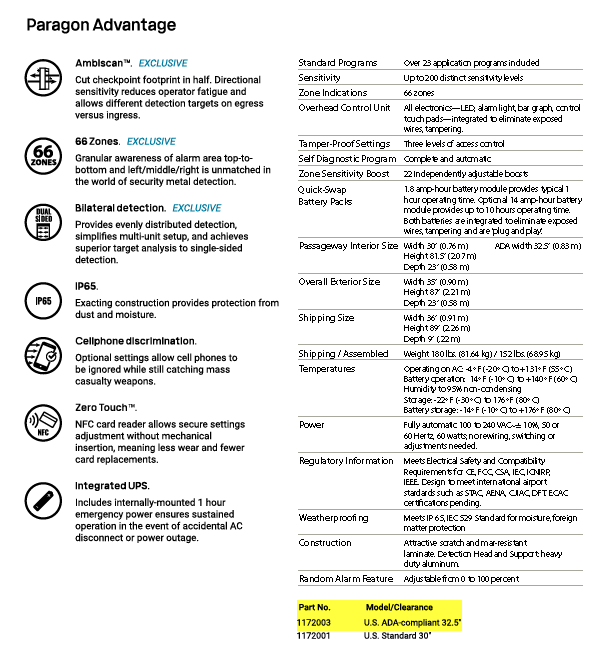

Standard Programs              Over 23 application programs included

Sensitivity              Up to 200 distinct sensitivity levels

Zone Indications   66 zones

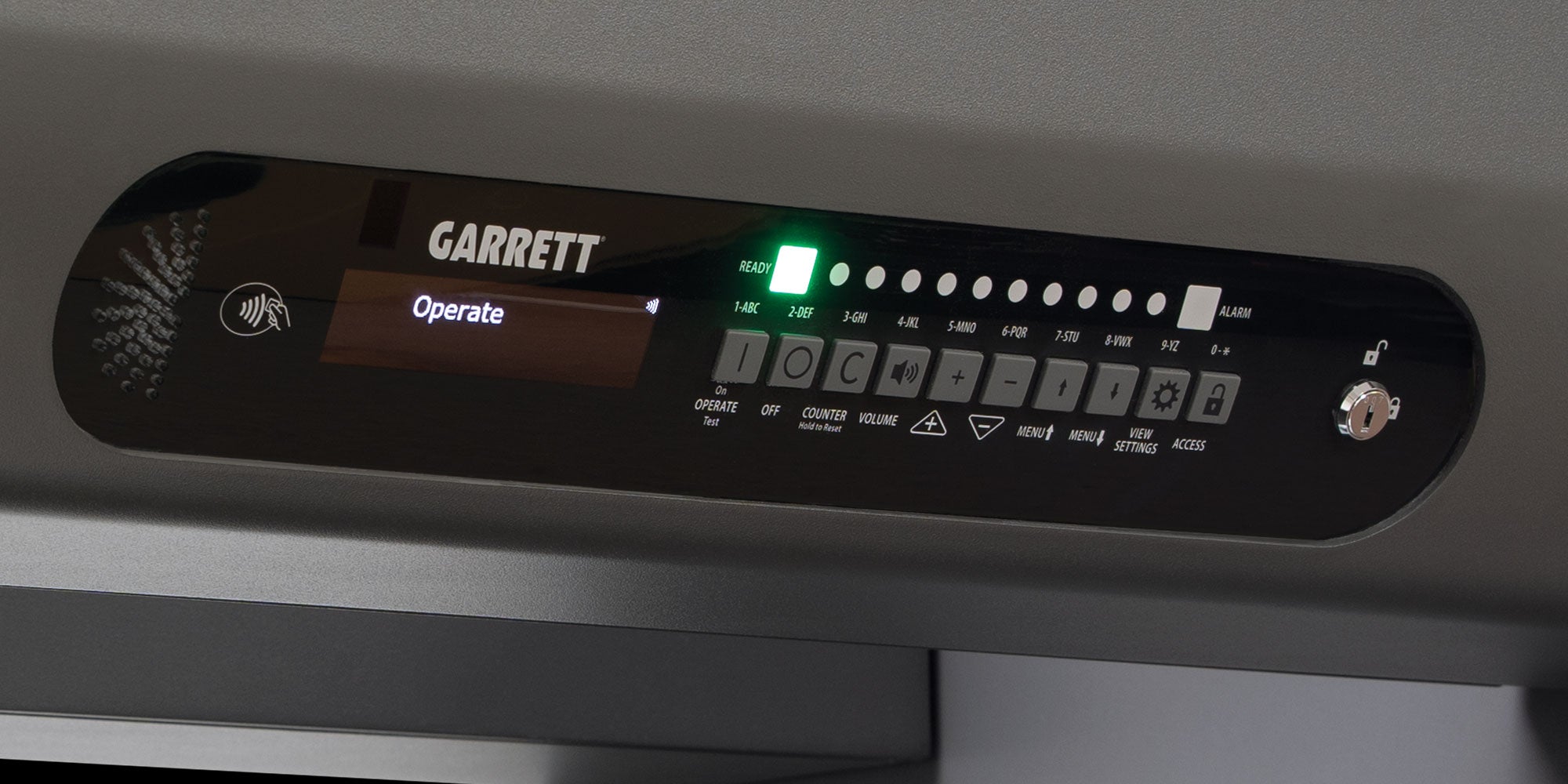

Overhead Control Unit        All electronics—LED, alarm light, bar graph, control touch pads—integrated to eliminate exposed wires, tampering.

Tamper-Proof Settings        Three levels of access control

Self Diagnostic Program     Complete and automatic

Zone Sensitivity Boost         22 Independently adjustable boosts

                1.8 amp-hour battery module provides typical 1


hour operating time. Optional 14 amp-hour battery

Battery Packs

module provides up to 10 hours operating time. Both batteries are integrated to eliminate exposed wires, tampering and are 'plug and play'.

Passageway Interior Size     Width 30" (0.76 m)              ADA width 32.5" (0.83 m) Height 81.5" (2.07 m) Depth 23" (0.58 m)

Overall Exterior Size             Width 35" (0.90 m) Height 87" (2.21 m) Depth 23" (0.58 m)

Shipping Size        Width 36" (0.91 m) Height 89" (2.26 m) Depth 9" (.22 m)

Shipping / Assembled         Weight 180 lbs. (81.64 kg) / 152 lbs. (68.95 kg)

Temperatures        Operating on AC: -4º F (-20º C) to +131º F (55º C) Battery operation:  14º F (-10º C) to +140º F (60º C) Humidity to 95% non-condensing Storage: -22º F (-30º C) to 176º F (80º C) Battery storage: -14º F (-10º C) to +176º F (80º C)

Power     Fully automatic 100 to 240 VAC~± 10%, 50 or 60 Hertz, 60 watts; no rewiring, switching or adjustments needed.

Regulatory Information       Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. Design to meet international airport stardards such as STAC, AENA, CJIAC, DFT. ECAC certifications pending.

Weatherproofing Meets IP 65, IEC 529 Standard for moisture, foreign matter protection

Construction         Attractive scratch and mar-resistant laminate. Detection Head and Support: heavy duty aluminum.

Random Alarm Feature       Adjustable from 0 to 100 percent.
