EN5000 Trace Detectors | Trace Detector

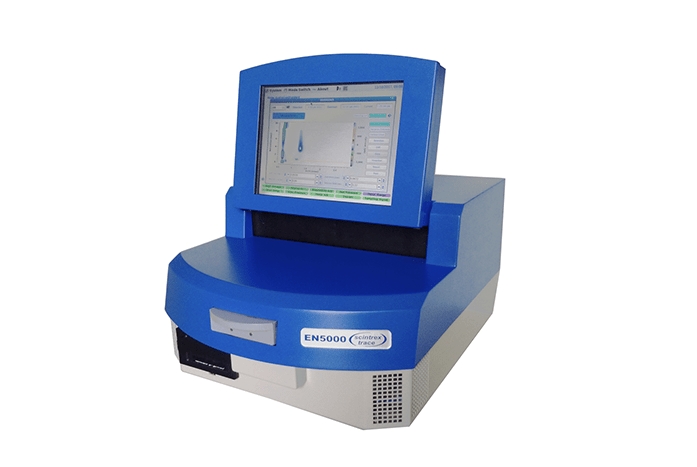

The 5000 Series desktop systems deliver fast, accurate and reliable analysis results when screening for traces of explosives or narcotics. The combination of gas chromatography and ion mobility spectrometry technology provides operators with a highly selective and sensitive system designed for high throughput environments.

Available configurations include the explosives-only detector (E5000) or the explosives or narcotics detector (EN5000). A global leader in explosives, chemical and narcotics detection, Scintrex Trace is Autoclear’s Canadian-based trace detection division. Like Autoclear’s flagship X-ray systems, these products deliver unsurpassed accuracy, speed and reliability for detecting the most dangerous and cleverly concealed threats

Simple sampling and a large color touchscreen display makes the system operator friendly, while low consumable and daily maintenance requirements keep cost of ownership low.

EN5000 Trace Detectors Features:

  • Delivers laboratory-grade accuracy to the field
  • Rapid, accurate and easy to read results in seconds
  • E5000 detects nitrogen- and peroxide-based explosive compounds
  • EN500 detects explosives or narcotics

Trace Detectors EN5000 Specification

Detector:                                 Gas chromatography-ion mobility spectrometry (GC-IMS)

Analysis Time:                        6–40 seconds (adjustable)

Explosives Detected:             PETN, RDX, TNT, NG, dynamite,

Semtex, C-4 and others (programmable)

Narcotics Detected:               Cocaine, opiates, THC, heroin,

amphetamine-type stimulants and others (programmable)

Sensitivity:                              Explosives: picogram Narcotics: nanogram

Sample Collection:                Particulates

Warm-up Time:                       Under 30 minutes from cold  start

Alarms:                                    Visual graphic and audible alarm

Power Supply:                        AC/DC 24 V

Input Voltage:                         85-264 VAC 47/63 Hz

Unit Weight:                            26.2 kg (57.8 lbs.) with power supply

Unit Dimensions:                   80.9 x 53.3 x 38.1 cm

(L x W x H)                                31.9 x 21.0 x 15.0 in.

Shipping Weight:                   45.0 kg (99.2 lbs.)

Shipping Dimensions:           67.0 x 49.0 x 69.0 cm (L x W x H)  26.4 x 19.3 x 27.2 in.

Operating Temp:                    15o to 35oC (59o to 95oF) up to 90% humidity, non-condensing

Storage Temp:                        -5o to 65oC (23o to 149oF)

Communication:                    RS-232 serial output port

Data Storage:                          35,000 retrievable data records
