AS-223

SKU:
$0.00 $0.00

Description

Enhanced Trauma Reduction. Designed to exceed the DEA/FBI Helmet Protocol.

The AS-223 Ballistic Helmet solution has been designed and developed specifically to meet the stringent requirements of the DEA / FBI and VPAM 3 test protocol within an ACH geometry. Designed to protect the most demanding users with reduced Trauma / Back-Face Deformation this custom designed helmet provides proven levels of performance and is available in regular, mid and high-cut shells, in both bolted and boltless configurations.

FEATURES

PROVEN TO DRAMATICALLY REDUCE TRAUMA generated from a ballistic hit such as a 9mm bullet

Meets GERMAN VPAM 3 BALLISTIC STANDARD; DEA/FBI 2024 Specifications, AND the U.S. NIJ LEVEL IIIA

UTILIZES THE ACH SHAPE, used and accepted by the U.S. Government and other military and law enforcement organizations worldwide

Proudly MADE IN THE USA

SYSTEM SNAPSHOT

Specification Details
Shape/Design U.S. Army ACH Geometry
Shell Construction Proprietary blend of Aramid and Composite Materials
Ballistic Protection German's VPAM 3 Specification; U.S. DEA/FBI 2024 specifications; NIJ level IIIA 0108.01/0106.01
FRAGMENT PROTECTION 17 grain V50 > 2100 f/s (640 m/s)
9MM BFD/TRAUMA Avg <8mm when tested to DOJ/DEA extended Protocol
ENVIRONMENTAL / MECHANICAL STANDARD Blunt Impact, Compression Resistance and Dynamic Strength in accordance with DOJ/DEA 2019 specifications
Certification From the German Lab of Mellrichstadt and from NTS, an NIJ certified laboratory
Available Head Sizes Small / Medium / Large / X-Large / XX-Large
Available Shell Sizes Medium / Large / X-Large
Extreme Testing Conditions Performs under temperature between 160 °F (71°C) and -60°F (-51°C); Performs after 3 hours sea water immersion
Configuration 100% Boltless (Durability Verified)
Use SWAT Teams; Law Enforcement;

Available Colors

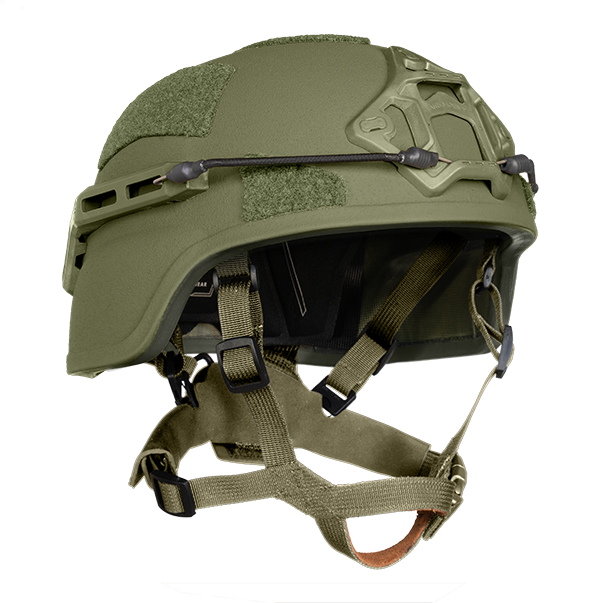

Ranger Green

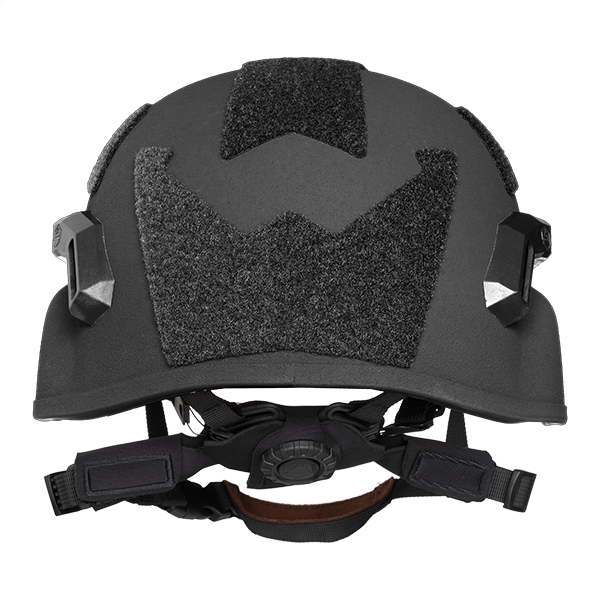

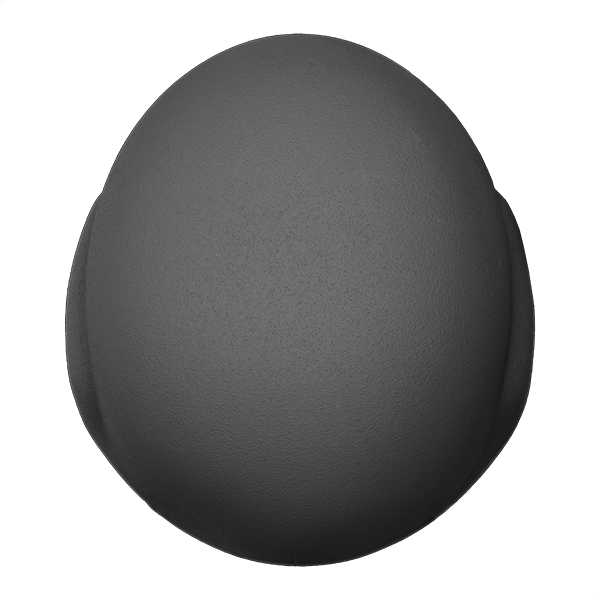

Sniper Black

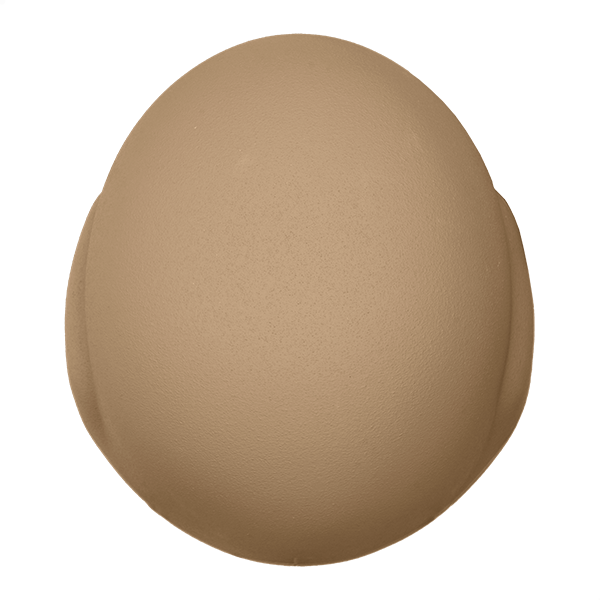

Coyote Brown

Available Cuts

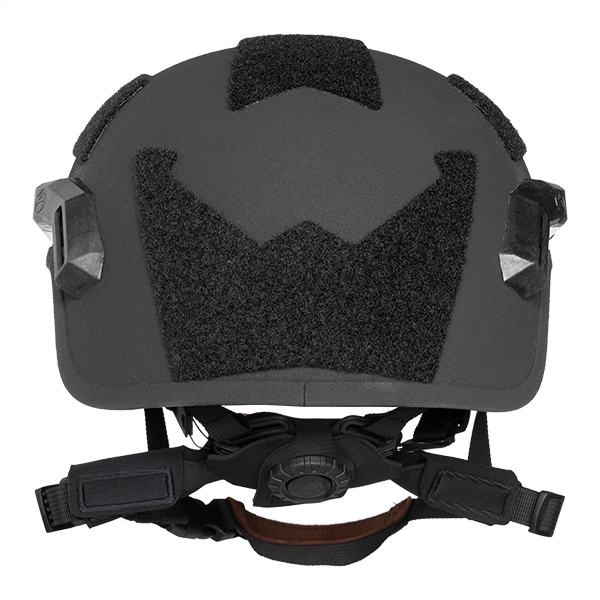

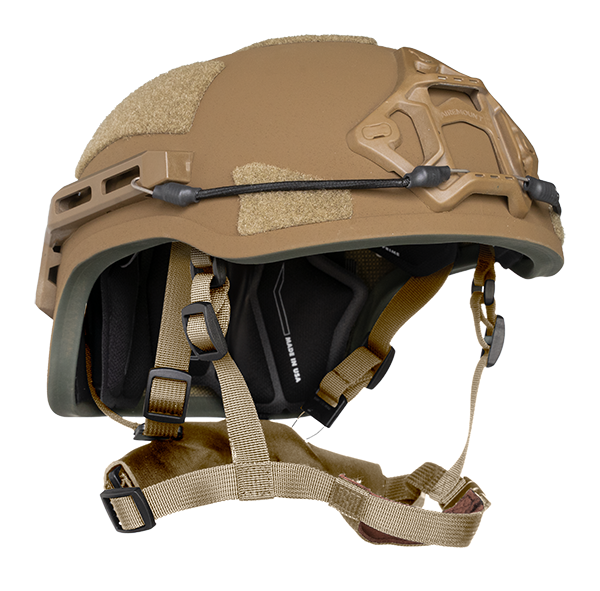

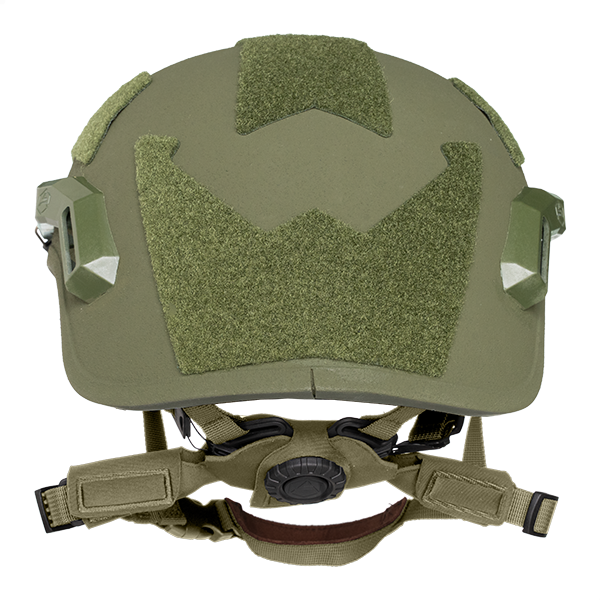

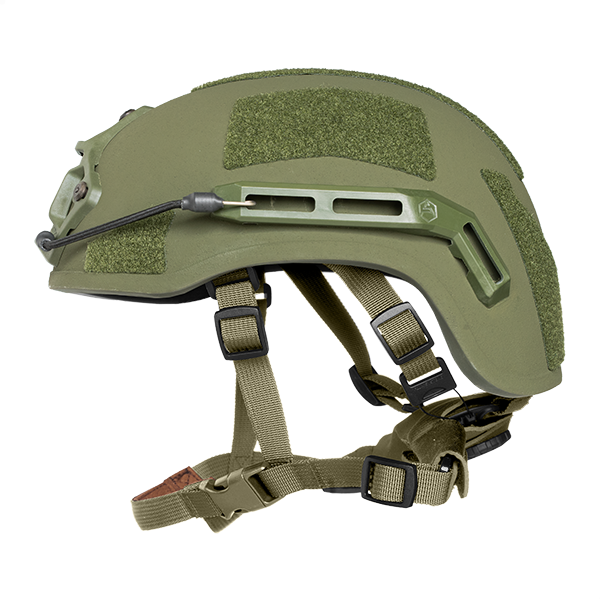

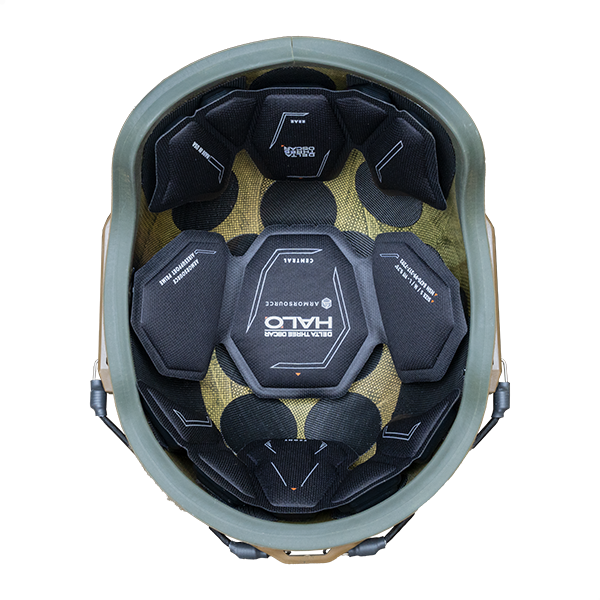

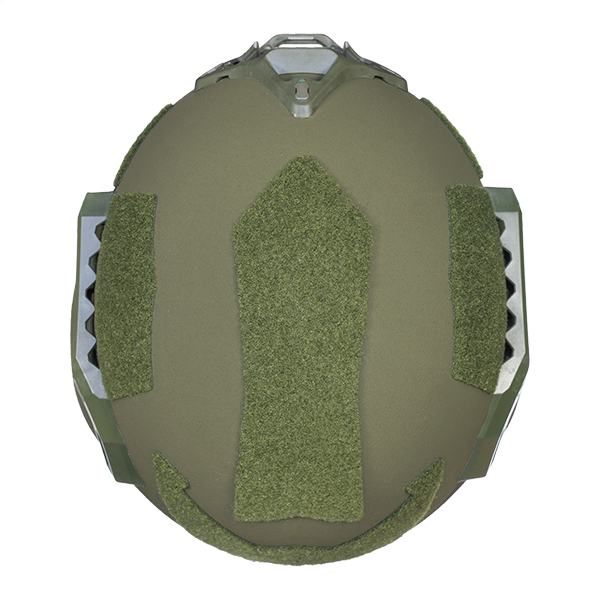

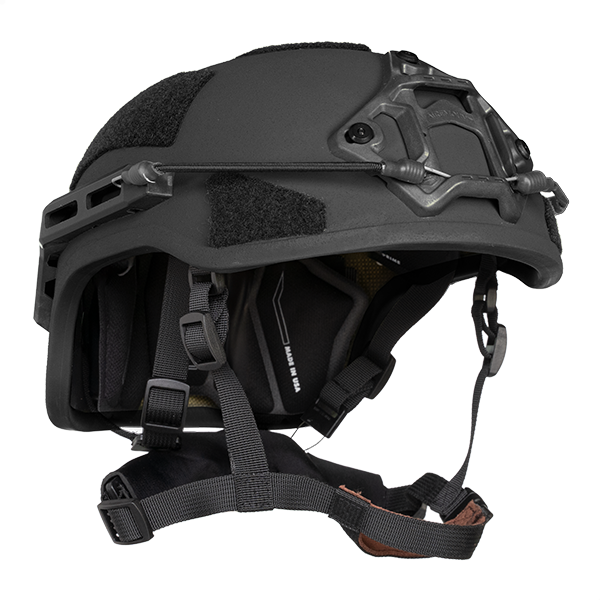

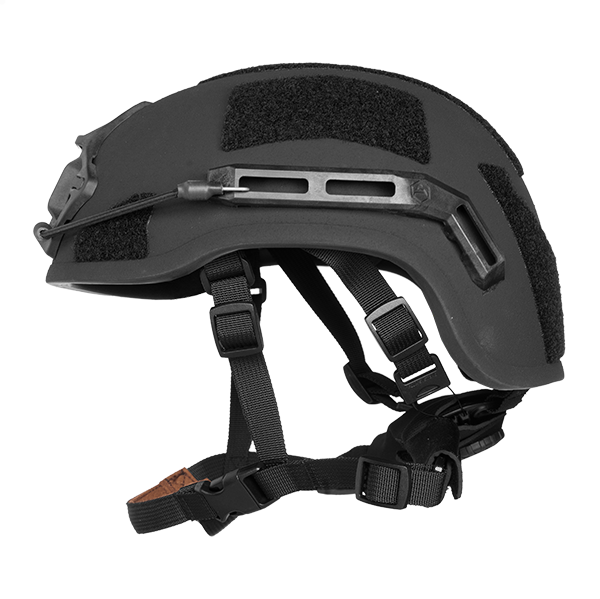

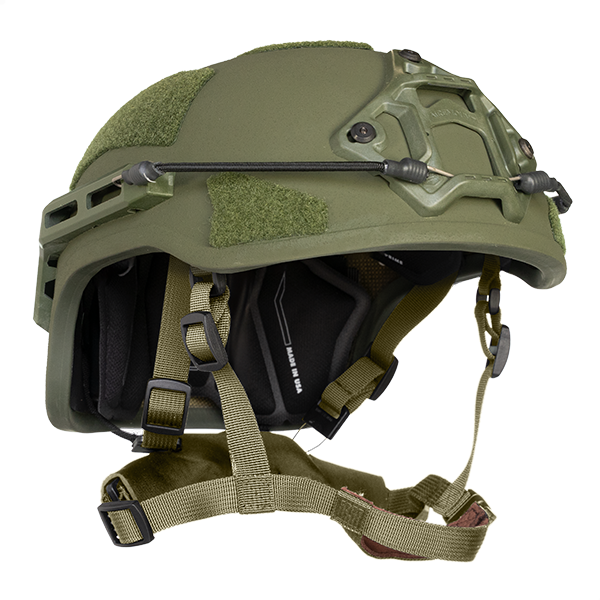

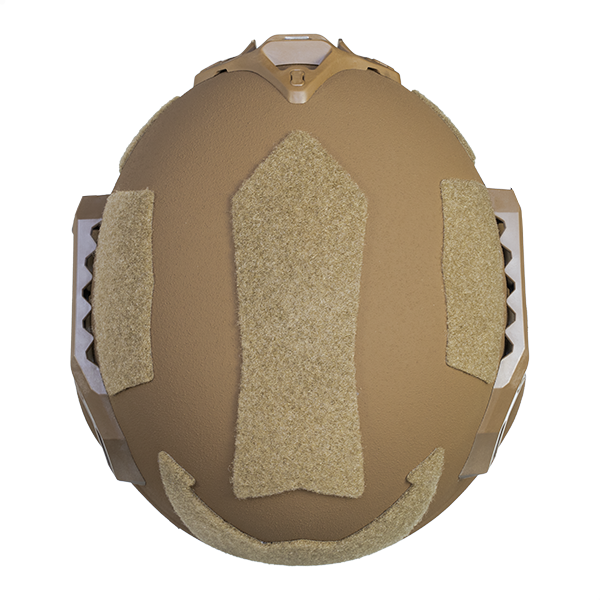

High-Cut
High-Cut

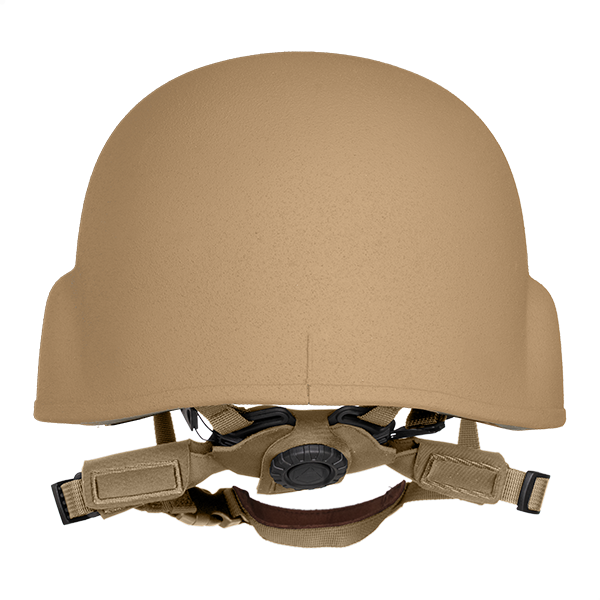

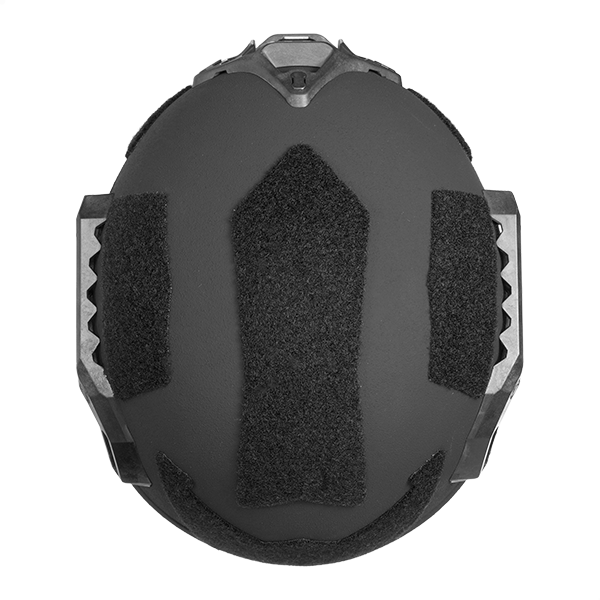

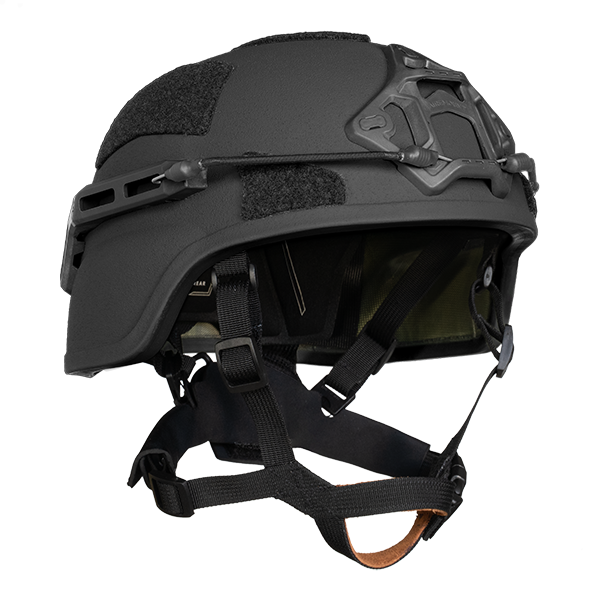

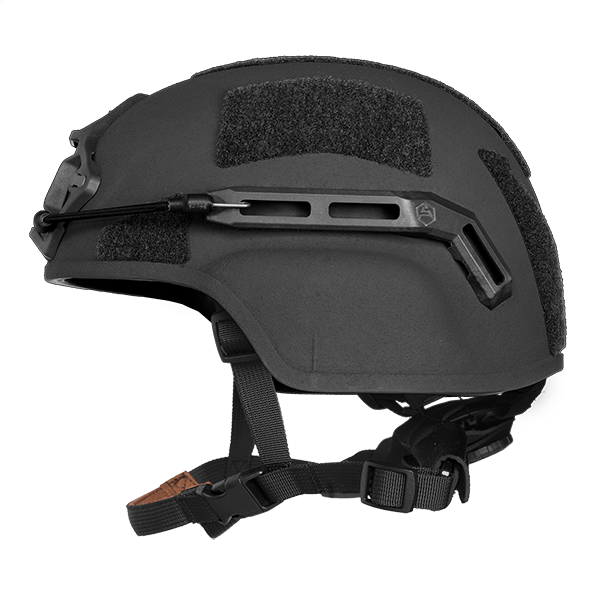

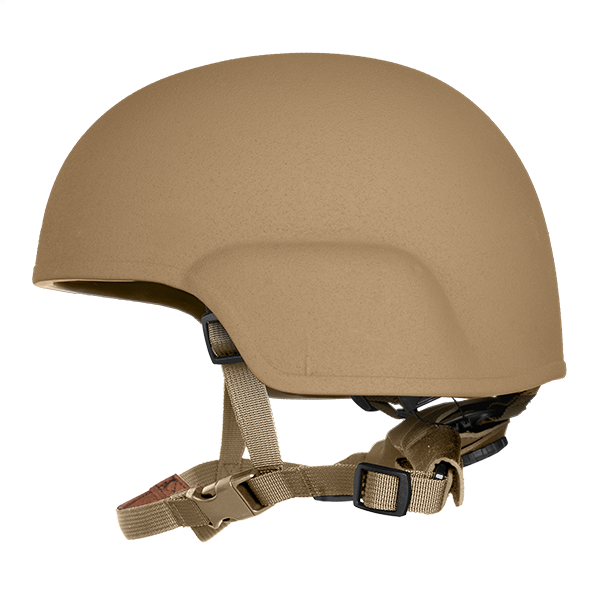

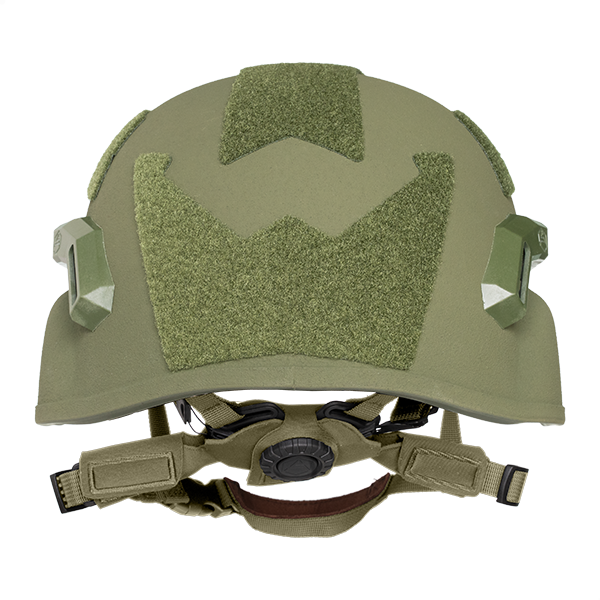

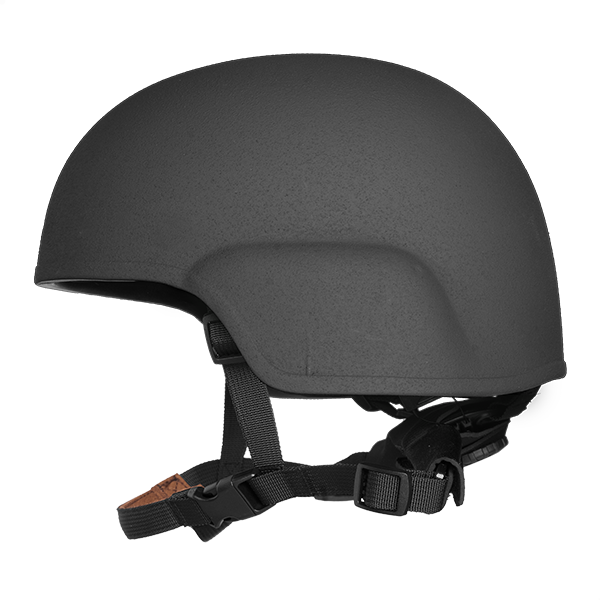

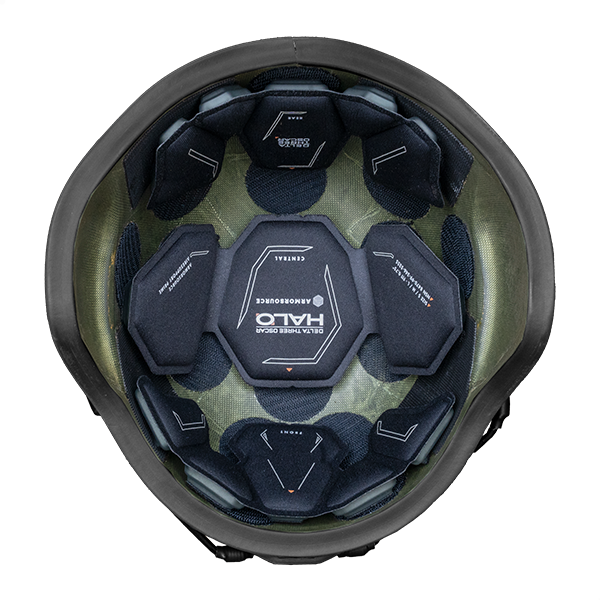

Regular-Cut
Regular-Cut

Shell Info

Shell Thickness: 0.35” (±0.1") / 9 mm (±2.5mm)

Finished Shell Nominal Weight*:

  • Medium 1.32 kg (2.9 lbs);
  • Large 1.36 kg (3 lbs);
  • X-Large 1.45 kg (3.2 lbs)

System Info

Finished Helmet Nominal Weight**:

  • Medium 1.5 kg (3.3 lbs);
  • Large 1.54 kg (3.4 lbs);
  • X-Large 1.64 kg (3.6 lbs)

Fully Loaded High-Cut Nominal Weight***:

  • Medium 1.54 kg (3.4 lbs);
  • Large 1.63 kg (3.6 lbs);
  • X-Large 1.73 kg (3.8 lbs)

* Regular-cut shell

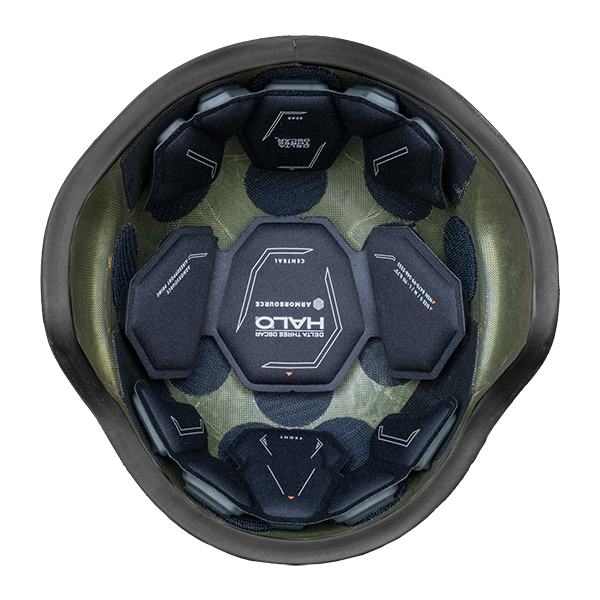

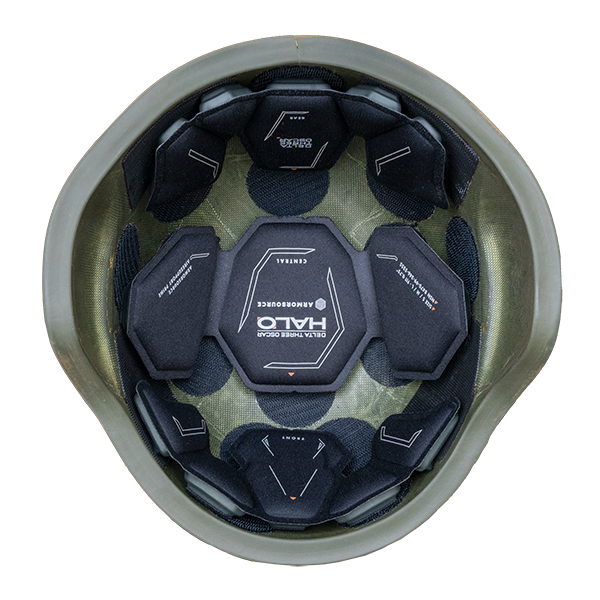

** A Regular-cut helmet installed with retention and suspension systems
*** Special Command configuration: the complete kit, with ASR side-rails, NVG Shroud and Operational Loop System

System Capabilities Checklist

BALLISTIC PERFORMANCE*
DEA/FBI Specs (2024) ✔️
NIJ LEVEL IIIA ✔️
FRAGMENTATION PROTECTION ✔️
BFD / TRAUMA ✔️
German VPAM 3 Specs ✔️
ENVIRONMENTAL PERFORMANCE
BLUNT IMPACT ✔️
COMPRESSION RESISTANCE ✔️
DYNAMIC STRENGTH ✔️
ADVANCED BOLTLESS ADHESIVE SYSTEM ✔️
COMPATIBILITY & ADD-ONS*
UNIVERSAL SIDE-RAILS ✔️
NVG MOUNT ✔️
OPERATIONAL LOOP SYSTEM ✔️
COUNTERWEIGHT ✔️
CAMOUFLAGE COVER ✔️
STRAP EXTENDERS ✔️
VISOR / GOGGLES ✔️
COMMUNICATIONS / EAR PROTECTION ✔️
GAS MASK ✔️
CARRYING BAG ✔️

* In accordance with ArmorSource technical specifications and applicable standards

How to Fit Your Helmet

* In accordance with ArmorSource technical specifications and applicable standards

Head Length

HEAD LENGTH

Head Width

HEAD WIDTH

Circumference

CIRCUMFERENCE

Measure completely around head

HELMET SIZE HEAD LENGTH HEAD WIDTH CIRCUMFERENCE
Small UP TO 7¼" / 184 mm UP TO 6½" / 162 mm UP TO 21¼" / 538 mm
Medium 7¼" / 184 mm to 7¾" / 198 mm UP TO 6½" / 162 mm 21¼" / 538 mm to 22½" / 573 mm
Large 7¾" / 198 mm to 8¼" / 210 mm UP TO 6½" / 162 mm 22½" / 573 mm to 23½" / 597 mm
Extra-Large 8¼" / 210 mm and over 6½" / 162 mm and over 23½" / 597 mm and over
AS-223 - Specification Sheet Download PDF
AS-223 - Specification Sheet Download PDF
