Aire II
Description
U.S. ARMY NEXT GENERATION ADVANCED COMBAT HELMET. THE LIGHTEST IN THE FIELD.
Proudly introducing the next generation of ballistic head protection. The ArmorSource Aire II Helmet solution is the lightest version of the U.S. Army Advanced Combat Helmet (ACH / LWACH) on the market. Designed to minimize weight burden, the Aire II has effectively reduced the weight of the traditional ACH helmet by more than 30% and that of LW-ACH helmets by more than 15%. All while exceeding the ballistic protection of the Lightweight ACH category as a whole, thanks to our proprietary materials and superior development capabilities.
FEATURES
PROVIDES EXTREMELY HIGH BALLISTIC PROTECTION against a wide spectrum of small fragments as well as handgun projectiles

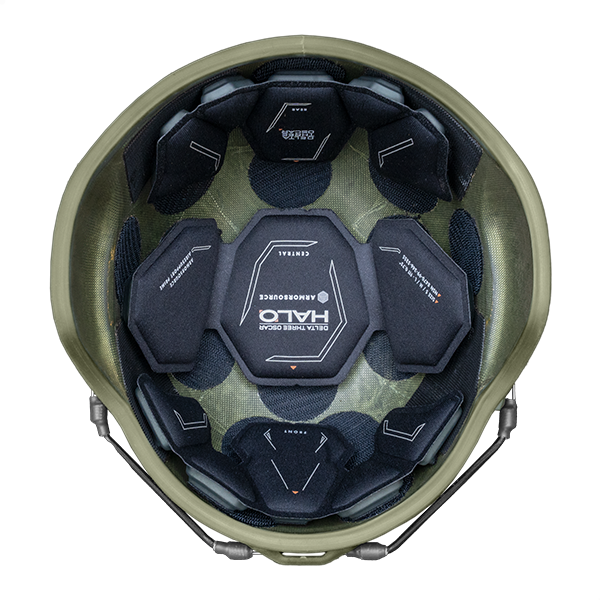

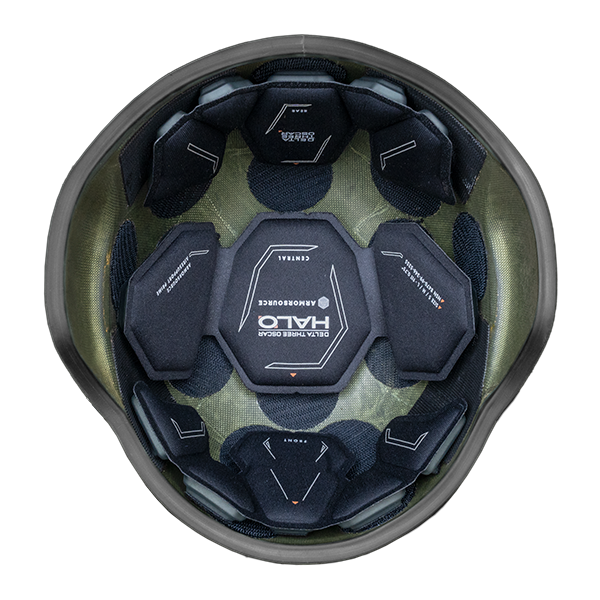

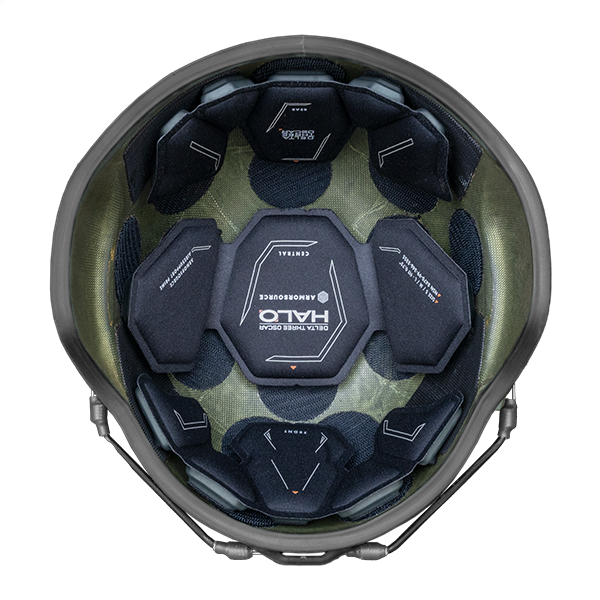

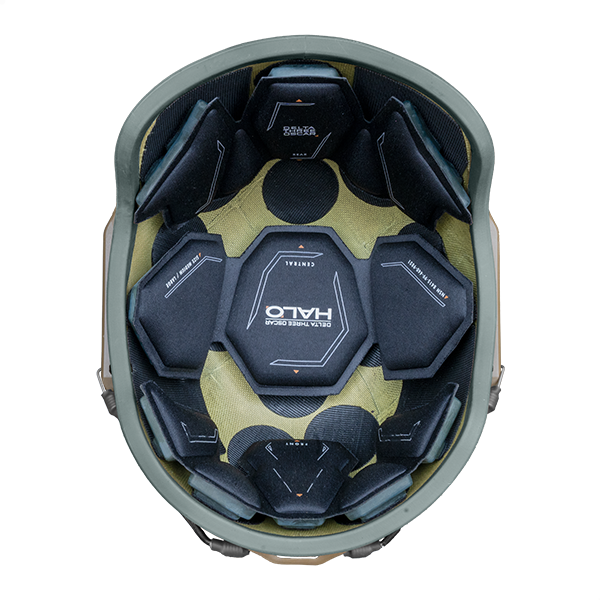

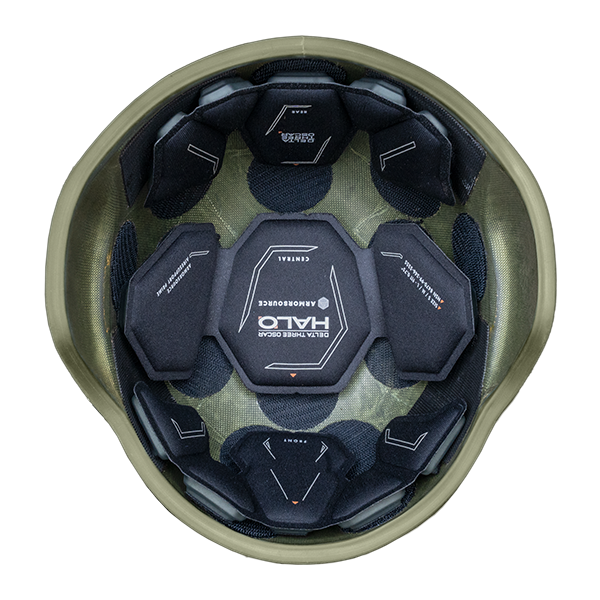

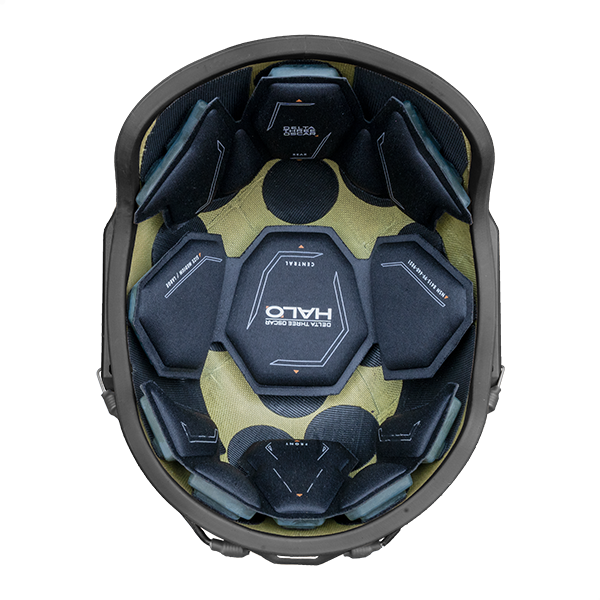

EXTREMELY COMFORTABLE due to its light weight and flexible pad system
Utilizes INDUSTRY LEADING BALLISTIC TECHNOLOGY
UTILIZES THE ACH/MICH SHAPE used and accepted by the United States and other military organizations worldwide
COMPATIBLE WITH ALL ACH accessories and devices
Proudly MADE IN THE USA
SYSTEM SNAPSHOT
| Specification | Details |
|---|---|
| Shape/Design | U.S. Army ACH Geometry |
| Shell Construction | Proprietary blend of Aramid and Composite Materials |
| Ballistic Protection | AR/PD 14-01; NIJ level IIIA |
| FRAGMENT PROTECTION | 17 grain V50 > 2400 f/s (732m/s) in accordance with AR/PD 14-01 |
| 9MM BFD/TRAUMA | 9-mm RTP/BFD < 1” average |
| ENVIRONMENTAL / MECHANICAL STANDARD | U.S. Army AR/PD 14-01 |
| Certification | From an NIJ certified laboratory |
| Available Head Sizes | X-Small / Small / Medium / Large / X-Large / XX-Large |
| Available Shell Sizes | Small / Medium / Large / X-Large |
| Extreme Testing Conditions | Performs under temperature between 160 °F (71°C) and -60°F (-51°C); Performs after 3 hours sea water immersion |
| Configuration | 100% Boltless (Durability Verified) |
| Use | Law Enforcement; Patrol Units |

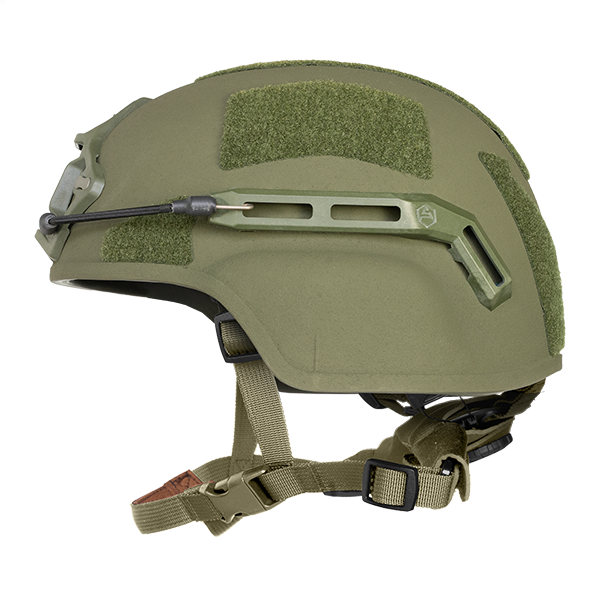

Available Colors
Available Cuts

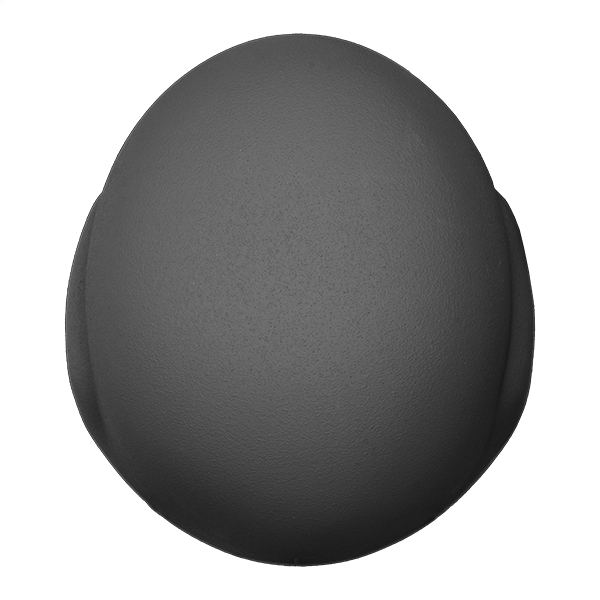

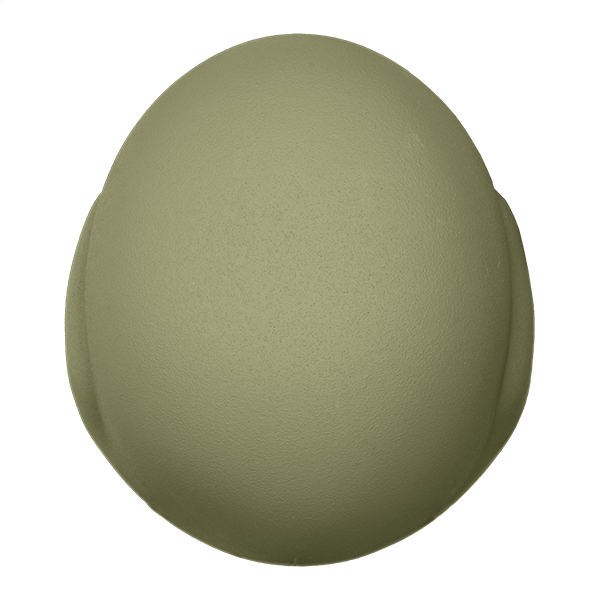

Shell Info
Shell Thickness: 0.3” (±0.1”) / 8 mm (±2.5mm)
Finished Shell Nominal Weight*:
- Medium 0.76 kg (1.7 lbs)
- Large 0.8 kg(1.8 lbs);
- X-Large 0.87 kg (1.9 lbs)
NOMINAL SURFACE AREA* M - 1,037 cm² (161 in²); L - 1,081 cm² (168 in²); XL - 1,208 cm² (187 in²)
NOMINAL AREAL DENSITY 7.2 kg/m² (1.58 lbs/ft²)
System Info

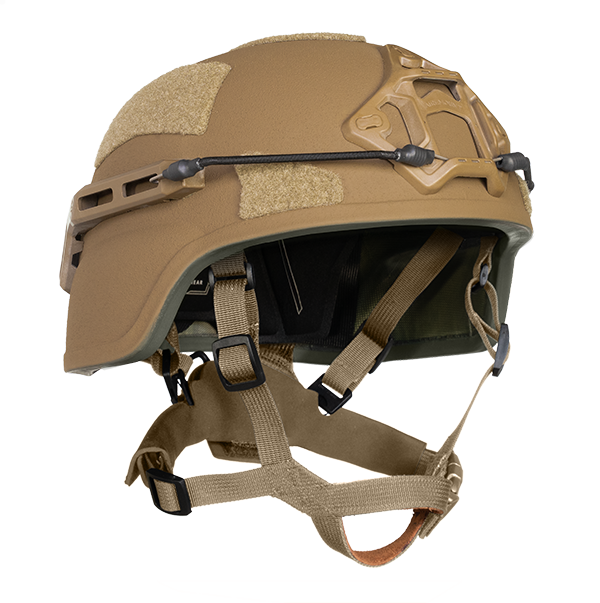

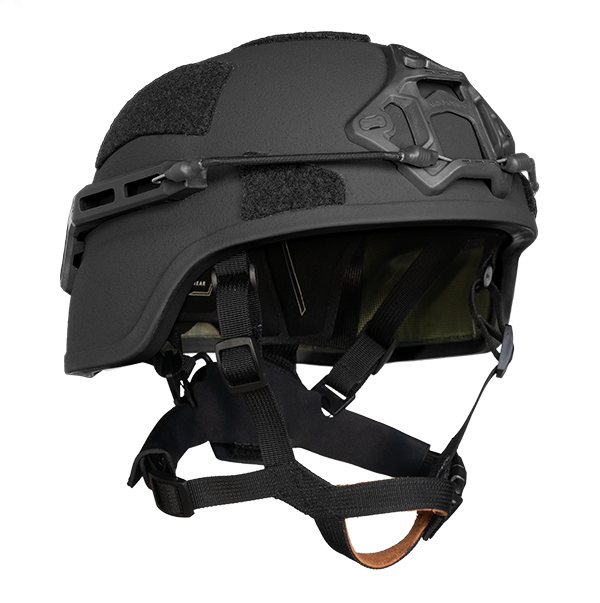

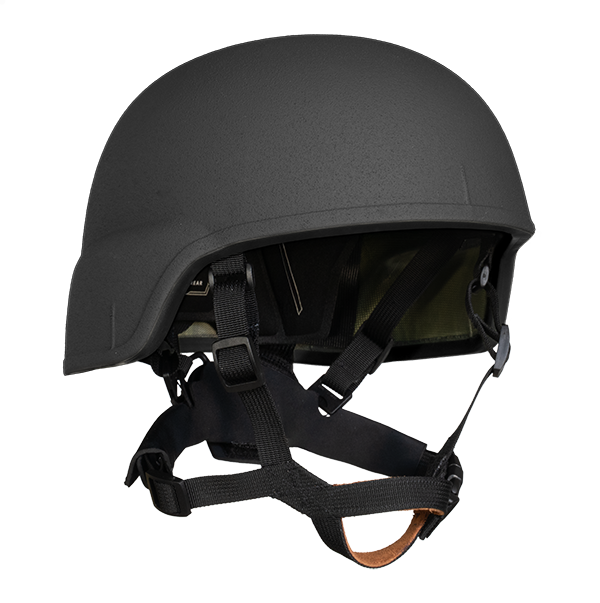

Finished Helmet Nominal Weight**:
- Medium 1.02 kg (2.2 lbs);
- Large 1.08 kg (2.4 lbs);
- X-Large 1.13 kg (2.5 lbs)

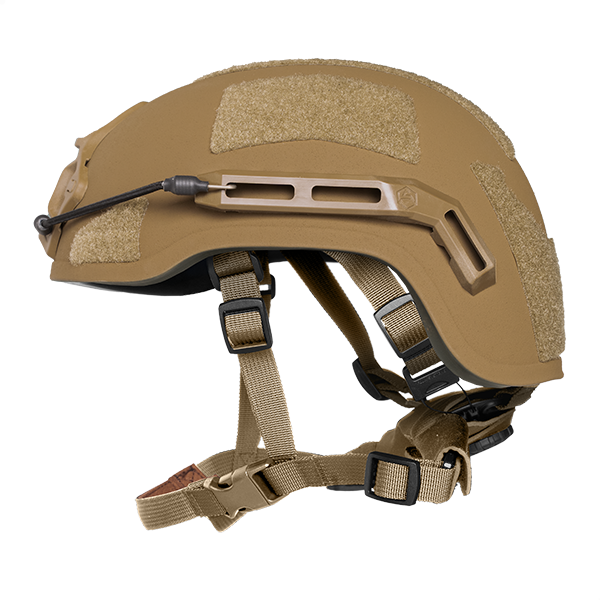

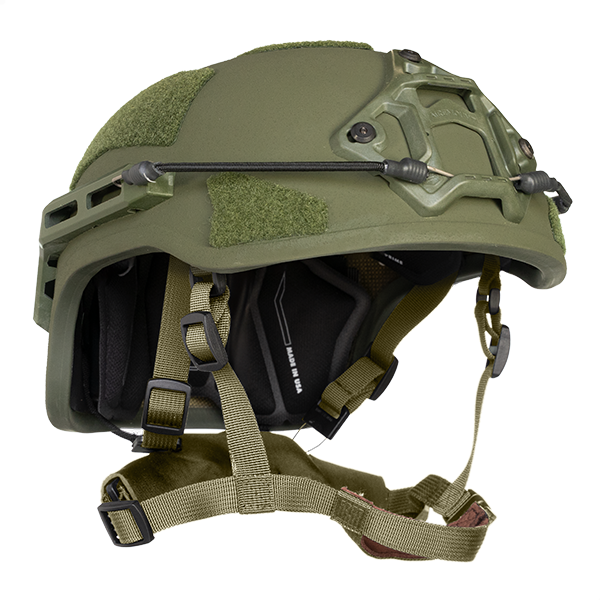

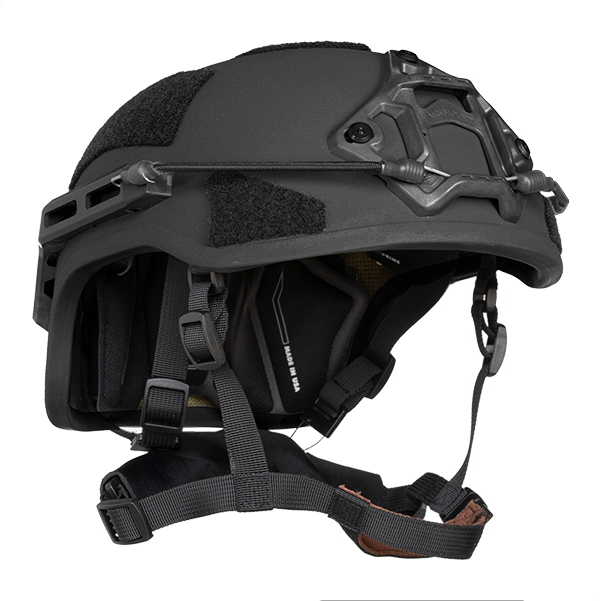

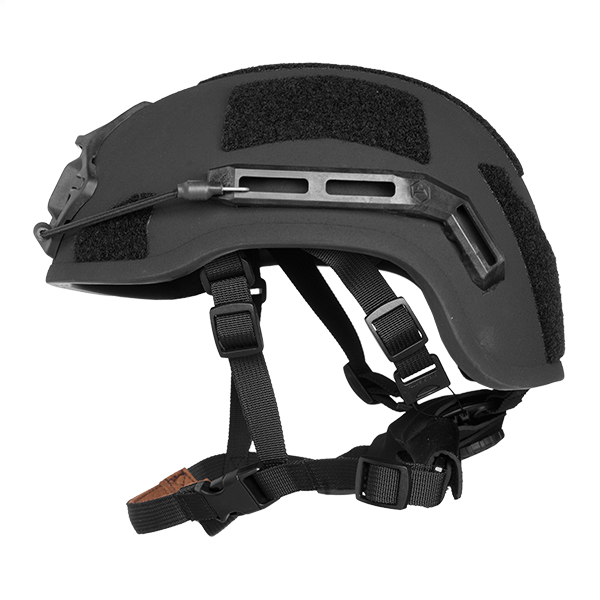

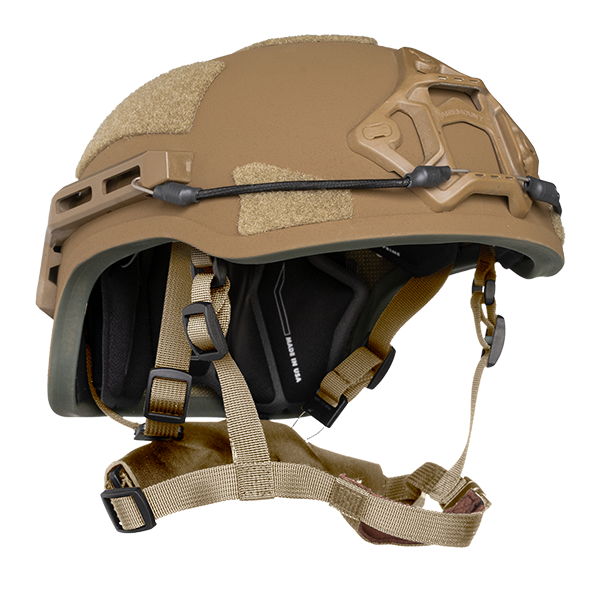

Fully Loaded High-Cut Nominal Weight***:
- Medium 1.11 kg (2.4 lbs);
- Large 1.17 kg(2.6 lbs);
- X-Large 1.21 kg (2.7 lbs)
* Regular-cut shell
** A Regular-cut helmet installed with retention and suspension systems
*** Special Command configuration: the complete kit, with ASR side-rails, NVG Shroud and Operational Loop System
System Capabilities Checklist
* In accordance with ArmorSource technical specifications and applicable standards
How to Fit Your Helmet
* In accordance with ArmorSource technical specifications and applicable standards
HEAD LENGTH
HEAD WIDTH
CIRCUMFERENCE
Measure completely around head
| HELMET SIZE | HEAD LENGTH | HEAD WIDTH | CIRCUMFERENCE |
|---|---|---|---|
| Small | UP TO 7¼" / 184 mm | UP TO 6½" / 162 mm | UP TO 21¼" / 538 mm |
| Medium | 7¼" / 184 mm to 7¾" / 198 mm | UP TO 6½" / 162 mm | 21¼" / 538 mm to 22½" / 573 mm |
| Large | 7¾" / 198 mm to 8¼" / 210 mm | UP TO 6½" / 162 mm | 22½" / 573 mm to 23½" / 597 mm |
| Extra-Large | 8¼" / 210 mm and over | 6½" / 162 mm and over | 23½" / 597 mm and over |
