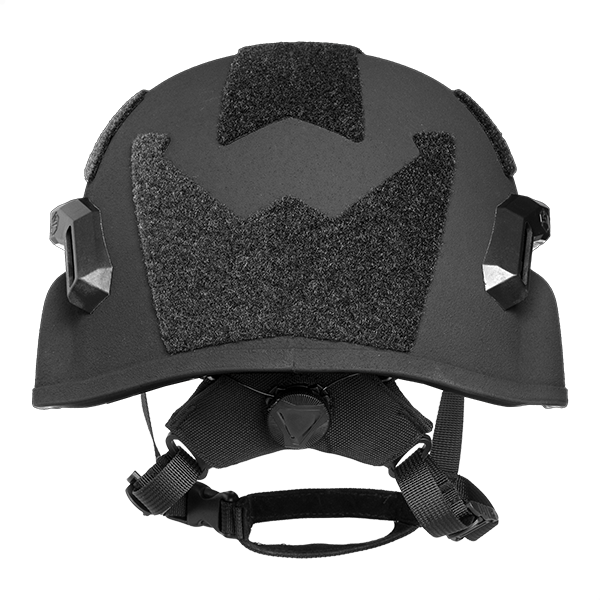

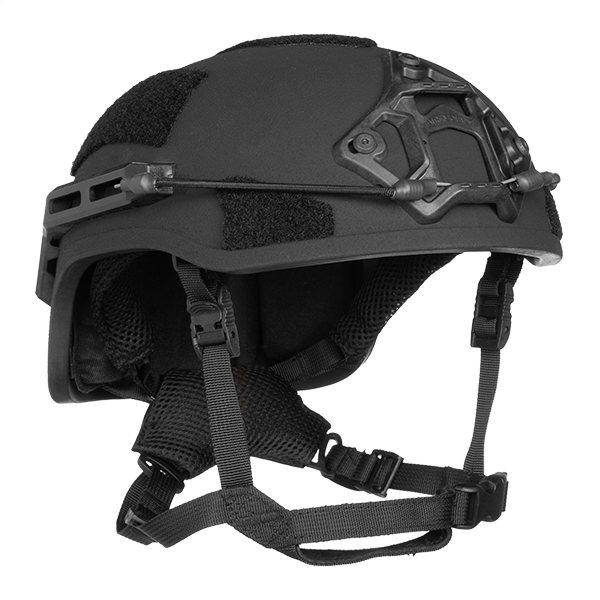

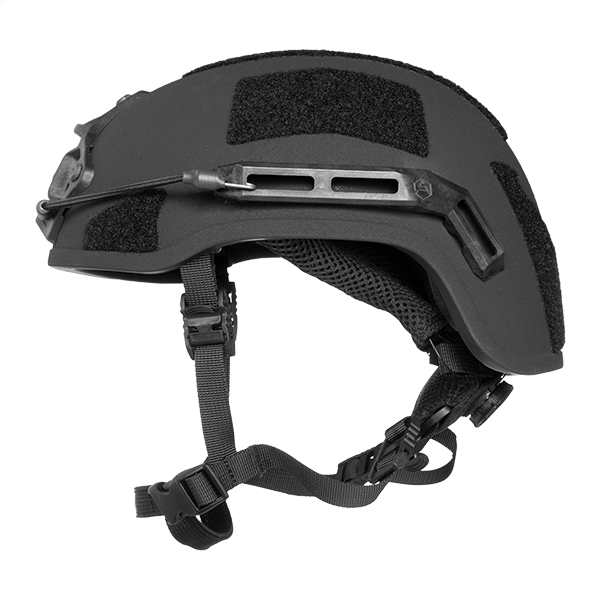

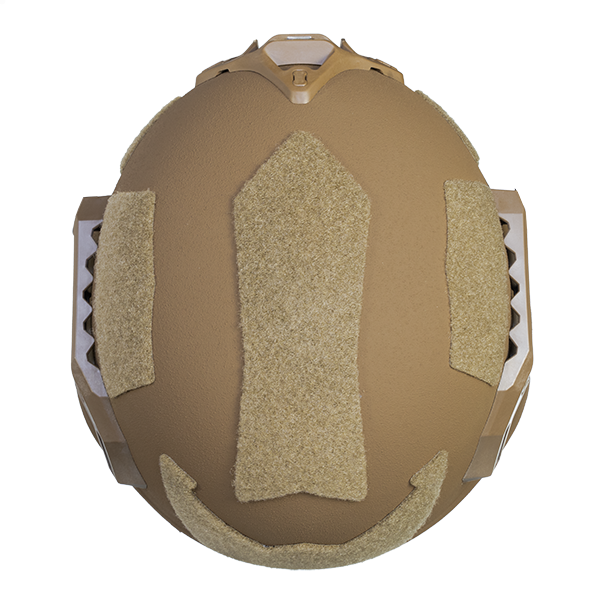

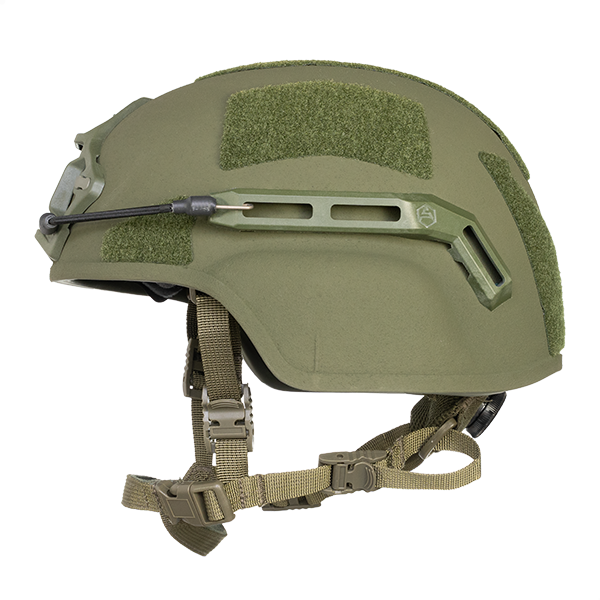

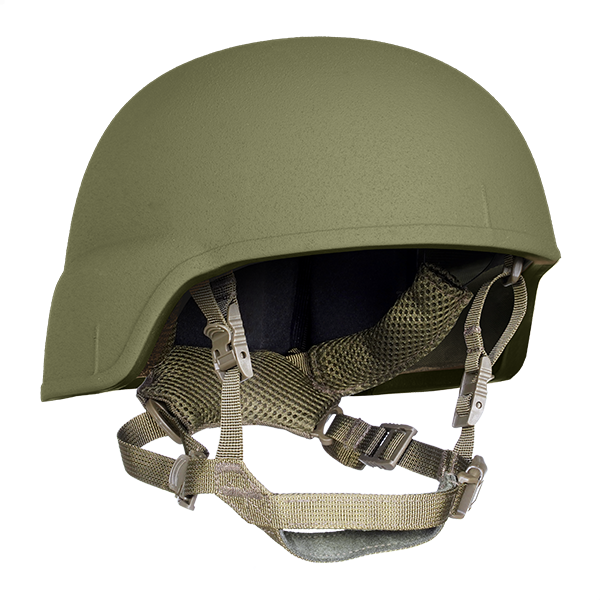

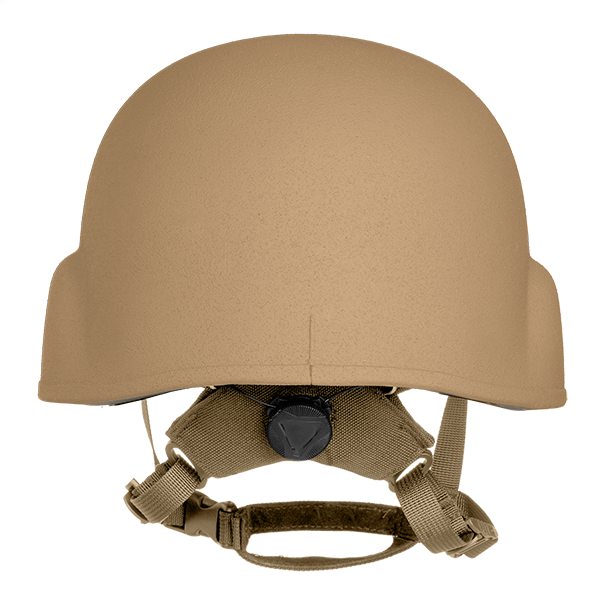

Aire LE
Description
AFFORDABILITY, RELIABILITY, CAPABILITY. TACTICAL BALLISTIC HELMET FOR MILITARY USE.
The Aire LE is designed to meet or exceed modern day Law Enforcement needs. With the most demanding users in mind, this Ultra-Lightweight Ballistic Helmet is an innovative, highly dependable and extremely comfortable solution for SWAT teams, National Guard and Patrol units. Featuring a high performance, lightweight PE based shell the Aire LE defeats a wide range of common handgun bullets and blunt force impact, making it the ideal helmet for operators serving in high threat scenarios.
FEATURES
PROVIDES HIGH PROTECTION against a wide range of handgun rounds
PROVIDES PROTECTION FROM SELECT MECHANICAL THREATS

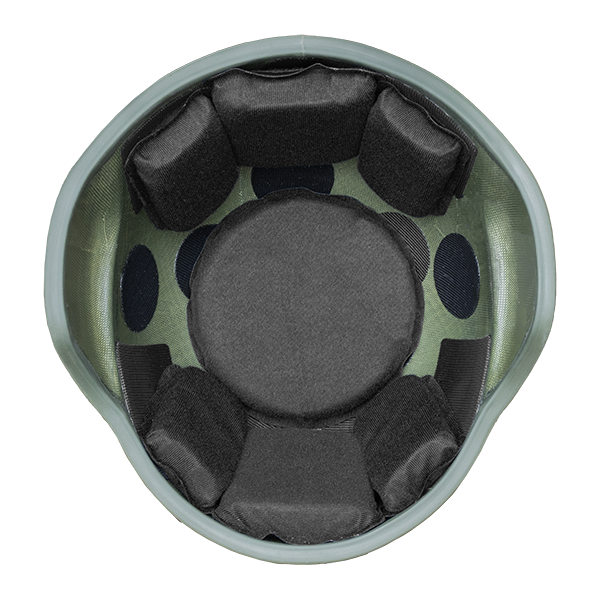

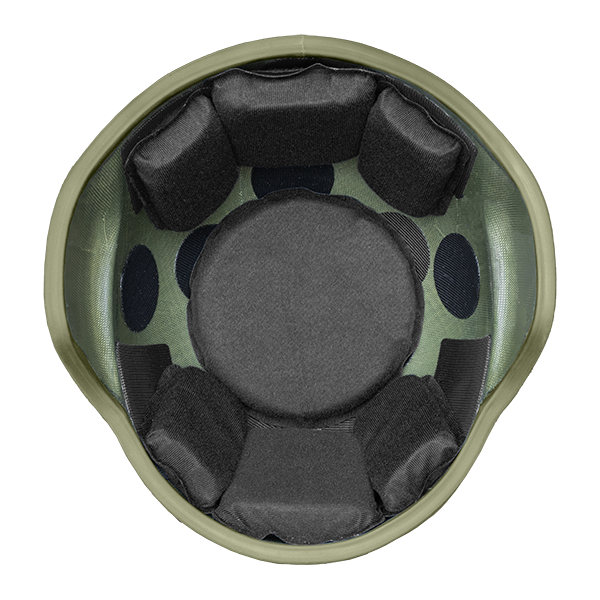

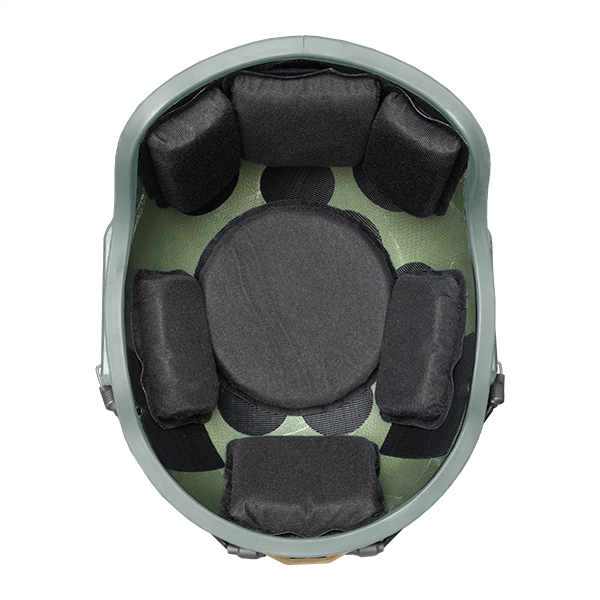

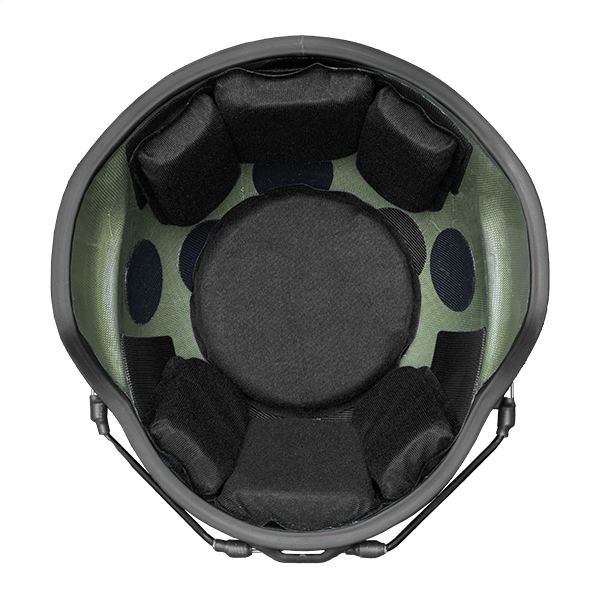

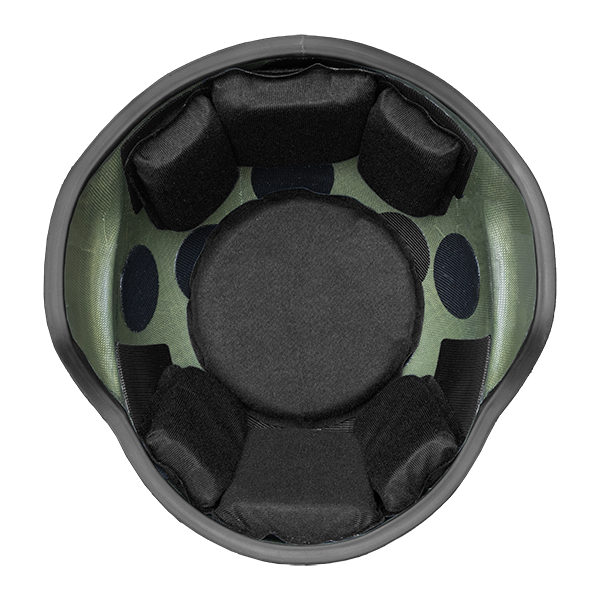

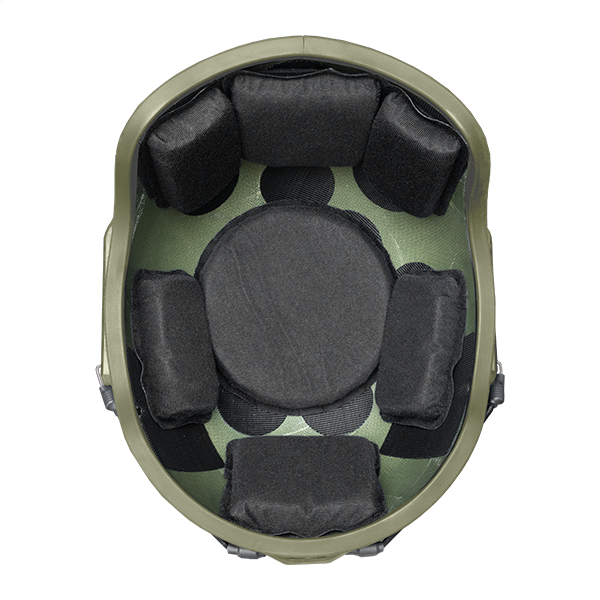

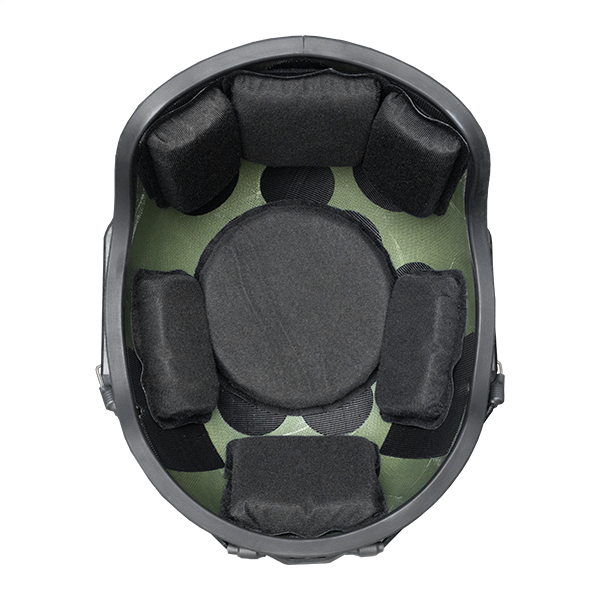

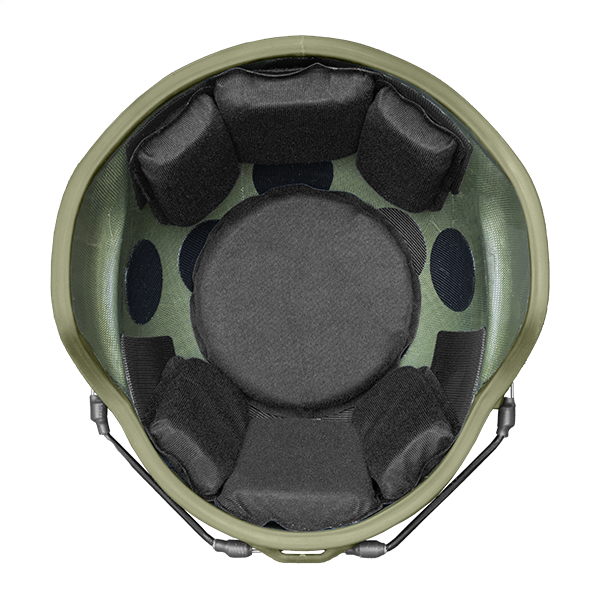

EXTREMELY COMFORTABLE due to its new ergonomic design, reduced weight and flexible pad system
FEATURES THE LATEST BOLTLESS BALLISTIC TECHNOLOGY available in the industry
UTILIZES THE ACH/MICH SHAPE used and accepted by the United States and other military organizations worldwide
Proudly MADE IN THE USA (Berry Amendment Compliant)
SYSTEM SNAPSHOT
| Specification | Details |
|---|---|
| Shape/Design | U.S. Army ACH Geometry |
| Shell Construction | Proprietary blend of Aramid and Composite Materials |
| Ballistic Protection | NIJ IIIA (9mm FMJ and .44 mag SJHP at 1,400 ± 30 fps) 9mm FMJ BFD < 25mm when impacted at 1,400 ± 30 fps FN 5.7x28mm, 27gr SS195 LFHP @ 2,000 ± 30 fps FN 5.7x28mm, 40gr SS197SR @ 1,790 ± 30 fps.45 ACP, 230gr FMJ @ 1,075 ± 25 fps.40-cal., 180gr GDHP @ 1,055 ± 30 fps 7.62x25mm, Tokarev SJLC @ 1,550 ± 30 fps |
| 9MM BFD/TRAUMA | 9-mm RTP/BFD < 1” average |
| ENVIRONMENTAL / MECHANICAL STANDARD | Compression Resistance in accordance with U.S. Army AR/PD 14-01 |
| Certification | From an NIJ certified laboratory |
| Available Head Sizes | Small / Medium / Large / X-Large / XX-Large |
| Available Shell Sizes | Small / Medium / Large / X-Large |
| Extreme Testing Conditions | Performs under temperature between 160 °F (71°C) and -60°F (-51°C); Performs after 3 hours sea water immersion |
| Configuration | 100% Boltless (Durability Verified) |
| Use | Law Enforcement; Patrol Units |
Available Colors
Available Cuts

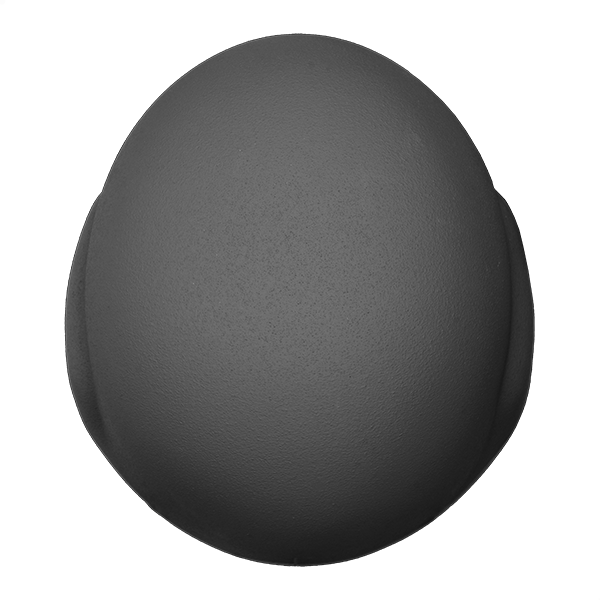

Shell Info
Shell Thickness: 0.3” (±0.1”) / 8 mm (±2.5mm)
Finished Shell Nominal Weight*:
- Medium 0.76 kg (1.7 lbs)
- Large 0.8 kg(1.8 lbs);
- X-Large 0.87 kg (1.9 lbs)
System Info
Finished Helmet Nominal Weight**:
- Medium 0.96 kg (2.1 lbs);
- ; Large 1.0 kg(2.1 lbs);
- X-Large 1.07 kg (2.3 lbs)

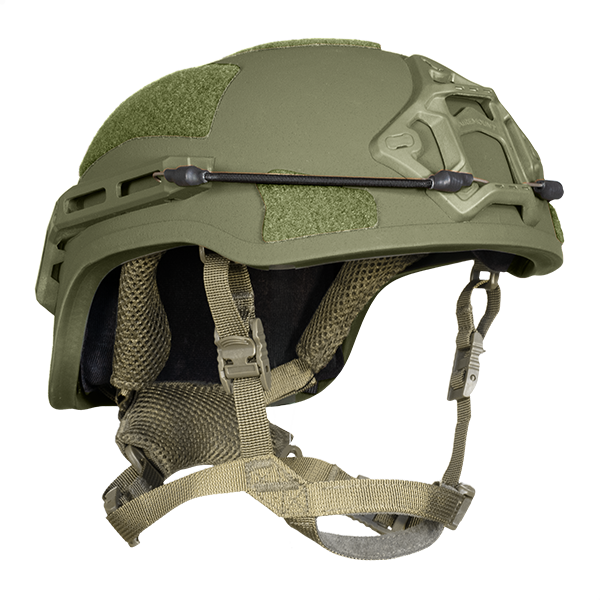

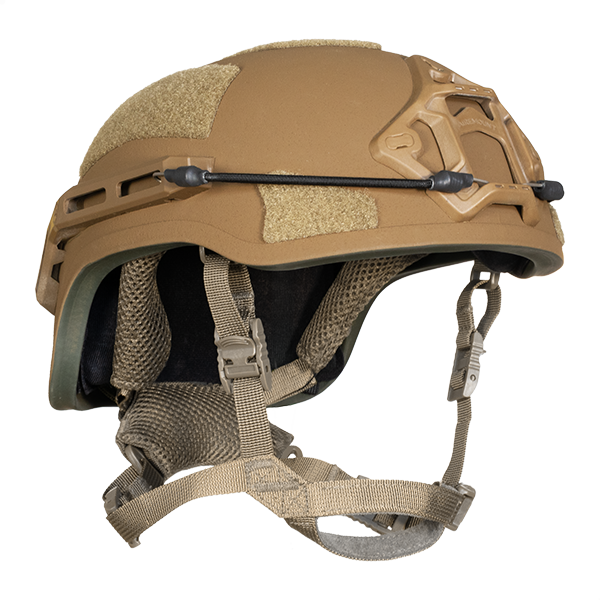

Fully Loaded High-Cut Nominal Weight***:
- Medium 1.16 kg (2.5 lbs);
- Large 1.21 kg(2.7 lbs);
- X-Large 1.28 kg (2.8 lbs)

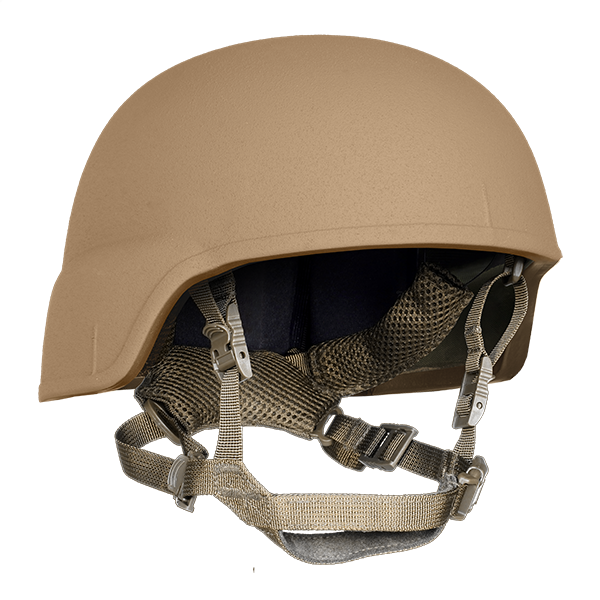

* Regular-cut shell
** A Regular-cut helmet installed with retention and suspension systems
*** Special Command configuration: the complete kit, with ASR side-rails, NVG Shroud and Operational Loop System
System Capabilities Checklist
* In accordance with ArmorSource technical specifications and applicable standards
How to Fit Your Helmet
Getting the right fit is important for performance and comfort. Use a tape measure and caliper to take measurements. The wearer MUST be seated in an upright position for proper fitting. See the illustrations for correct measuring points.
NOTE: If any measurement falls on the dividing line between sizes, select the larger size.
HEAD LENGTH
HEAD WIDTH
CIRCUMFERENCE
Measure completely around head
| HELMET SIZE | HEAD LENGTH | HEAD WIDTH | CIRCUMFERENCE |
|---|---|---|---|
| Small | UP TO 7¼" / 184 mm | UP TO 6½" / 162 mm | UP TO 21¼" / 538 mm |
| Medium | 7¼" / 184 mm to 7¾" / 198 mm | UP TO 6½" / 162 mm | 21¼" / 538 mm to 22½" / 573 mm |
| Large | 7¾" / 198 mm to 8¼" / 210 mm | UP TO 6½" / 162 mm | 22½" / 573 mm to 23½" / 597 mm |
| Extra-Large | 8¼" / 210 mm and over | 6½" / 162 mm and over | 23½" / 597 mm and over |
