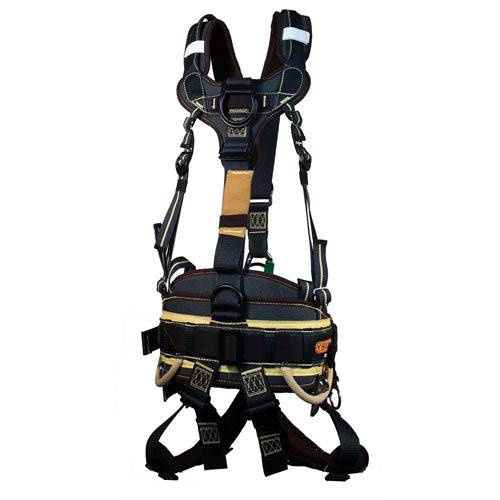

Yates Gear 390KC Kevlarr Tower Construction Welding Harness
Construction Harness, Fall Protection Gear with Kevlaar Webbings.
Yates designed the 390KC Kevlar Construction Harness for applications where the worker is suspended while welding, torch cutting or heavy grinding applications. Designed simular to 390FRC harness but made entirely from 100% Kevlarr® webbings. Padding on the harness is covered with CarbonX fire and spark resistant fabric. Cobra quick connect buckles are on the waist portion of the harness, an ANSI compliant carabiner to attach chest to seat, and diagonal rear support webbing to distribute the load from chest through shoulders and down to the waist belt over the hips. Chest portion of harness specifically designed with U shape for tower access work and is tailored to reduce chafing of the neck. Specially designed for the professional tower, construction or maintenance worker who needs a harness to meet the needs of a worker who is now utilizing rope access techniques. Wide anatomical waist pad for increased comfort and added back support. Modular work/tool pouch system allows the user to customize each harness to their own arrangement. Easily adjustable for variations in clothing by use of camlock and cobra buckles. Attachment points at waist, hips, chest, back (lumbar) and back (dorsal). Extra large side positioning rings (lineman style) allow the user to easily make connections to safety belt. Cobra quick connect buckles on the waist portion of the harness, ANSI carabiner to attach chest to seat, diagonal rear support webbing to distribute the load from chest threw shoulder and down to the waist belt over the hips. Constructed from webbing which is 100% Kevlar to eliminate damage by sparking and slag during cutting, grinding and welding applications. Modular work/tool pouch system allows the user to customize each harness to their own arrangement. Easily adjustable for variations in clothing by use of camlock and cobra buckles. Attachment points at waist, hips, chest, back (lumbar) and back (dorsal). Extra large side positioning rings (lineman style) allow the user to easily make connections to safety belt. The 390KC Harness is designed and recommended for helicopter external load short haul work. Milled Aluminum COBRA quick are used to connect waist belt to waist pad and to connect leg buckles for easy donning. COBRA buckles are ANSI Z359.1 -2007 certified. Weight 7lb. 7oz. Petzl S & L Auxillary Caritool Tool Holders and Yates Tool Holsters sold seperatly. UL certified to ANSI Z359.11-2014 STANDARD.
Trapazoid screw link and new adjustable sling to attach the Petzl Croll sold seperatly.(Part#1781CROLL $30).
SPECIAL NOTICE ON STERNAL ATTACHMENT OF LANYARD FOR FALL ARREST.
ANSI Z359.11-2014 Sternal Attachment
The sternal attachment may be located as shown in Figure 4, and used as an alternative fall arrest attachment in applications where the dorsal attachment is determined to be inappropriate by a competent person and where there is no chance to fall in a direction other than feet first.
E3.2.2 See Figure 2(a) & 4. The sternal attachment element should be used only when the likely fall distance is not greater than 2 ft.
22.214.171.124 When loaded at the sternal attachment to arrest a fall, the design of the FBH (full body harness) shall direct load through the shoulder straps supporting the user and around the thighs.
390KC Harness comes in Mesh/Cordura duffle bag. Duffle bag designed to breath because top portion is constructed using a heavy duty mesh material.
Construction Harness Specification
|Harness Size||Waist Size||Height||D ring to inside edge||D ring to D ring|
|M||31 - 36||5'5" - 6'4"||18.5 in||28.5 in|
|L||35 - 40||5'5" - 6'4"||22.5 in||32.5 in|
|XL||39 - 46||5'5" - 7'0"||26.0 in||36.0 in|
|XXL||42.5-49.5||5'7" - 7'0"||29.5 in||39.5 in|
• Meets ANSI/OSHA Class III full body harness standards
• Certified by UL to ANSI Z359.11-2014.
• Comes with contoured CarbonX covered shoulder pads
