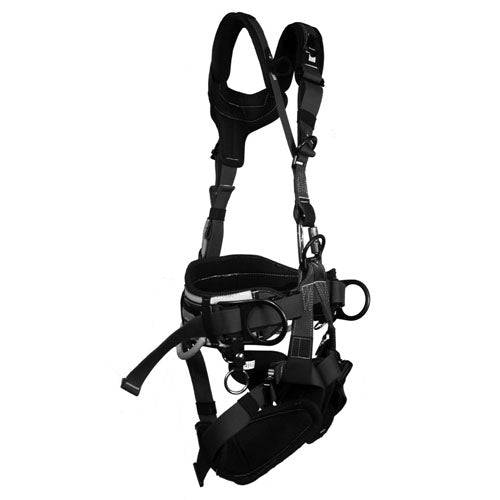

Yates 390KA Kevlar Rope Access Welding Harness
390KA Kevlar Rope Access Welding Harness | Kevlar Rope Access Welding Harness
Yates has designed the 390KA harness to meet the needs of the rope access worker who specifically needs a harness for welding, torch cutting and heavy grinding applications. The 390KA harness has a more flexable waist pad system than the 390KC Harnesss. Designed simular to 390FRA harness but made entirely from 100% Kevlarr® Webbings. Padding on the harness is covered with CarbonX fire spark resistant fabric. ANSI compliant carabiner to attach chest to seat. Wide anatomical waist pad for increased comfort and added back support. U shaped rear shoulder design distributes load evenly accross the neck of the user. Modular work/tool pouch system allows the user to customize each harness to their own arrangement. Easily adjustable for variations in clothing by use of camlock and cobra buckles. Attachment points at waist, hips, chest, back (lumbar) and back (dorsal). Extra large side positioning rings (lineman style) allow the user to easily make connections to safety belt. Modular work/tool pouch system allows the user to customize each harness to their own arrangement. Easily adjustable for variations in clothing by use of camlock and cobra buckles. Attachment points at waist, hips, chest, back (lumbar) and back (dorsal). Extra large side positioning rings (lineman style) allow the user to easily makeconnections to safety belt. The 390KA Harness is designed and recommended for helicopter external load short haul work.
Milled Aluminum COBRA quick are used to connect waist belt to waist pad and to connect leg buckles for easy donning. COBRA buckles are ANSI Z359.1 -2007 certified. Weight 7lb. 7oz. Petzl S & L Auxillary Caritool Tool Holders and Yates Tool Holsters sold seperatly. UL certified to ANSI Z359.11-2014 STANDARD.
Trapazoid screw link and new adjustable sling to attach the Petzl Croll sold seperatly.(Part#1781CROLL $30).
SPECIAL NOTICE ON STERNAL ATTACHMENT OF LANYARD FOR FALL ARREST.
ANSI Z359.11-2014 Sternal Attachment
The sternal attachment may be located as shown in Figure 4, and used as an alternative fall arrest attachment in applications where the dorsal attachment is determined to be inappropriate by a competent person and where there is no chance to fall in a direction other than feet first.
E3.2.2 See Figure 2(a) & 4. The sternal attachment element should be used only when the likely fall distance is not greater than 2 ft.
22.214.171.124 When loaded at the sternal attachment to arrest a fall, the design of the FBH (full body harness) shall direct load through the shoulder straps supporting the user and around the thighs.
390KA Harness comes in Mesh/Cordura duffle bag. Duffle bag designed to breath because top portion is constructed using a heavy duty mesh material.
|Harness Size||Waist Size||Height||D ring to inside edge||D ring to D ring|
|S||28 - 32 in||5'0" - 5'9"||15.5 in||25.5 in|
|M||31 - 36||5'5" - 6'4"||18.5 in||28.5 in|
|L||35 - 40||5'5" - 6'4"||22.5 in||32.5 in|
|XL||39 - 46||5'5" - 7'0"||26.0 in||36.0 in
• Meets ANSI/OSHA Class III full body harness standards
• Certified by UL to ANSI Z359.11-2014.
• Comes with contoured CarbonX covered shoulder pads
