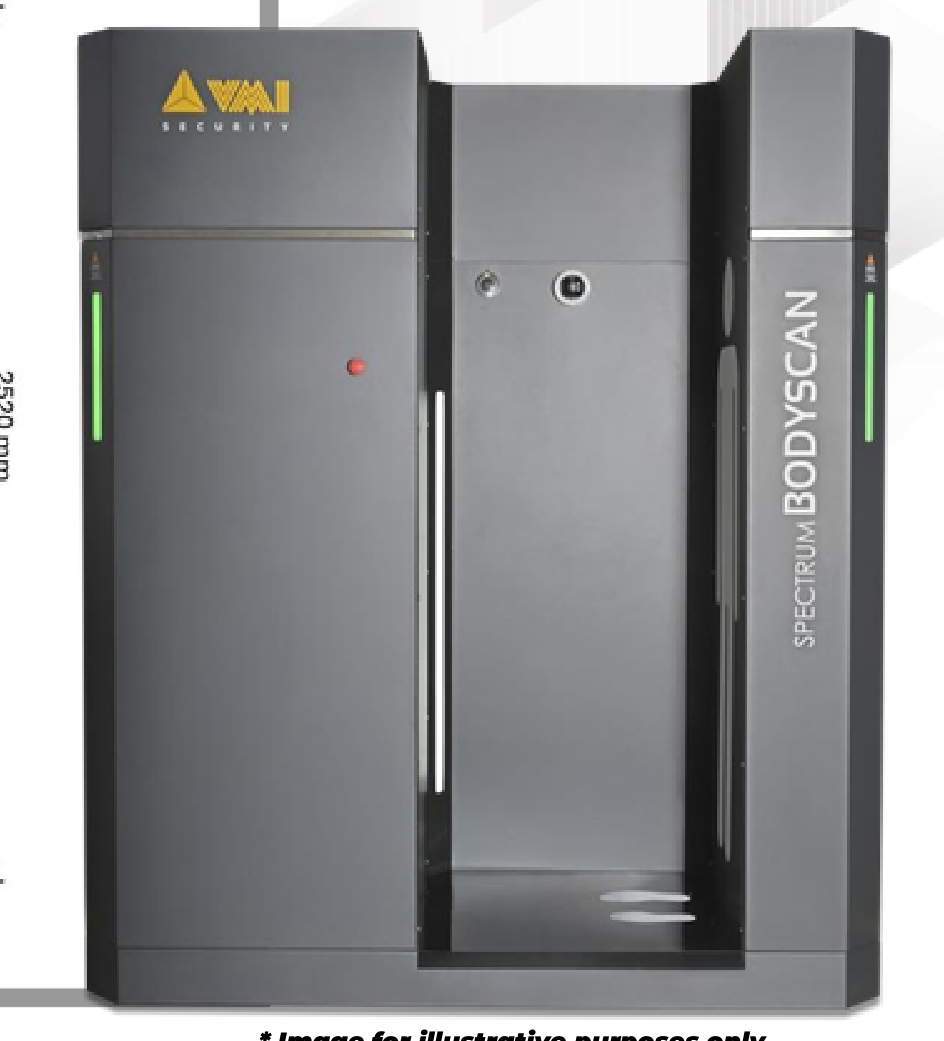

VMI Spectrum Vision Full-Body X-Ray Scanner
The SPECTRUM Vision is a state-of-the-art body scanning system developed for applications in high-security environments such as correctional institutions, detention centers and police facilities. Designed to meet rigorous international standards with a focus on the North American market, it combines high detection accuracy, radiological safety and operational efficiency for fast, non-invasive and reliable inspection of individuals. The solution identifies metallic and non-metallic threats concealed under clothing or within the body — including weapons, drugs and electronic devices — through real-time image processing and continuous operation.
Technical data

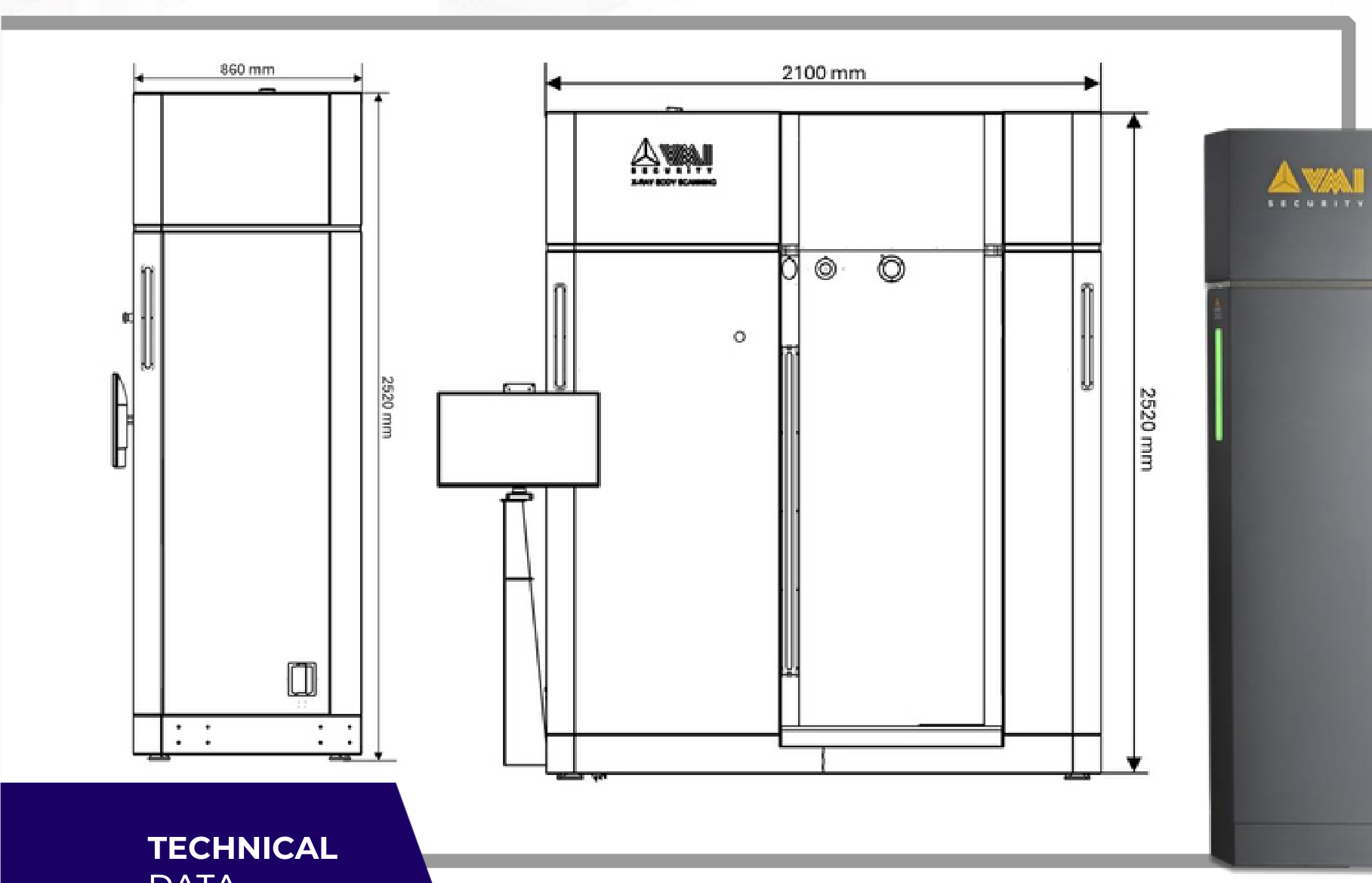

| Inspection channel | 2320 mm (H) / 835 mm (W) |
| Inspection time | Under 10 seconds |
| Scanning system | Low-dose X-ray with full vertical scanning of the human body |
| Imaging technology | High-sensitivity linear detectors with advanced reconstruction algorithms and real-time digital processing |

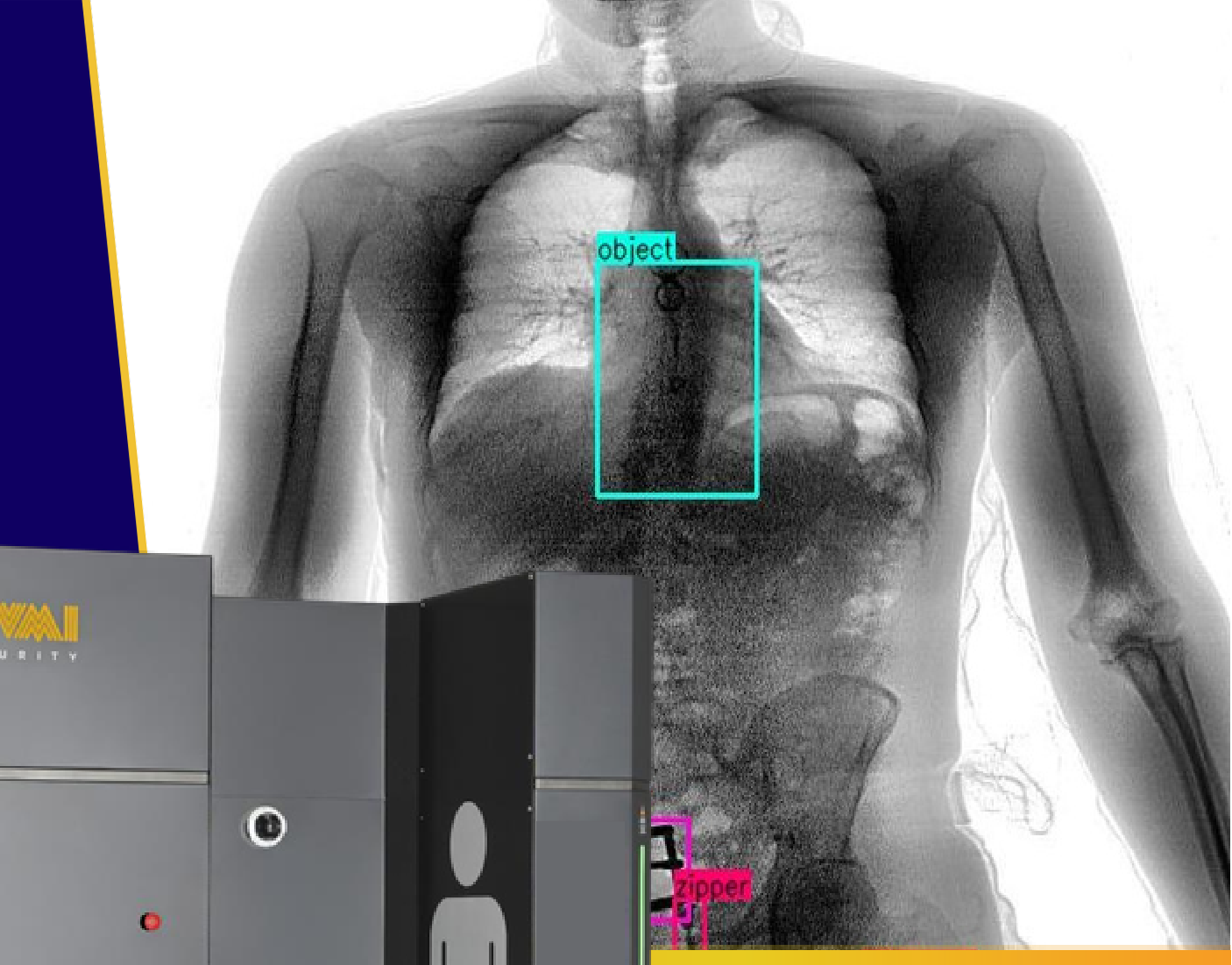

| Detection | Organic and inorganic materials — weapons, explosives, drugs and electronic devices, concealed under clothing or within the body |
| Throughput | High-throughput continuous operation |
| Radiation | Low level of radiological exposure |
| Structure | Compact vertical structure, modular design, compatible with standard doorways |
| Delivery | Supplied semi-assembled for fast installation with reduced calibration and commissioning time |
Figures are taken from VMI Security's published technical data sheet for this model.
Key features
- Integration with security networks
- Compatibility with institutional databases
- Inspection logging and tracking
- Image and report export
- Intuitive user interface
- Ergonomic control panel
- Visual and audible feedback
- Independent modules for easy maintenance
- High operational availability
- Safe operation for both operator and inspected person
Typical deployments
VMI lists this system for prisons, correctional facilities, pretrial detention centers, public jails, police facilities and other environments requiring highly efficient screening.
Frequently asked questions
Is the Spectrum Vision a body scanner?
Yes. VMI describes it as an advanced X-ray body scanning system that performs full vertical scanning of the human body using low-dose X-ray, for detection of contraband concealed under clothing or within the body.
How fast is a scan?
VMI states an inspection time of under 10 seconds, with high-throughput continuous operation.
What size is the inspection channel?
VMI specifies an inspection channel of 2320 mm high by 835 mm wide, and notes the unit is compatible with standard doorways.
Is it safe for staff and inmates?
VMI specifies a low level of radiological exposure and states the system is designed for safe operation for both the operator and the person being inspected. Radiation safety documentation is supplied with the quote.
Which facilities is it built for?
VMI lists correctional institutions, detention centers, pretrial detention centers, public jails and police facilities, and states the design targets the North American market.
How much does it cost?
This system is supplied quote-only. Price depends on installation, training and site preparation, so we issue a written quotation rather than publish a list price.
Do you accept agency purchase orders?
Yes. Security Pro USA accepts purchase orders from federal, state, local and correctional buyers and supplies formal written quotations.
Buying on contract
Security Pro USA is an authorized VMI Security dealer supplying screening equipment to government, correctional and institutional buyers across the United States. This system is quote-only: request a quote and we will return configuration options, pricing, lead time and installation scope in writing. We accept agency purchase orders and supply W-9 and vendor documentation on request. See also our X-ray screening systems, corrections equipment and metal detection.
