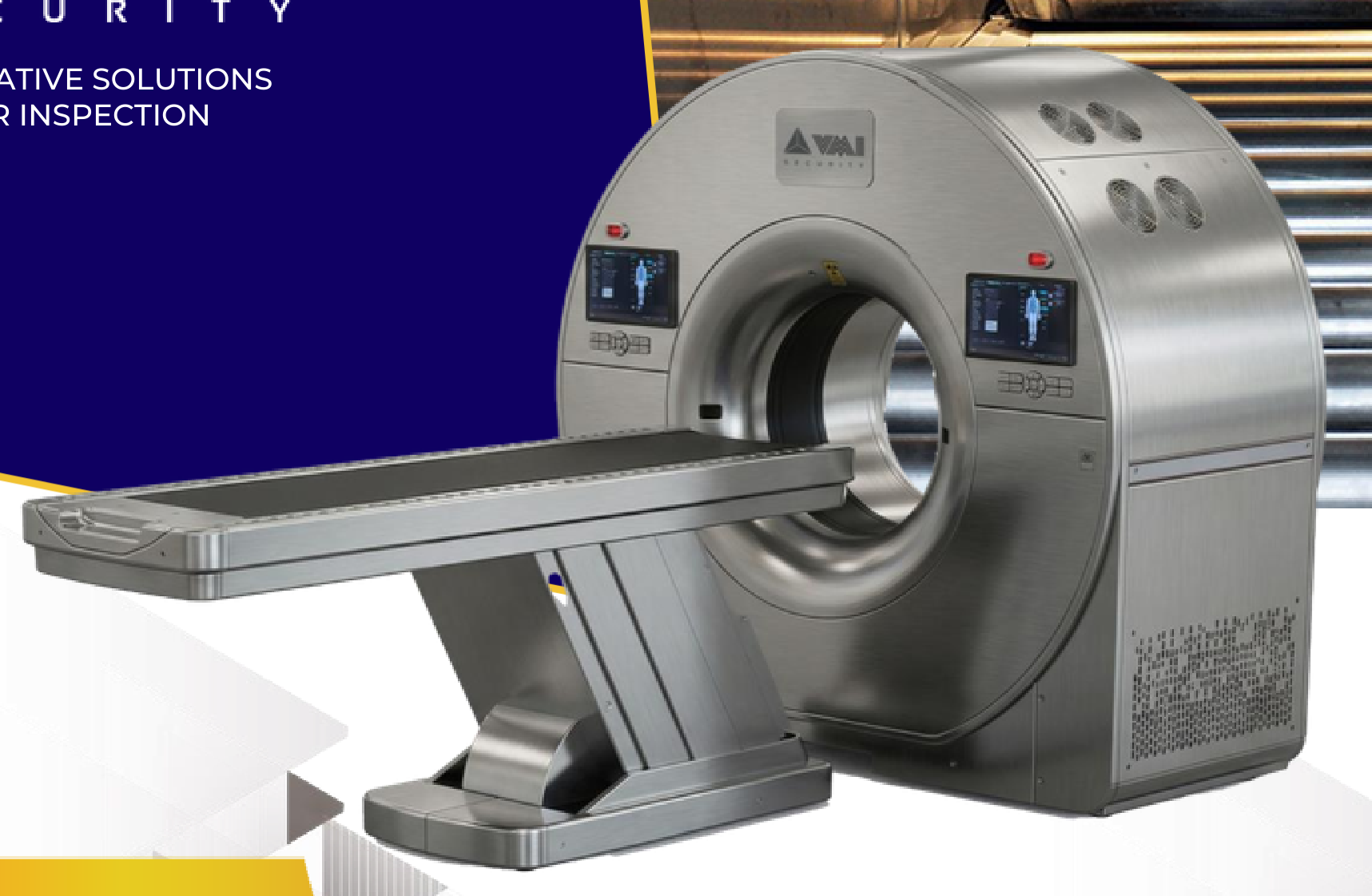

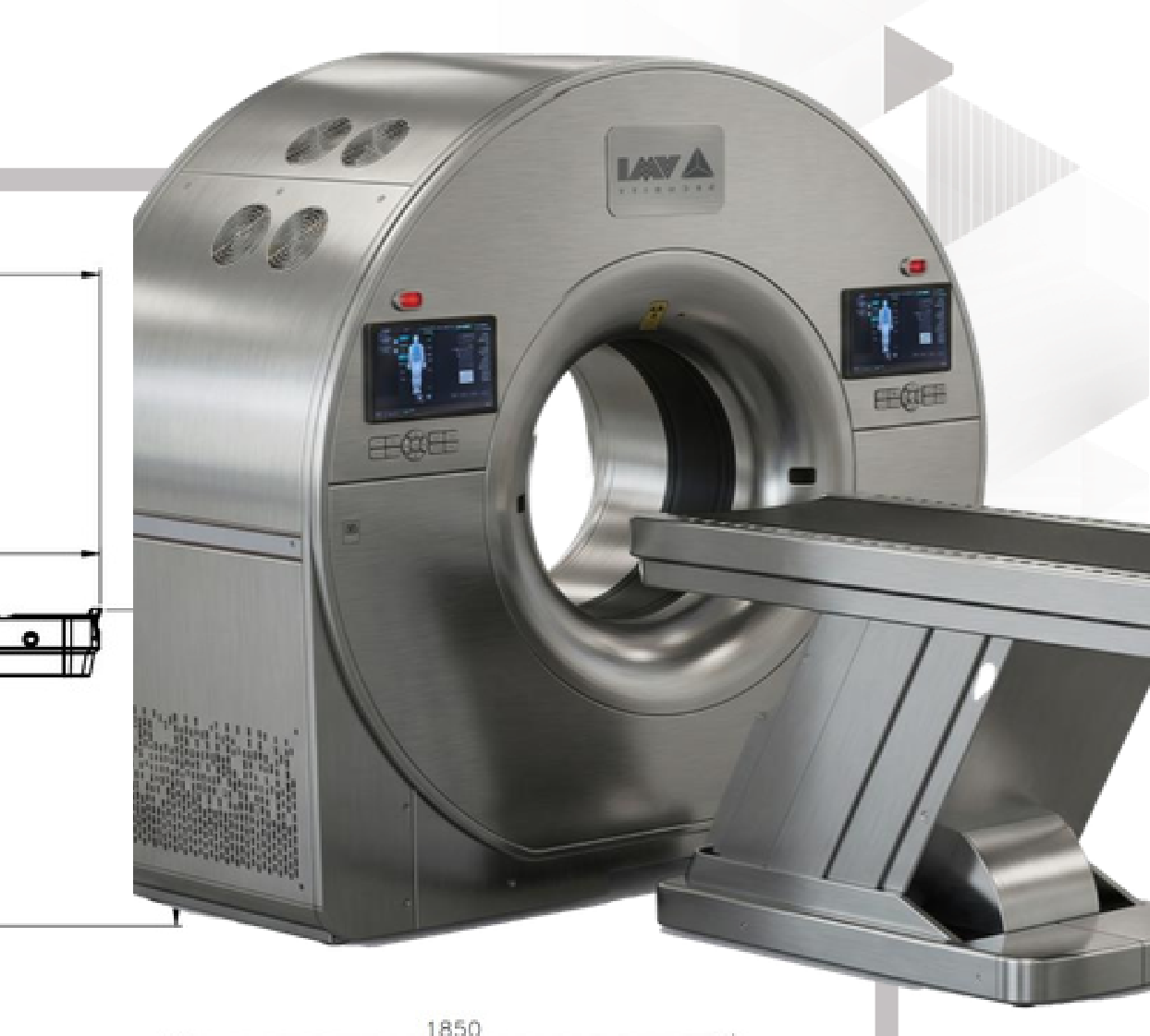

VMI Flatscan 3D Forensic CT Imaging System
The Flatscan 3D is an advanced X-ray tomographic system for body inspection, developed for forensic applications that require high precision and reliability in diagnostics. Equipped with real-time 3D reconstruction technology, the system generates high-definition images in the DICOM 3 medical imaging standard. With a 32-slice architecture, it enables full tomographic scans from multiple angles, allowing detailed volumetric reconstructions for the precise detection of injuries, foreign bodies and hidden evidence, significantly reducing the need for invasive procedures.

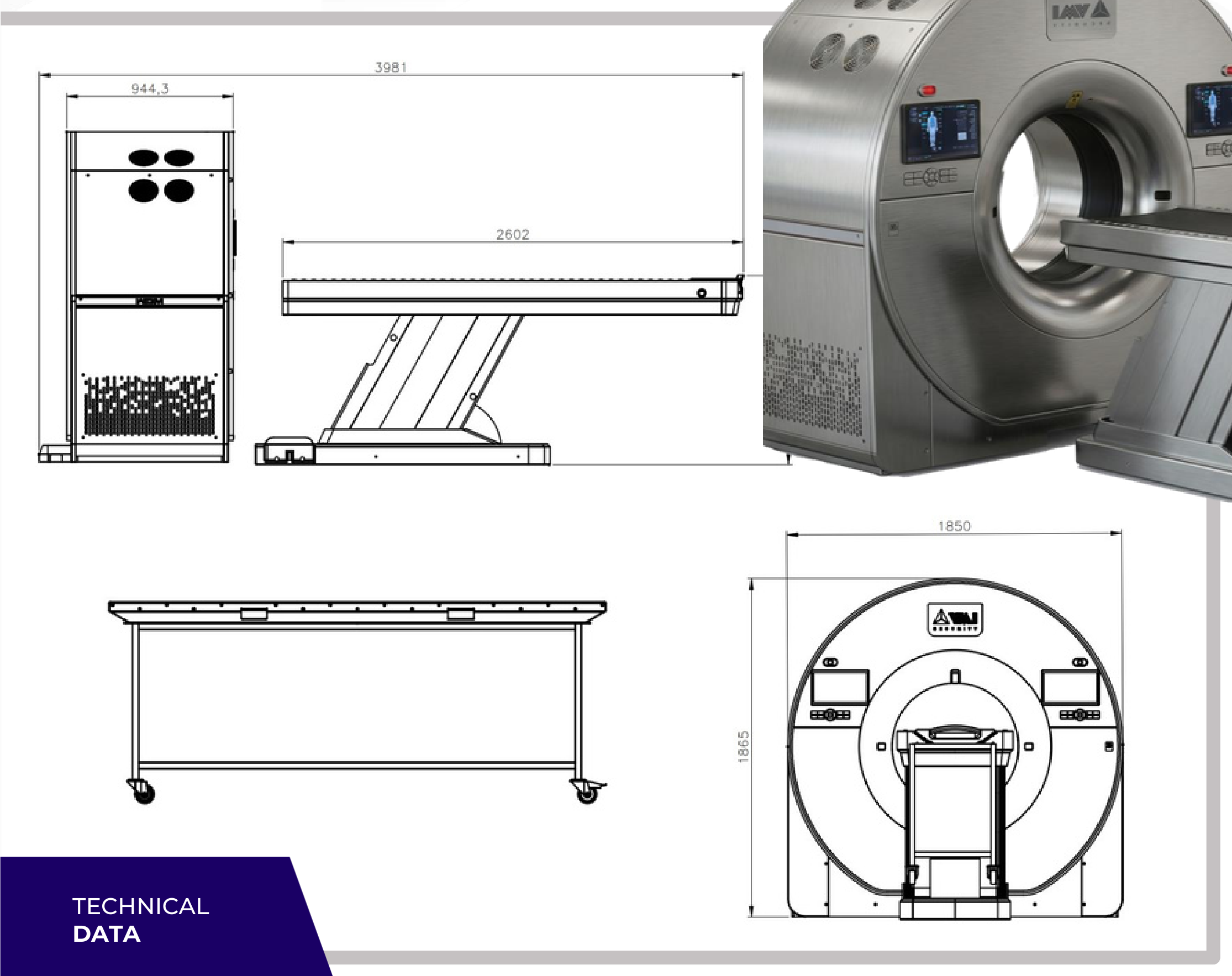

Technical data
| Tube capacity | 4 MHU (Canon, liquid metal bearing) |
| Power | 42 kW (WDM) |
| kV settings | 70, 80, 100, 120, 140 kV |
| Focal spot | 0.9 x 0.7 mm / 1.4 x 1.4 mm |
| Slices | 24 / 32 |
| Detector elements per slice | 720 |
| Coverage | 19.2 mm |
| Acquisition slice | 0.6 mm |
| Reconstruction slice | 0.6 mm |
| Field of view | 450 mm |
| Aperture | 70 cm |
| Rotation speed | 0.5 s/r (1S PRO), 0.75 s/r, 1.0 s/r, 1.5 s/r |
| Spatial resolution | 15 lp/cm @ 0% MTF |
| Contrast resolution | 2 mm @ 0.3% |
| Reconstruction rate | 20 ips |
| Matrix | 512, 768, 1024 |
| Gantry tilt | Not available |
| Table movement | Vertical and horizontal (standard) |
| Bolus tracking | Standard |
| Iterative reconstruction | Standard |
| AI navigation system | Optional |
| Workstation | Acquisition workstation plus post-processing |
| Imaging standard | DICOM 3 compliant |
| Certifications | ISO, ONVIF |
Figures are taken from VMI Security's published technical data sheet for this model.
Key features
- Real-time 3D reconstruction in high definition
- 32-slice architecture for full tomographic scans from multiple angles
- Volumetric reconstruction for detection of injuries, foreign bodies and hidden evidence
- DICOM 3 compliance for compatibility with major industry protocols
- Advanced castor system
- Specialized stretcher
- Interference-free imaging technology
- Significantly reduces the need for invasive procedures
Typical deployments
VMI lists this system for institutes of legal medicine, departments of forensic medicine and criminalistics, hospitals with morgues, and centers specializing in forensic studies and forensic anthropology.
Frequently asked questions
What is the Flatscan 3D?
It is an advanced X-ray tomographic (CT) system for body inspection, developed by VMI for forensic applications that require high precision and reliability in diagnostics.
How many slices does it acquire?
VMI specifies a 32-slice architecture (24 / 32 configurations), with 720 detector elements per slice and a 0.6 mm acquisition and reconstruction slice.
Is it DICOM compatible?
Yes. VMI states the system generates high-definition images in the DICOM 3 medical imaging standard for compatibility with major industry protocols.
What is the field of view and aperture?
VMI specifies a 450 mm field of view and a 70 cm aperture. Gantry tilt is not available on this system.
Which facilities is it intended for?
VMI lists institutes of legal medicine, departments of forensic medicine and criminalistics, hospitals with morgues, and centers specializing in forensic studies and forensic anthropology.
Does it reduce invasive autopsy procedures?
VMI states that volumetric reconstruction allows precise detection of injuries, foreign bodies and hidden evidence, significantly reducing the need for invasive procedures.
How much does it cost?
This system is supplied quote-only. Price depends on configuration, installation, training and site requirements, so we issue a written quotation rather than publish a list price.
