Fall Protection for Confined Spaces

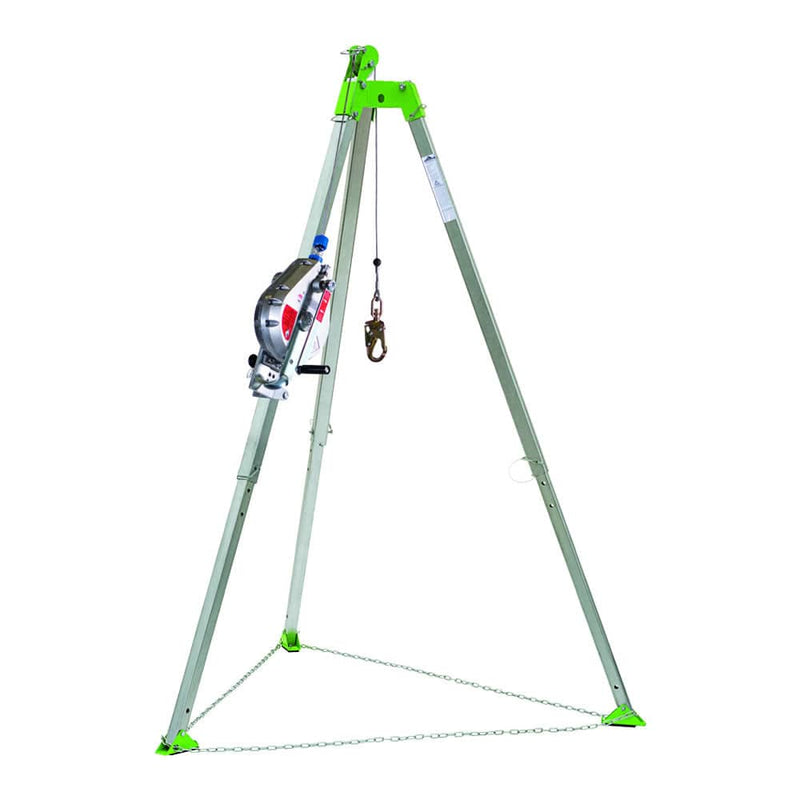

Sellstrom offers the new Peakworks Confined Space Kit that includes the unique adjustable tripod. The new Peakworks Tripod offers a built-in pulley system that positions the wire rope cable directly over the center point above the head assembly of the tripod. This feature allows for superior operator balance when lifting or lowering a person and also allows for increased head room over traditional “below the head” pulley systems. The adjustable aluminum legs include swivel steel feet with non-slip rubber bases. Safety chain and tripod transport bag included.

Fall Protection for Confined Spaces Features:

• The PeakWorks engineering team has developed a unique tripod with distinct advantages over the competition
• The PeakWorks TR-100 Tripod offers a built-in pulley system that is located above the head assembly
• The placement of this pulley situates the wire rope cable directly over the centre point of the tripod for superior perfect operator balance
• Locating the pulley system above the head assembly also allows the operator increased head room over traditional “below-the-head” pulley systems
• The PeakWorks TR-100 features adjustable aluminum legs complete with swivel steel feet and non-slip rubber bases

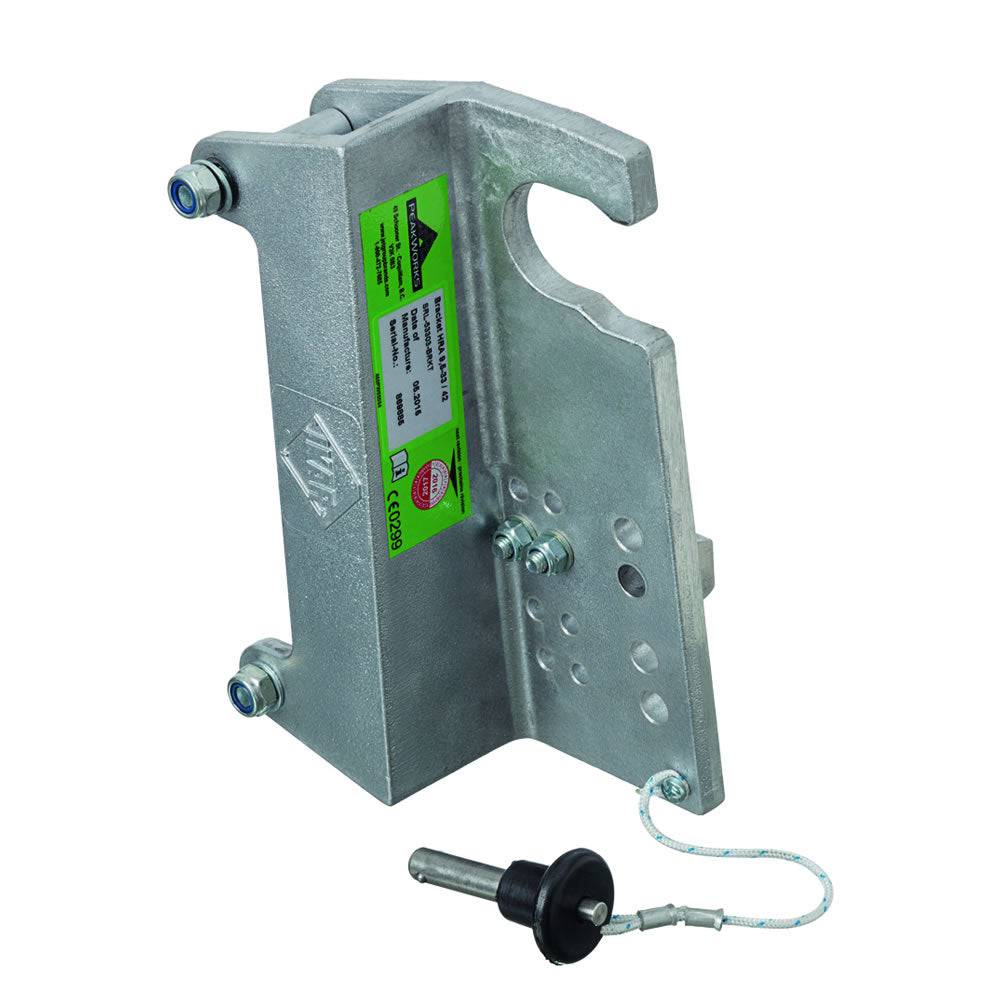

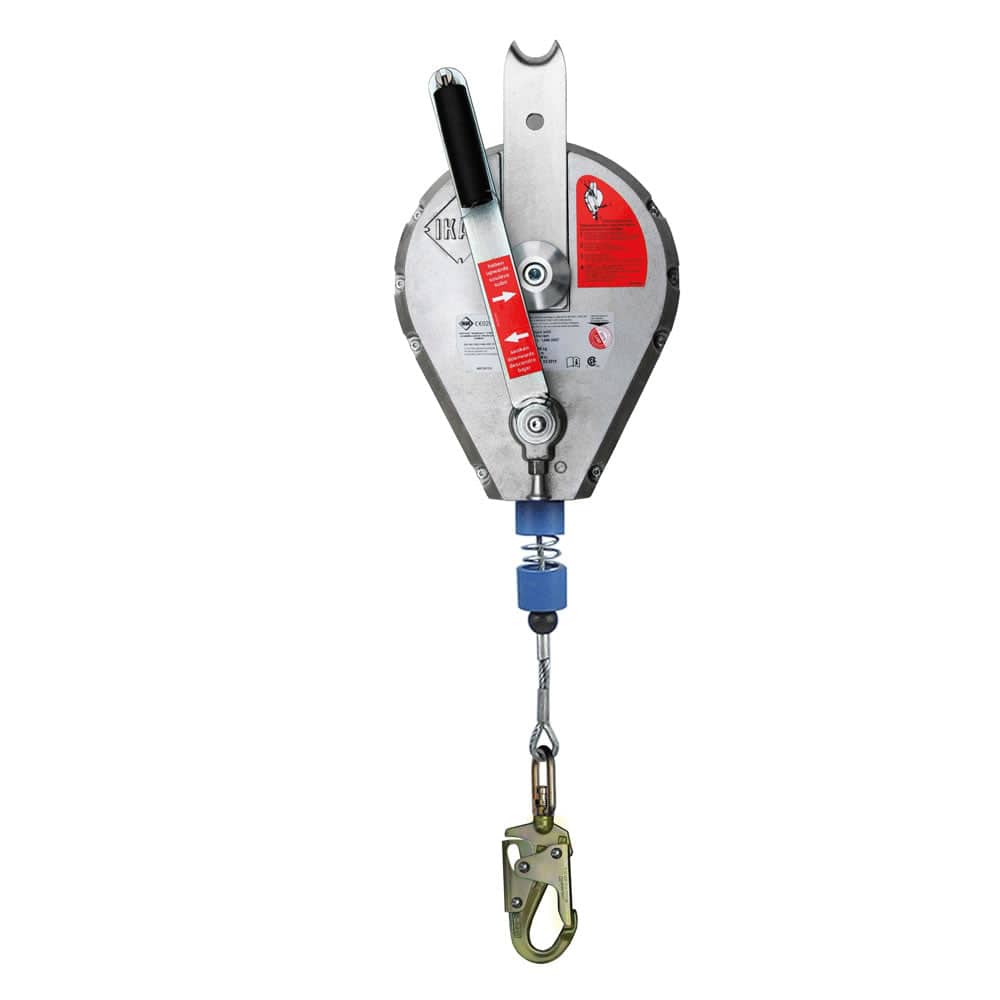

• The TR-100 can be used with a 65' (20 m) Man Rated Winch (MW-65G) or, by attaching the tripod mounting bracket, with a PeakWorks SRL-53303 60' (18 m) or 108' (33 m) recovery style SRL
• 7' (2 m) tripod features adjustable locking legs, two additional anchorage points, non-slip safety feet and safety chain
• Meets or exceeds CSA Z259.15 and ANSI Z359.18 and OSHA requirements

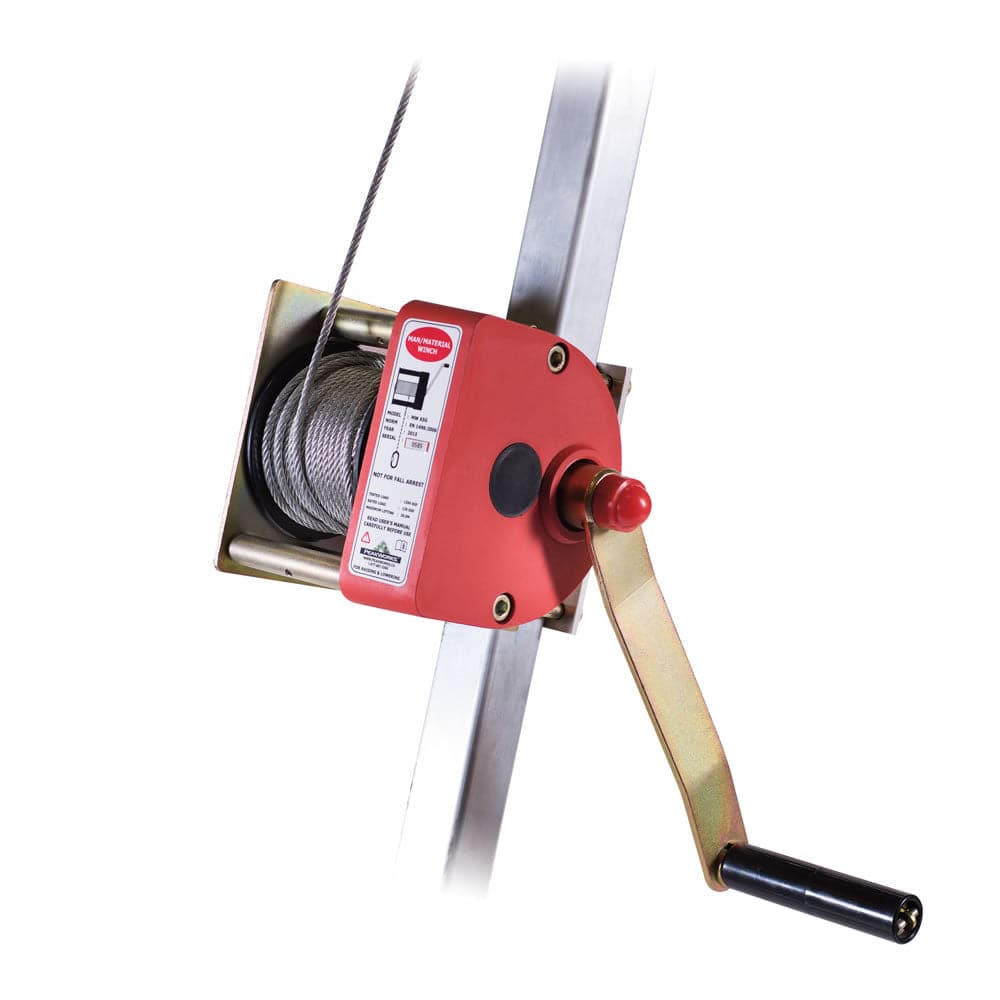

• MW-65G man winch features 65' (20 m) galvanized cable with swivel hook, 300 lb (135 kg) capacity
• 310 lb (141 kg) capacity (combined weight of person, tools, clothing, etc.)

Fall Protection for Confined Spaces Specification:
