Explosive Trace Detector

Scintrex Trace E5000 Portable Trace Detection Unit

SKU : AC-E5000
Regular price
Regular price Sale price $0.00


Explosive & Narcotics Detectors - Scintrex Trace E5000

Cost Effective and Efficient Explosive & Narcotics detectors Scintrex Trace E5000 for Trace bulk drug detection highly useful for search and seizure teams

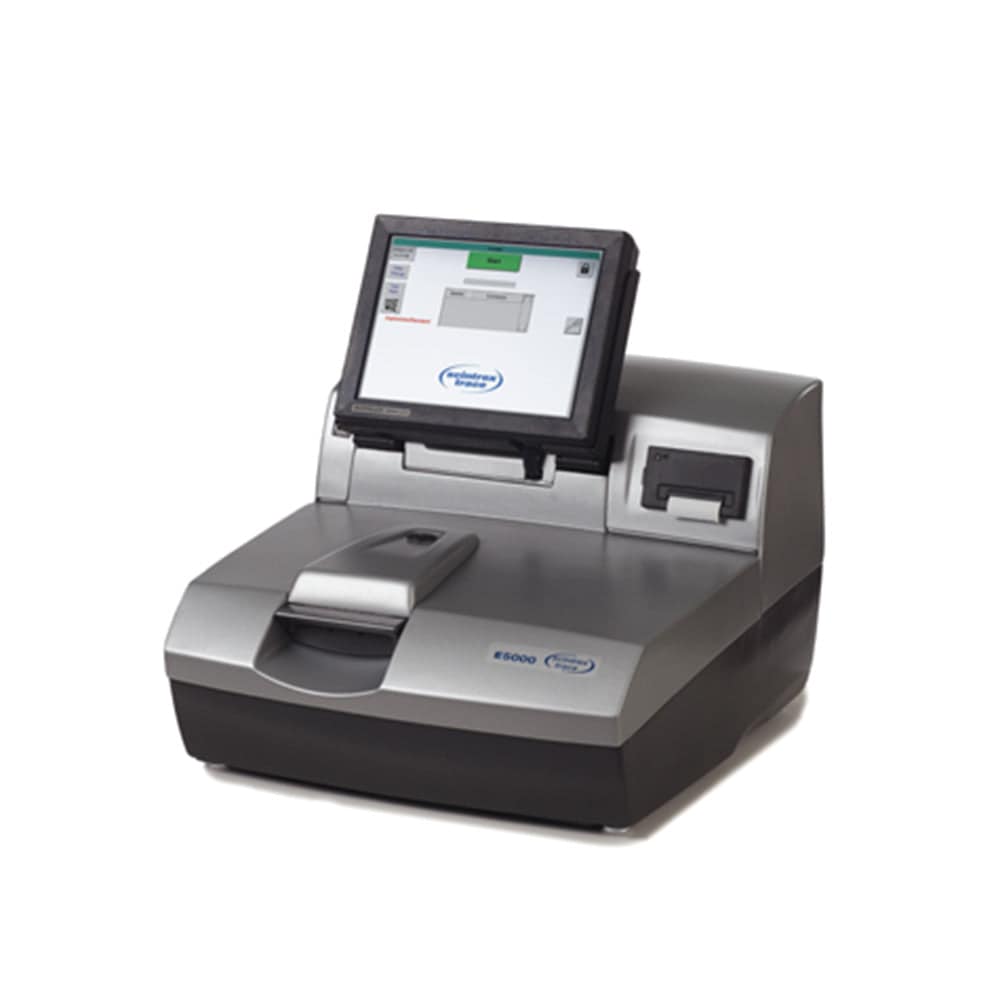

The Scintrex Trace E5000 Series Desktop Explosive Trace Detector delivers fast, accurate and reliable analysis results when screening for traces of explosives or narcotics. The combination of gas chromatography and ion mobility spectrometry technology provides operators with a highly selective and sensitive system designed for high throughput environments.

Simple sampling and a large color touchscreen display makes the system operator friendly, while low consumable and daily maintenance requirements keep cost of ownership low.

Explosive & Narcotics Detectors Scintrex Trace E5000 Features

  • Deliver laboratory- grade accuracy
  • Rapid, accurate and easy to read results in seconds
  • Detects nitrogen- and peroxide-based explosive compounds
  • Delivers laboratory-grade accuracy to the field

Trace Detector E5000 Specifications:

Overall dimensions (L x W x H):

  • 43.2 x 35.6 x 20.3 cm
  • 17.0 x 14.0 x 8.0 in.


  • 8.3 kg
  • 18.3 lbs.

Detector:                                 Gas chromatography-ion mobility spectrometry (GC-IMS)

Analysis Time:                        6–40 seconds (adjustable)

Explosives Detected:             PETN, RDX, TNT, NG, dynamite, Semtex, C-4 and  others (programmable)

Narcotics Detected:               Cocaine, opiates, THC, heroin, amphetamine-type stimulants and others (programmable)

Sensitivity:                              Explosives: picogram Narcotics: nanogram

Sample Collection:                Particulates

Warm-up Time:                       Under 30 minutes from cold  start

Alarms:                                    Visual graphic and audible alarm

Power Supply:                        AC/DC 24 V

Input Voltage:                         85-264 VAC 47/63 Hz

Unit Weight:                            26.2 kg (57.8 lbs.) with power supply

Unit Dimensions:                   80.9 x 53.3 x 38.1 cm

(L x W x H)                               31.9 x 21.0 x 15.0 in.


Operating Temp:                    15o to 35oC (59o to 95oF) up to 90% humidity,        non-condensing

Storage Temp:                        -5o to 65oC (23o to 149oF)

Communication:                    RS-232 serial output port

Data Storage:                         35,000 retrievable data records
