Bomb Detection | Scintrex E3500 Trace Detector

Scintrex Trace E3500 Explosive Trace Detection Unit



This product is available.

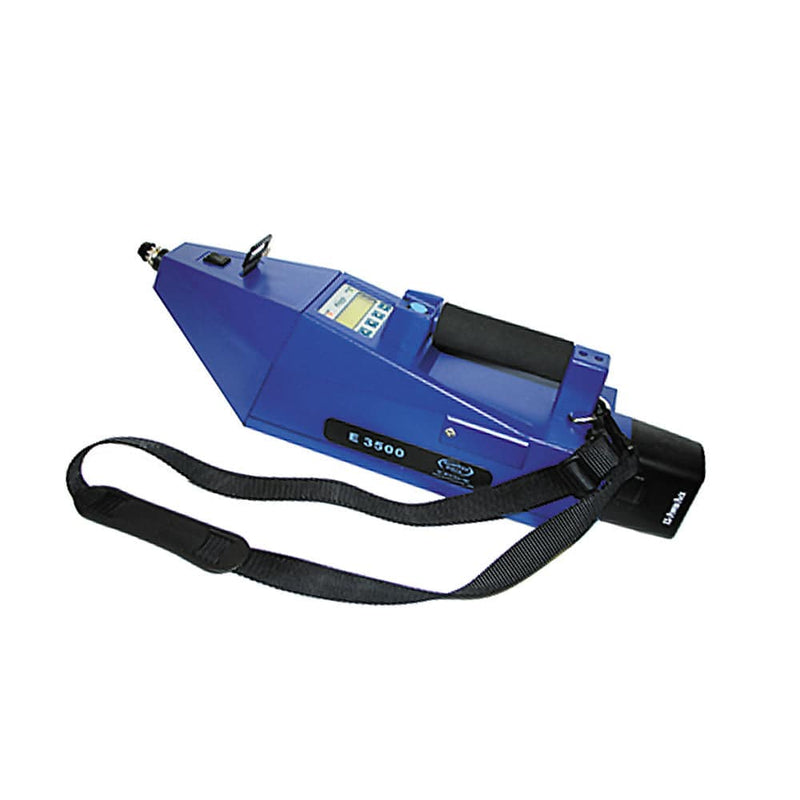

Explosives Detector - Scintrex E3500

Handheld Explosive Detector For Quick & Accurate Results

The Scintrex E3500 Trace Detector explosives trace detector uses advanced chemiluminescence technology to detect homemade, military and commercial explosives, including ICAO taggants, plastics, ammonium nitrate, black powder, other nitrates and TATP, H.MTD

Built to withstand rough handling and tough environments, the E3500 packs potent detection capability into a lightweight, durable thermoplastic housing. The handheld E3500 analyzes both particulate and vapor samples in seconds, without the need for radioactive isotopes or carrier gases.

A global leader in explosives, chemical and narcotics detection, Scintrex Trace is Autoclear’s Canadian-based trace detection division. Like Autoclear’s flagship X-ray systems, these products deliver unsurpassed accuracy, speed and reliability for detecting the most dangerous and cleverly concealed threats.

Handheld Explosive Detector E3500 Features:

  • Resists contamination from weather, terrain, humidity, dirt and dust
  • Delivers laboratory-grade accuracy to the field
  • Identifies both particulates and vapors in seconds
  • No radioactive isotopes or carrier gases needed

Explosive Detector E3500 Applications:

  • Force Protection
  • Customs and Borders
  • VIP Screening
  • Embassies and Consulates
  • Royal and Diplomatic Protection
  • Critical Infrastructure
  • High Security Events

Handheld Explosive Detector E3500 Specification:

Detector:                                Chemiluminescence

Analysis Time:                      16 seconds

Explosives Detected:           PETN, RDX, TNT, dynamite, Semtex,

C-4, black powder, ammonium and urea nitrates, NG, ICAO taggants, EGDN and DMNB, TATP, peroxides, chlorates

Sensitivity:                            Nanogram

Sample Collection:               Particulates and vapors

Warm-up Time:                     None, after one minute start

Alarms:                                  LED indicator lights and audible alarm

Power Supply:                       12 V DC rechargeable four hour battery pack

Input Voltage:                       90-264 VAC, 50-60 Hz universal switching

Unit Weight:                          3.0 kg (6.6 lbs.) with battery

Unit Dimensions:                  50.0 x 14.0 x 11.0 cm

(L x W x H)                              20.0 x 5.5 x 4.3 in.

Operating Temp:                  0o to 55oC (32o to 131oF)

Storage Temp:                      -5o to 65oC (23o to 149oF)

Communication:                  RS-232 serial output port

Data Storage:                        1,000 retrievable data records

Options:                                12 V AC battery, external battery, printer


***For pricing and availability on all trace detection units please request a quote and our sales team will get back to you.***
