Scanna Scantrak Portable X-Ray Scanner

SKU : SCANTRAK
Regular price
Regular price Sale price $0.00

Description

The Scanna Scantrak is a multiple application portable digital x-ray scanner used by police, military, EOD, customs, law enforcement agencies, prisons and building security managers for security checking unattended bags and suspicious packages.

Scantrak is easily set up and deployed in minutes by one person and can be configured to suit different environments.

Scantrak operates with any of the Golden pulsed x-ray generators and our ScanView Imaging software is compatible with most Windows XP or Windows 7 laptops or tablets .

Scantrak is available with adjustable exposure settings, different size ICUs from 8 x 10” up to 16 x 22″ and has both wireless and ROV capabilities.

Key features

  • Direct CCD x-ray image viewing with fast rescans and no return to target to retrieve image plate
  • Portable and easy to set up and use in 2 minutes
  • Ethernet Cable or wireless operation
  • Range of Image Capture Units from 8 x 10” up to 16 x 22”

Imaging Area

  • Standard Compact 8 x 10” (20 x 25 cm)
  • 10 x 13”
  • 11 x 15”
  • 13 x 17”
  • 16 x 22”

X-ray Generators
Works with most portable x-ray sources including the Golden XR150, Golden XR200, Golden XRS-3 and also recommended continuous x-ray sources

Image processing features
Scantrak uses our powerful ScanView software to give you a range of image manipulation options to get all the detail out of your x-ray image. Features include Zoom, inverse Image, b/w, pseudo color, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients.

A range of annotation tools allow you to insert text, notes and highlight suspect areas.

Database features
ScanView’s database software allows you to store and manage over 32,000 images using searchable fields. Raw and Stored images can be immediately exported by email or across a network.

Power Options
Completely battery powered in the field for over 5 hours continuous operation. Recharge through the transit case’s integral charging system.

Equipment Service and Support
Our comprehensive equipment support packages provide you with a range of service options to support your equipment in the field and ensure its reliability throughout the product life-cycle.

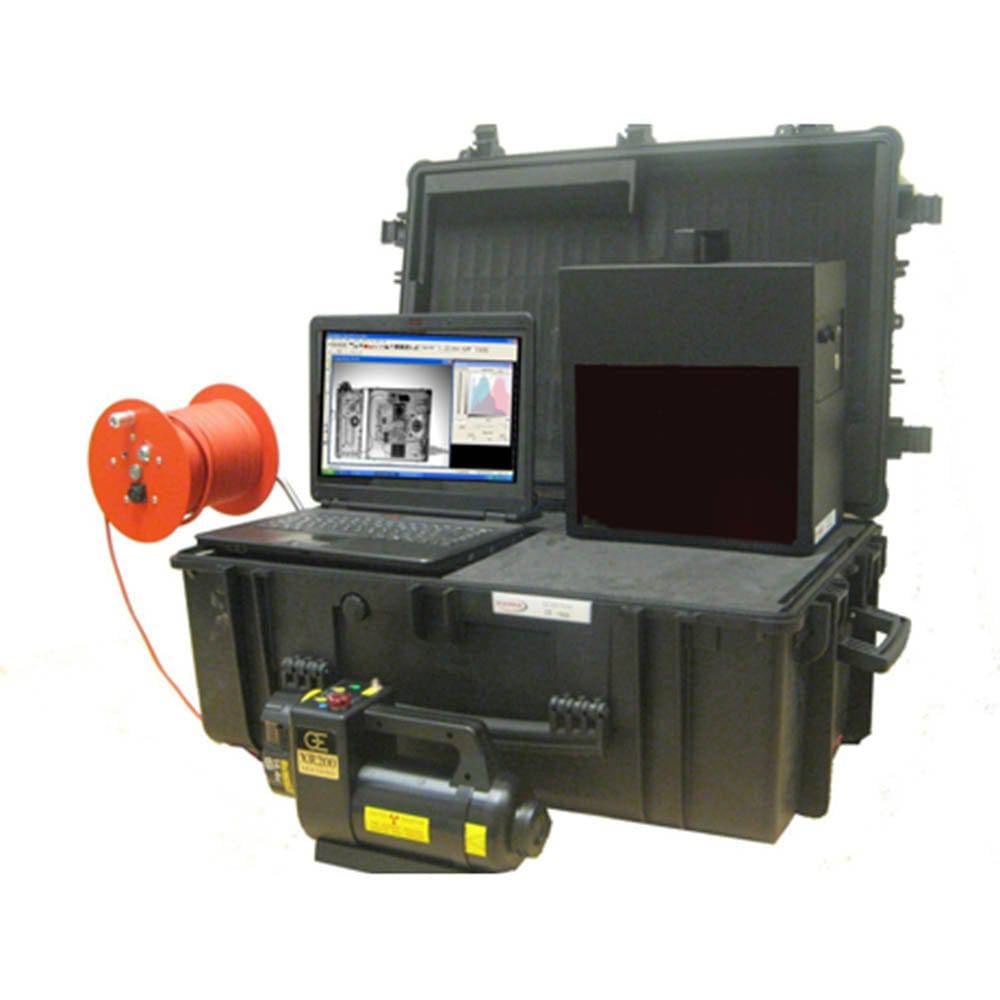

Standard System Configuration

  • Scantrak 8 x 10” CCD x-ray imager (ICU)
  • XR200 X-ray generator
  • Spare generator battery
  • High specification laptop
  • Scanview security imaging software
  • 50m cable on reel
  • Integrated System Chargers
  • Wheeled Pelistyle Transit Case

Scantrak Imaging Capture Unit (ICU) Specifications

X-ray Imaging Area

Standard Compact: 8 x 10”

10 x 13”
11 x 15”
13 x 17”
16 x 22”

Size and Weight

Standard 8 x 10" ICU

Dimensions:
Weight 13 lbs

Power:
Battery Type: Lithium Ion Rechargeable
Battery Operation: 5 Hours
Recharge: 8 hours
Charging System: 100-240V AC

Technical

X-ray Generators

XR200 supplied as part of standard system configuration:

Size: 12.5” x 4.5” x 7.5”
Weight 12 lbs (5.5 kgs)
Penetration: 0.5" (15mm) steel
Photon Energy: 150 Kv

See X-Ray generator pages for details of alternative x-ray sources.

Laptop

• 15.4" WXGA Screen (1280x800) Glare / WSXGA+ (1680x1050) Glare
• Intel P8400 Core 2 Duo 2.26Ghz 1066FSB 3MB Mobile
• Vidia GeForce Go 9600M GT 512MB Video
• 2Gb DDR2 800 Memory
• Serial ATA Hard Drive, up to 500GB
• 160Gb Hard Disk Drive
• DVD+/- RW Drive
• Card Reader
• Optional 802.11g Wireless LAN
• RJ-45, USB, VGA
• 10/100 LAN
• Windows 7 Professional (English)

Scanview image processing features

Zoom, inverse Image, b/w, pseudo color, pseudo 3D, contrast enhancement, clean image, rotation, distance, measure and show gradients.

A range of annotation tools: Insert text, notes and highlight suspect areas.

Image Database and Incident Management Tools

***Please note that Security X-Ray Inspection Systems are made to order items and cannot be purchased online ***
