SAMSON™ Modular Barrier For Heavy Weight Vehicles

Vehicle Barriers For Heavy Trucks

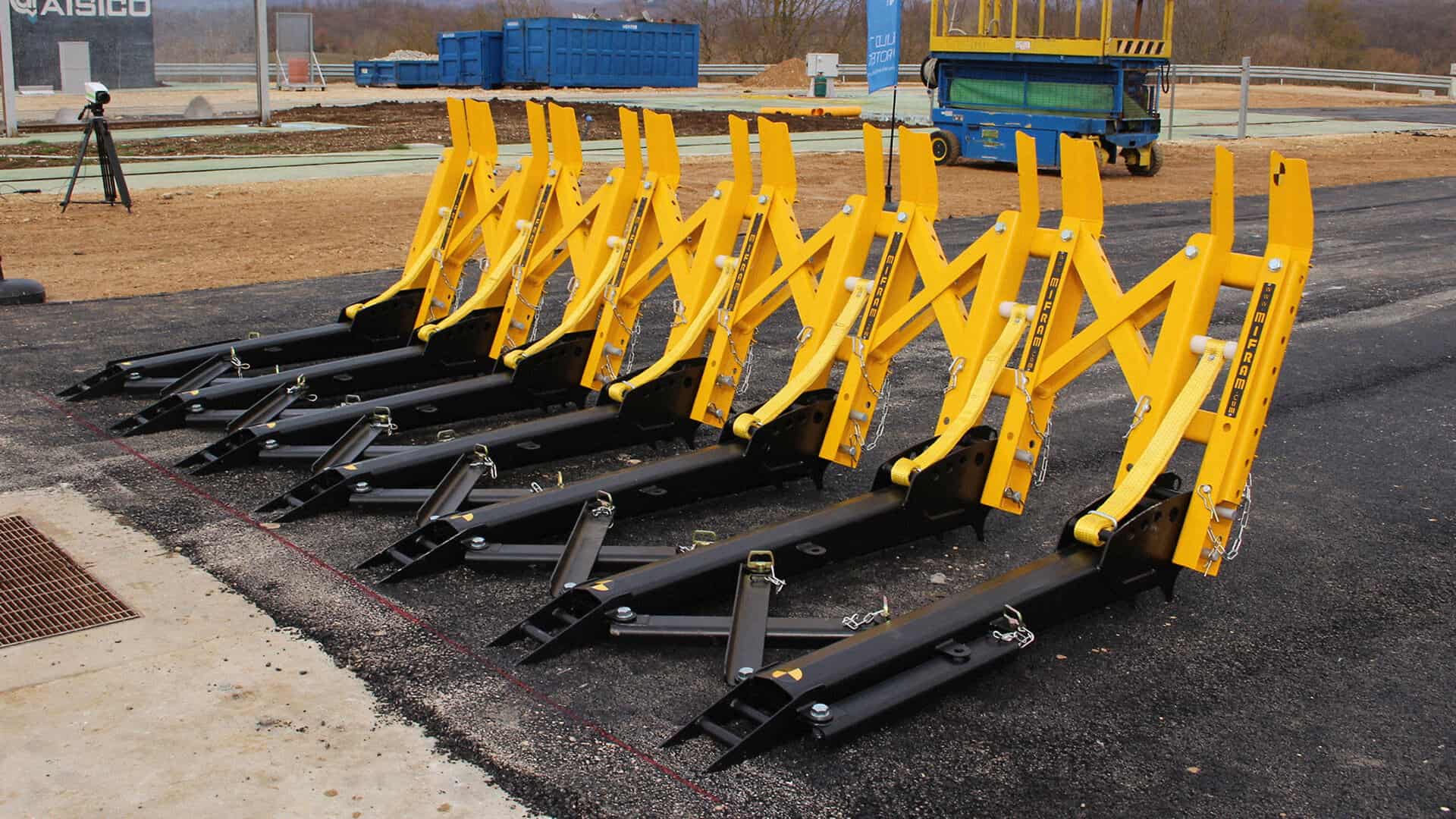

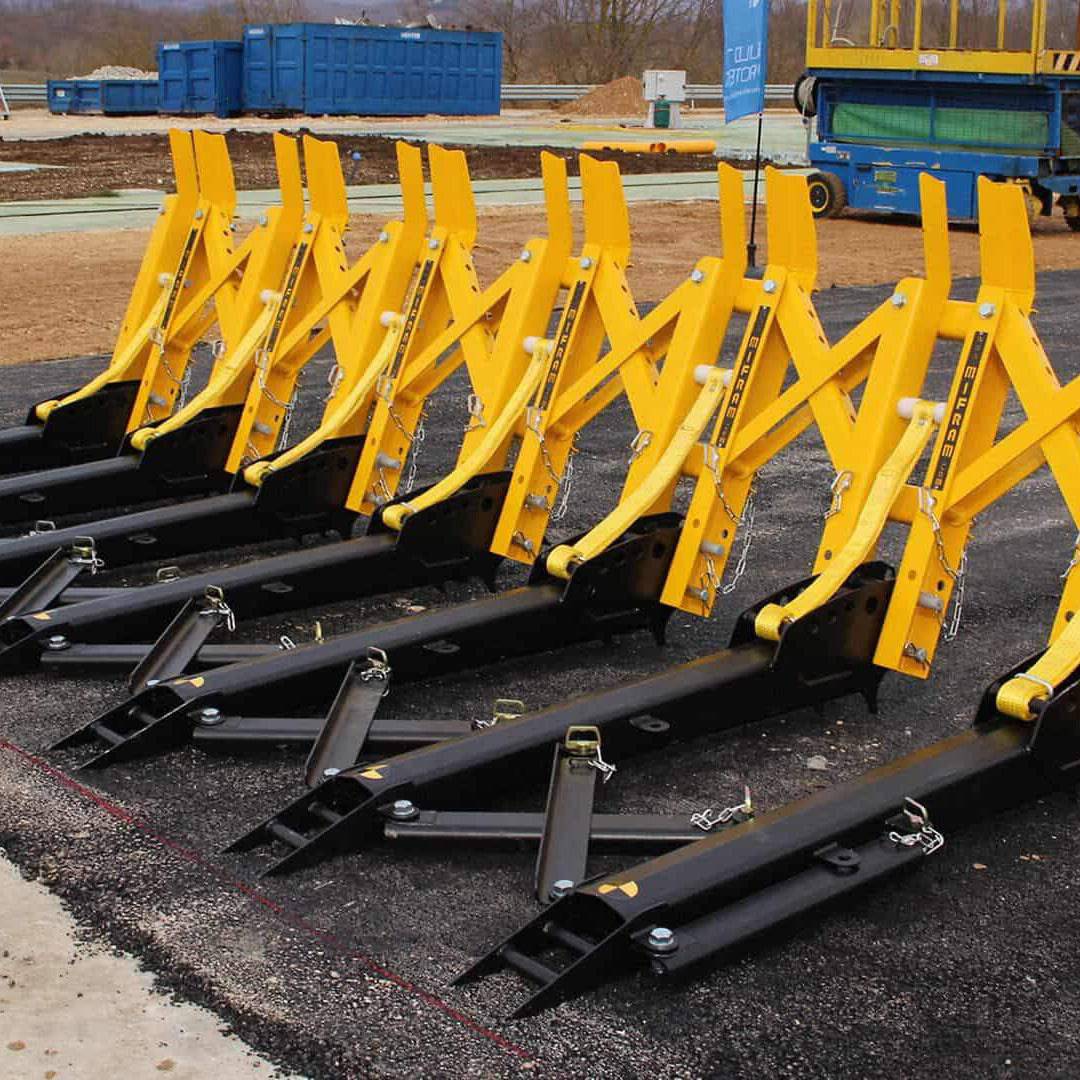

Mifram Samson Heavy Weight Vehicle Barrier

The next generation, patent pending, tested and certified physical barrier that stops any vehicle from a motorcycle and up to 12 Ton heavy trucks from breaking through.

Modular and portable barrier that supports municipal forces, police forces, event operators, military and special divisions.

Samson Heavy Weight Vehicle Barrier Features

• Prevents ramming vehicles entry into restricted areas
• Patent Pending technology: the horizontal momentum is converted to a
• vertical momentum both downward and upwards
• Modularity enables blocking wide-ranging routes and widths
• Designed for use on sandy, rocky and rough terrain,     gravel and asphalt
• Safety lights and signs
• Adequate for urban territories and high level threats areas
• Basic color: Yellow & black
• Assembled by one agent

Samson Vehicle Barrier Tested & Certification

High Quality Vehicle Barriers To Stop Them All

IWA 14 -1:2013 standard: VSB V/7200 [N3D]/48/90:14.2
Tested at 7,500 kg @ 50 km/hr [16,538 lbs. @ 31.06 mi/h] – Penetration 14.2 m  [46.6 ft.]
PAS 68: 2013 standard VSB V/ 7500 [N3]/48 / 90: 12.4
Tested & Certifed at 7,500 kg @ 48 km/hr [16,538 lbs. @ 29.83 mi/h] – Penetration 12.4 m [40.68 ft.]
ASTM – F2656-15 standard: Barrier Rating C730
Tested at 7,500 kg @ 50 km/hr [16,538 lbs. @ 31.06 mi/h] – Penetration 12.4 m  [40.68 ft.]
667 KJ Energy Absorption – Equal to 89 Concrete blocks of 1M³ (2.4 Ton) Movement  for 1 Meter Distance

Samson Vehicle Barrier Specification

per single unit
~4.92 ft.       ~150 cm Length
~2.13 ft.       ~65 cm  Width
~12.54 ft.      ~108 cm Height
~121.3 lbs.     ~55 kg  Weight
~60.64 lbs.     ~27.5 kg        Heaviest Part
