RfPatrol Compact, Wearable Detector

DroneShield

This product is available.

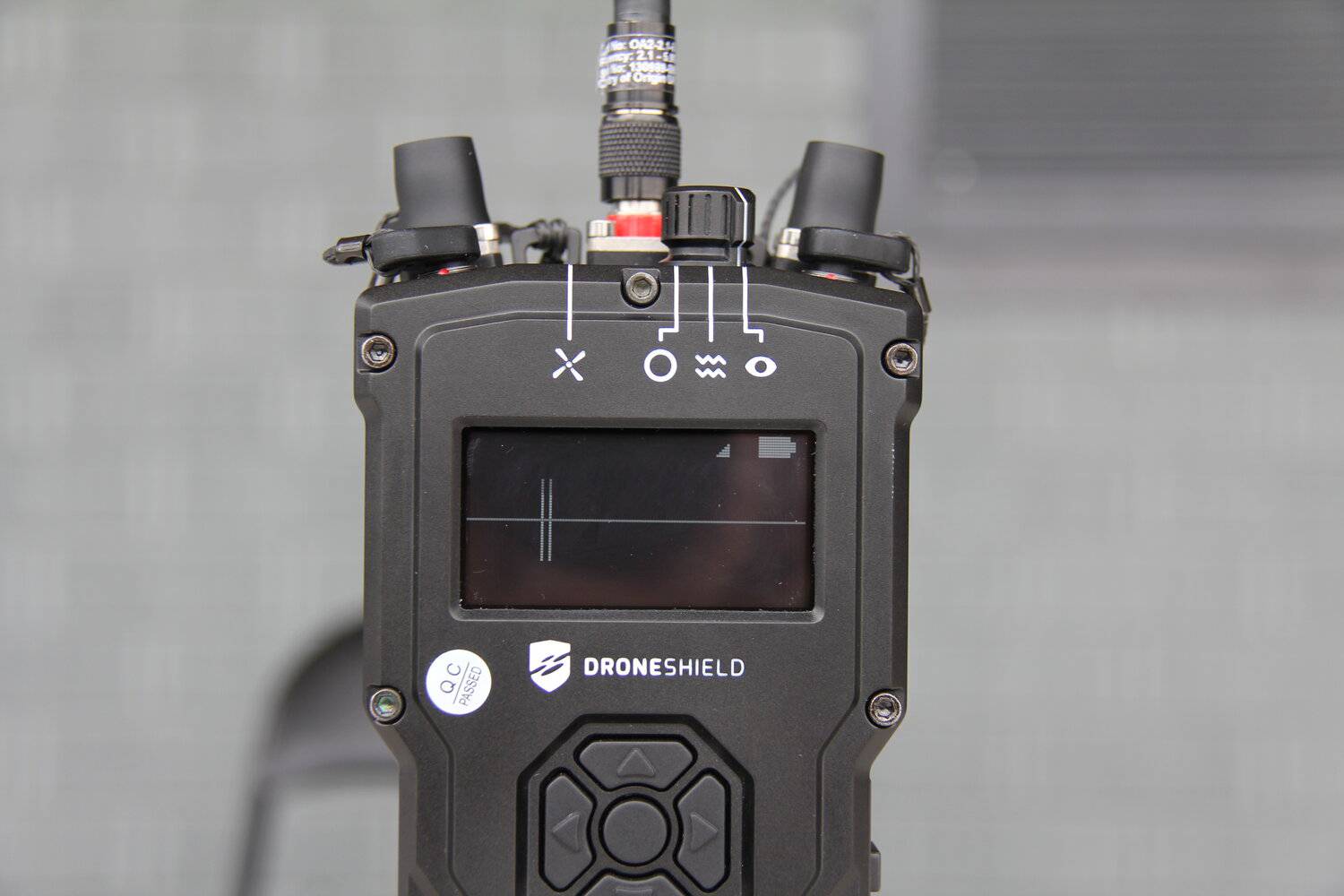

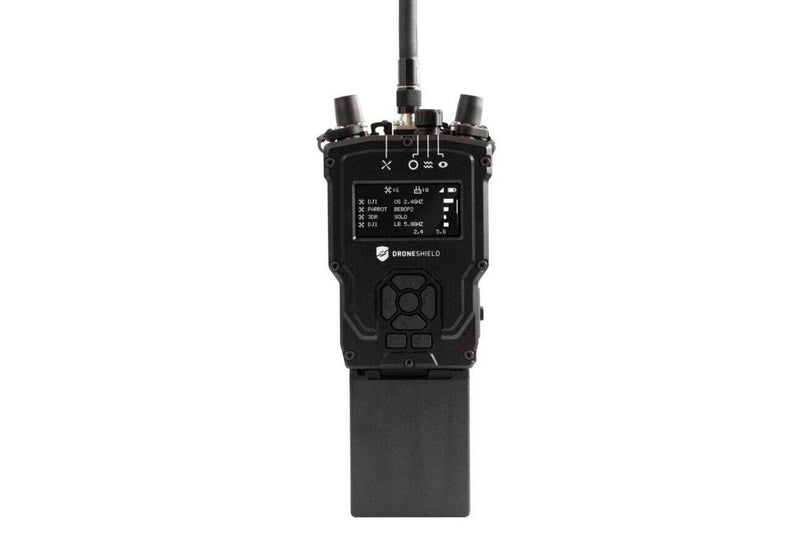

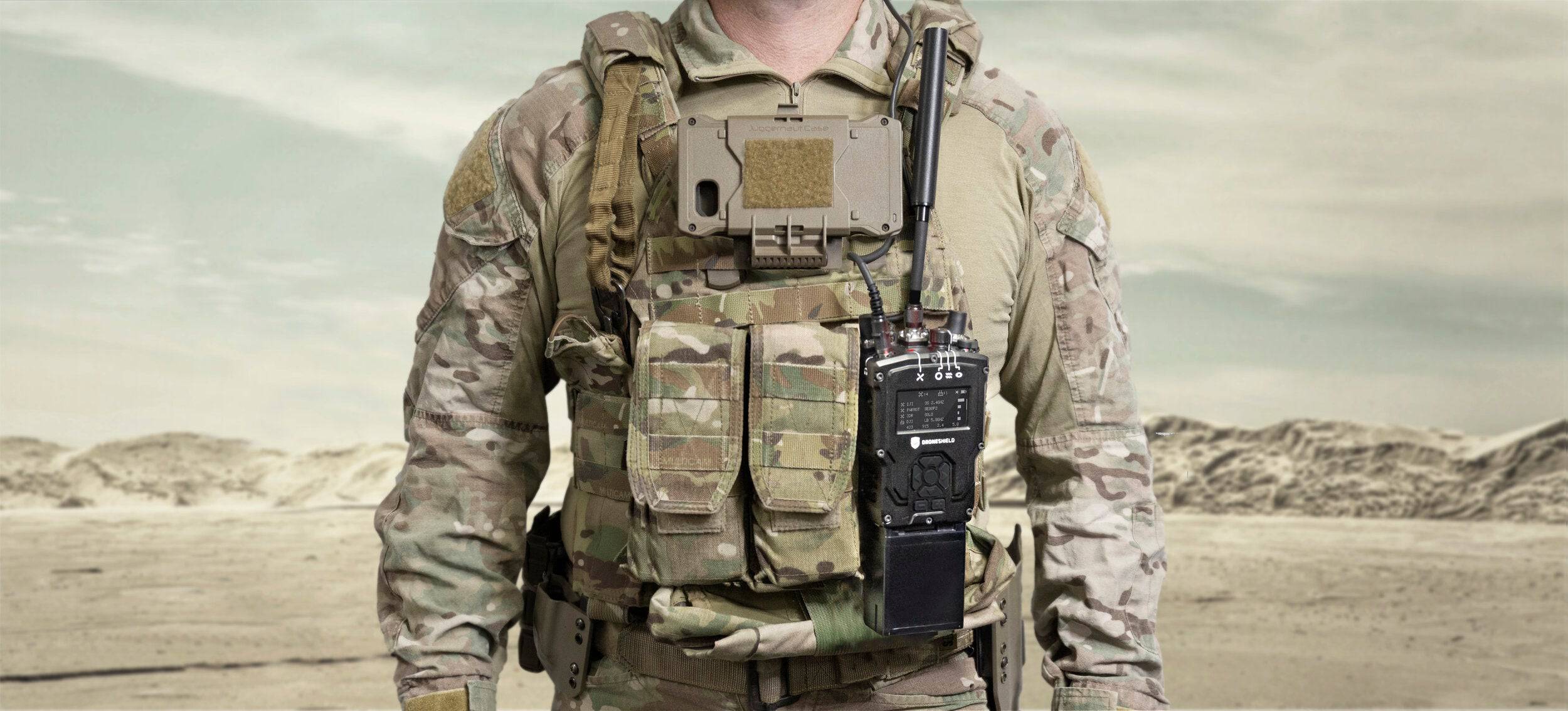

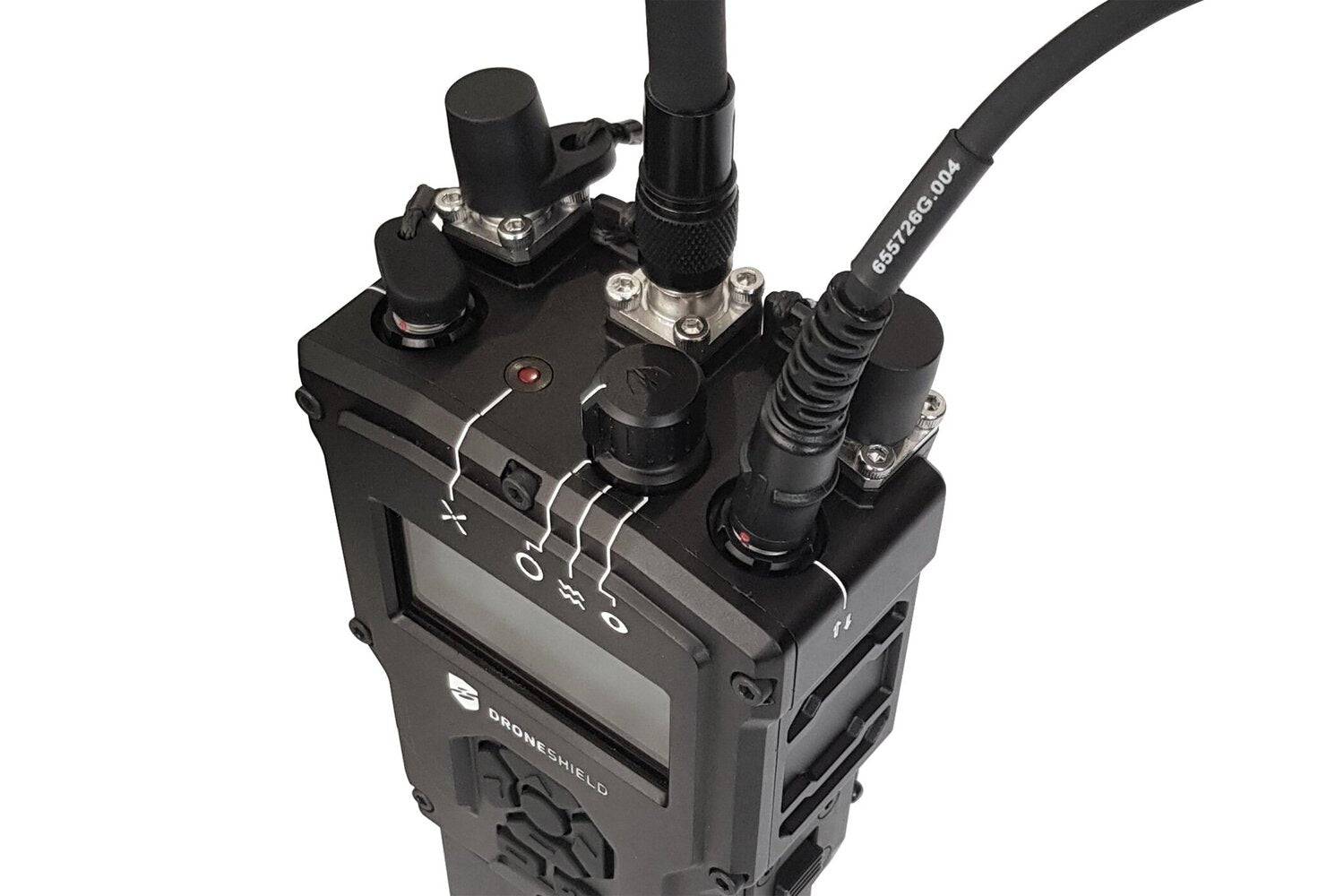

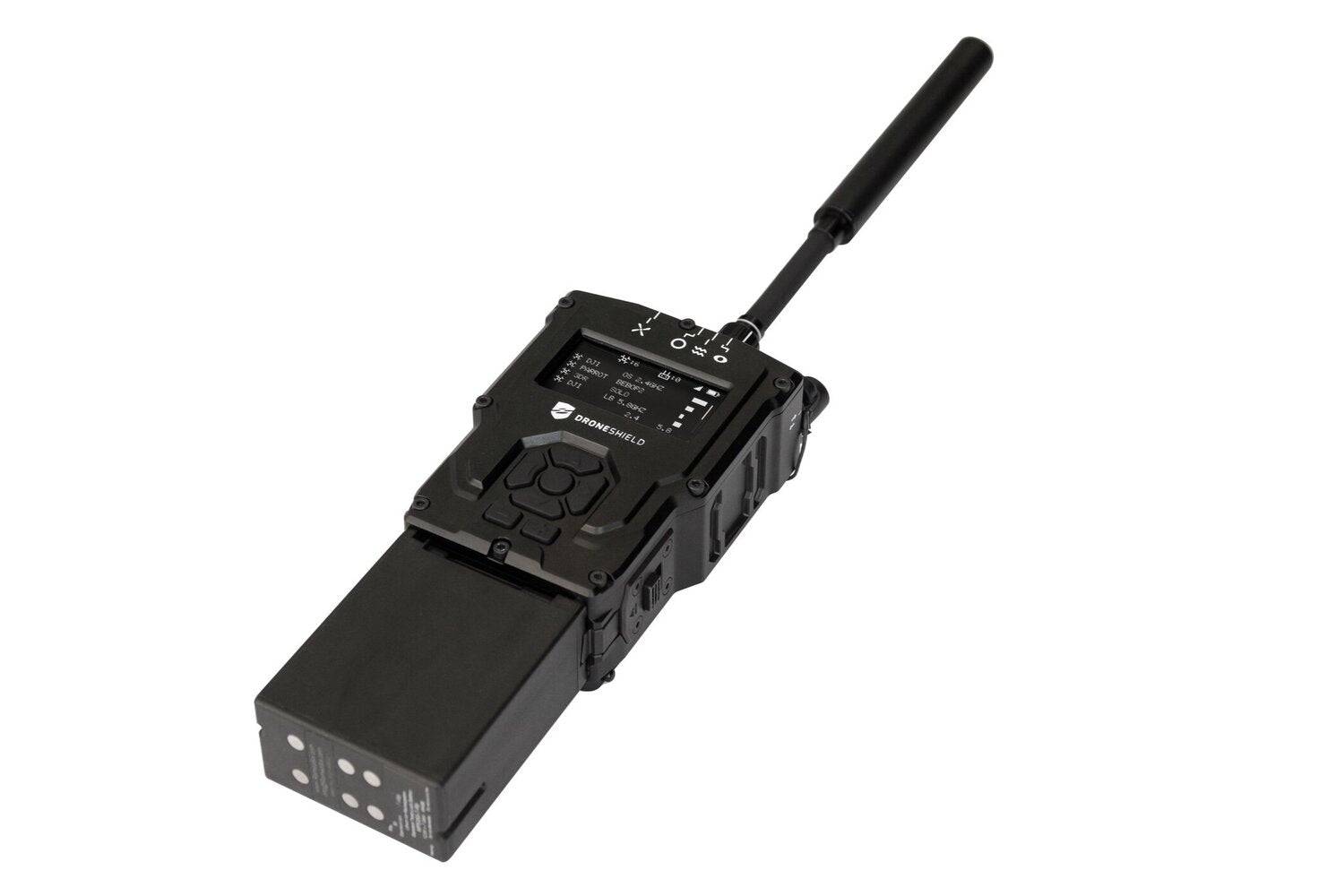

RfPatrol

Compact, Wearable Detector

RfPatrol is a highly versatile, wearable UAS detection device. The device offers the user real situational awareness without distraction or complex operation. It has been designed to be highly effective for a variety of operators in a range of demanding environments. The RfPatrol device automatically detects drones moving at any speed.

The RfPatrol can be operated in two modes, ‘Stealth’ and ‘Glimpse’, allowing the user to control how they receive alerts.

The device is supported by easy to install, remote updates that allow the operator to keep their devices database up to date with the changing threat environment.



BENEFITS OF RFPATROL:

  • Effective Coverage: Detects a wide variety of UAS and remote controllers

  • Operationally Effective: Multiple power and attachment options provide the user flexibility (SWaP focus)

  • Easy to Use: Minimal technical training for operation required, highly portable design

  • Passive Device: No intentional RF emissions and no decryption of wireless protocols for quiet and safe operation

  • Additional Frequency Bands: Additional hardware and software upgrade path for capability expansion

  • DroneShield Advanced Technology : Device powered by DroneShield latest SDR scanning technology

  • Bigger Picture: Data feed output to Battle Management System (custom as required)

  • Protected: Device and accessories supplied packed in rugged carry case

  • Integration: Supports integration into existing soldier battle management systems via existing API (available through JSON and gRPC) utilising net warrior compliant hardware



PRODUCT SPECIFICATIONS:

RfPatrol Specifications
Unit Weight: 800g (1.76lbs)
User Feedback: Visual, Haptic, Audible
Dimensions: 156.8mm x 92.0mm x 48.8mm
(6.17“ x 3.62“ x 1.92“) (excluding antenna’s & attachable battery)

Environment
Operating temperature: -20º to +60º C (-4ºF to +140ºF)
Designed to IP67

Battery Specifications (AN/PRC 152)
Rechargeable Lithium-Ion Battery, Quick release and reload battery
Common NATO-standard military grade battery
Battery Nominal Voltage: 10.8VDC
Battery Weight: 380g (0.83lbs)
Battery Dimensions: 71mm x 41mm x 86mm (2.8“ x 1.6“ x 3.4“)
Operating Time: 10 hrs+ (continuous operation)
Pass through charger available for extended use
Operating temperature: -30ºC to +60ºC (-22ºF to +140ºF)

Warranty
12 months from date of shipment
Longer warranty available on request

Shipping
Ships in a Rugged Carry Case (IP67)
Carry Case Dimensions: 525mm x 430mm x 215mm (20.6“ x 16.9“ x 8.4“)
HS Code: 85269130
