Wearable Drone Detector

RfPatrol is a highly versatile, wearable drone detection device. The device offers the user real situational awareness without distraction or complex operation. RfPatrol has been designed to be highly effective for a variety of operators in a range of demanding environments.

The RfPatrol can be operated in two modes, ‘Stealth’ and ‘Glimpse’, allowing the user to control how they receive alerts.

The device is supported by Link’ that allows operators to keep their devices database up to date with the changing threat environment.


  • Effective Coverage: Detects a wide variety of drones and remote controllers up to 1km (LoS)

  • Operationally Effective: Multiple power and attachement options provide the user flexiblity (SWaP focus)

  • Easy to Use: Minimal technical training for operation required, highly portable design

  • Passive Device: No intentional RF emissions and no decryption of wireless protocols for quiet and safe operation

  • Additional Frequency Bands: Additional hardware and software upgrade path for capablity expansion

  • DroneShield Advanced Technology : Device powered by Anti-Drone's latest SDR scanning technology

  • Bigger Picture: Data feed output to Battle Management System (custom as required)

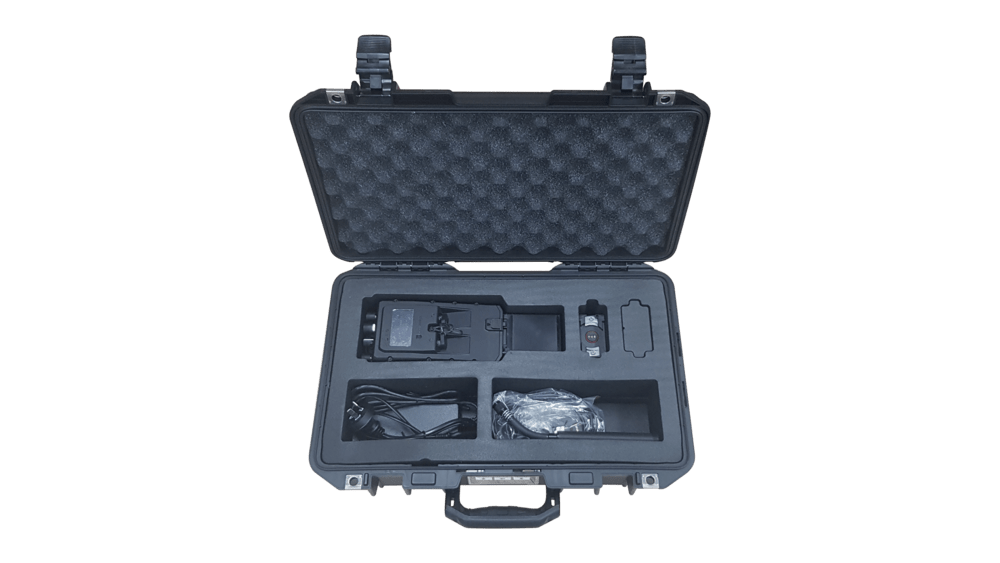

  • Protected: Device and accessories supplied packed in rugged carry case.


RfPatrol Specifications

  • Detection Range: >1km (0.65 miles) Line-of-Sight, Omni Directional
  • Unit Weight: 710g (1.5lbs)
  • User Feedback: Visual, Haptic, Audible
  • Dimensions: 201mm x 98mm x 64mm (7.9“ x 3.9“ x 2.5“) (excluding antenna’s & attachable battery)
  • Technology: Software Defined Radio
  • Detection Time: <5 secs (known frequency)
  • Detects: Drone Video & Control links
  • Colour: Matt Black/Desert


  • Operating temperature: 0º to + 50º C (32ºF to +122ºF)
  • Designed to IP67

Battery Specifications (AN/PRC 152)

  • Rechargeable Lithium-Ion Battery, Quick release and reload battery
  • Common NATO-standard military grade battery
  • Battery Nominal Voltage: 10.8VDC
  • Battery Weight: 380g (0.83lbs)
  • Battery Dimensions: 71mm x 41mm x 86mm (2.8“ x 1.6“ x 3.4“)
  • Operating Time: 10 hrs+ (continuous operation)
  • Pass through charger available for extended use
  • Operating temperature: -30ºC to +60ºC (-22ºF to +140ºF)
  • Carry Case Dimensions: 525mm x 430mm x 215mm (20.6“ x 16.9“ x 8.4“)
  • HS Code: 85269130
