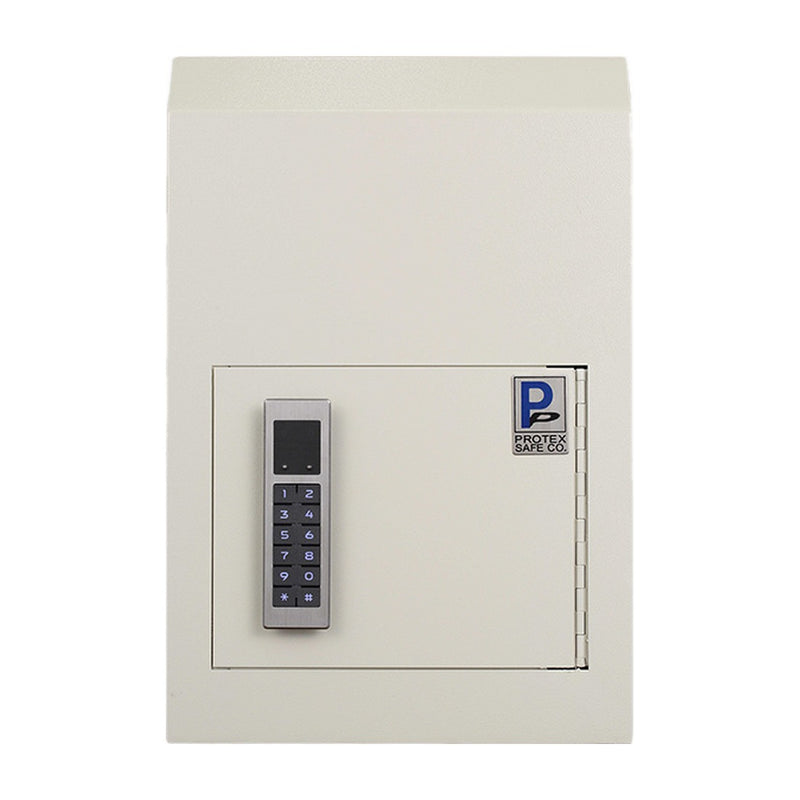

Protex Safe WSS-159E II Through-the-Door Drop Box With Electronic Lock
Protex WSS-159E II Through-the-Door Drop Box for Commercial and Agency Use
The Protex WSS-159E II is a through-the-door drop box for offices, rental counters and municipal buildings that need an after-hours drop through an existing door instead of a wall. Protex Safe Co. was founded in 1991 and is based in Irwindale, California. The specifications and features on this page come from Protex's published data for the WSS-159E II.
Specifications
| Exterior Dimensions | 10” (W) x 15” (H) x 4-1/4” (D) |
|---|---|
| Door Clearance | 7-1/8” (W) x 6-1/4” (H) |
| Drop Opening | 7-3/8” (W) x 1-3/8” (H) (7/8" drop clearance) |
| Door Thickness | 1/8” |
| Cubic Inches | 313 |
| Weight | 16 Lbs. |
Specification source: Protex Safe's published data for the WSS-159E II. Check critical dimensions against your opening before installation.
Construction and security features
- Battery operated electronic lock

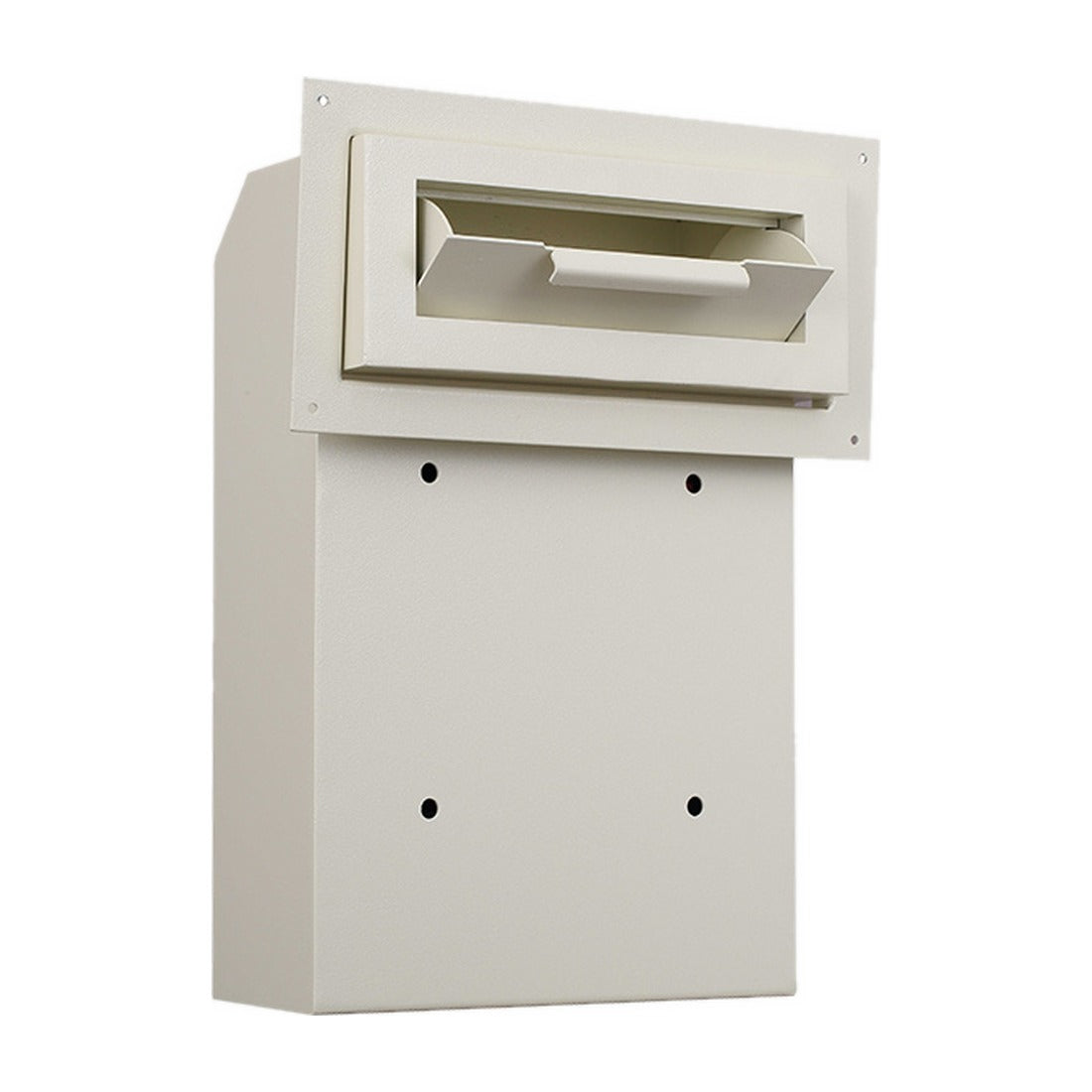

- Designed to be mounted on a door from the inside with the drop door showing through the outside
- Piano hinge
- Drop door opening thick enough to drop keys
- Metal baffle to protect drop opening from fishing
- Pre-drilled mounting holes in back for door mounting
- Mounting hardware for wood is included
- Four bolts included. Screw requirements are variable for each door, so screws are not included.
- Reinforced double steel door to protect against prying
- The perfect way to lock and secure cash, keys, mail, car remotes, small envelopes and more
- Use as a mail collection box for all out-going office mail
- Requires cutting a rectangular cutout in the door
- Includes a removable and adjustable metal frames to hide the rough cuts, inside and out
- Recommended for door thickness of 2 inches or less.
- Maximum thickness of item to drop is 1-1/8" thick
- Uses 3 AA batteries
- Easy to program
- Choose 1-8 digit code
- External Battery override contacts lets you power the lock from the outside if the batteries die
Where the WSS-159E II is used
The box mounts on the inside of a door with only the drop flap showing on the outside. Visitors drop payments, keys or envelopes, and staff collect them from inside through a locked steel door.
Installation
You will need to cut a rectangular opening in the door. Protex recommends a door thickness of 2 inches or less and includes an adjustable metal frame to cover the rough cut. Four bolts are included, but screws are not, because screw requirements vary by door.
Buying for an agency, school or multi-site rollout
Security Pro USA supplies federal, state, local and commercial buyers and can quote against a purchase order. For rollouts across several sites, we can confirm keying, freight to each location and lead time before you commit. Request a quote with the model number (WSS-159E II) and quantity, and we will send pricing, availability and delivery.
Related products
Browse all Protex Safe models, drop boxes, depository safes and safes and secure storage.
Frequently asked questions
What are the exterior dimensions of the Protex WSS-159E II?
Protex lists the WSS-159E II at 10” (W) x 15” (H) x 4-1/4” (D) externally. Measure your opening or mounting surface against that figure before ordering.
How thick is the steel door on the WSS-159E II?
Protex specifies a door thickness of 1/8”.
What lock does the WSS-159E II use?
Battery operated electronic lock. If you need matched keying across several sites, ask us before ordering.
Can we buy the Protex WSS-159E II on a purchase order?
Yes. Security Pro USA sells to federal, state, local and commercial buyers and can quote against a purchase order, including multi-unit and multi-site orders. Request a quote and we will confirm current pricing, lead time and freight.
