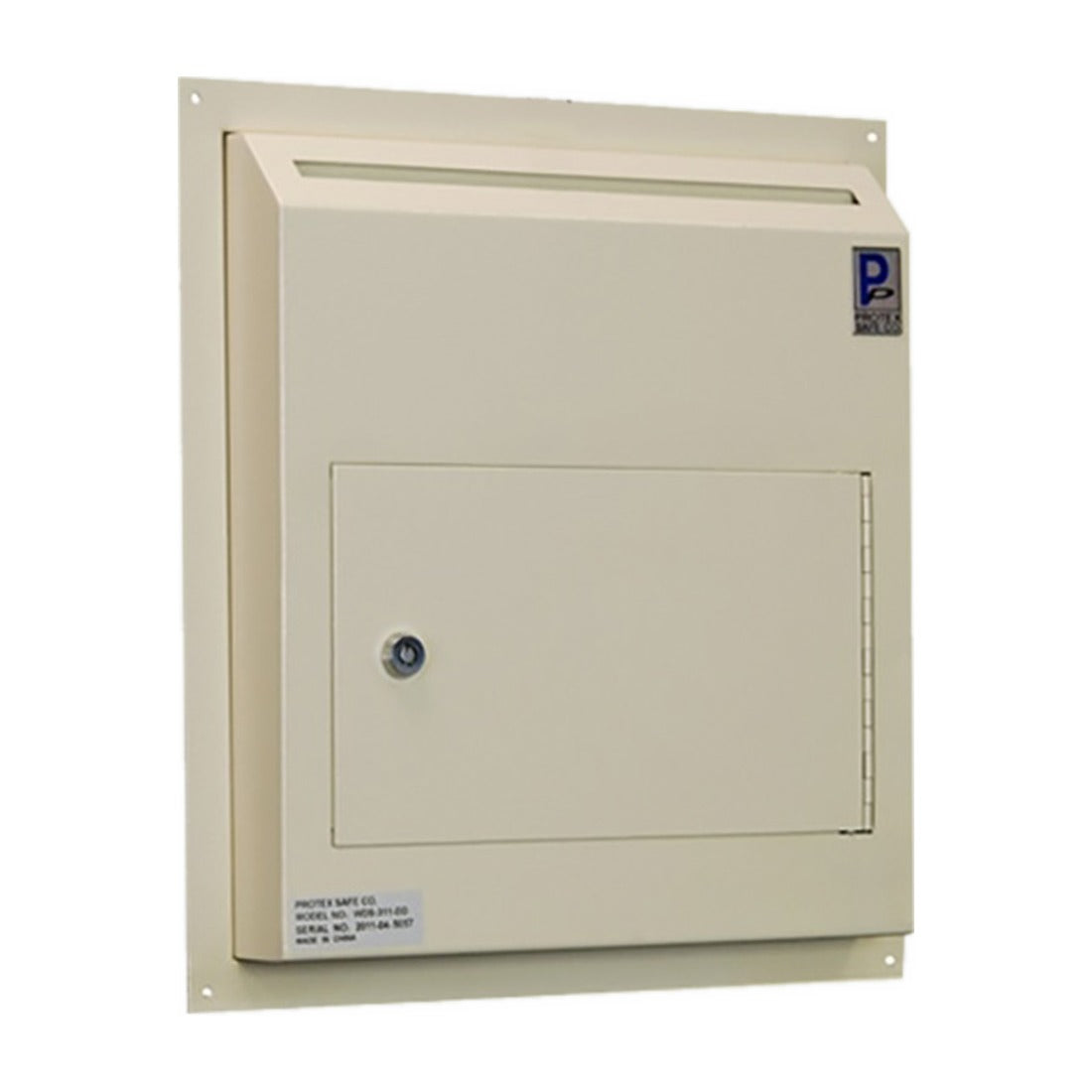

Protex Safe WDS-311-DD Through-the-Wall Dual Door Letter Drop Box
Protex WDS-311-DD Through-the-Wall Drop Box for Commercial and Agency Use
The Protex WDS-311-DD is a through-the-wall drop box for police department lobbies, property management offices, utility and municipal payment counters and car rental returns where people drop from a public corridor and staff collect from a secure room. Protex Safe Co. was founded in 1991 and is based in Irwindale, California. The specifications and features on this page come from Protex's published data for the WDS-311-DD.
Specifications
| Exterior Dimensions | 14” (W) x 15” (H) x 8-3/4” (D) |
|---|---|
| Door Clearance | 11-1/4” (W) x 5-1/4” (H) |
| Drop Opening | 12-3/8” (W) x 1/2” (H) |
| Door Thickness | 1/8” |
| Weight | 24 Lbs. |
Specification source: Protex Safe's published data for the WDS-311-DD. Check critical dimensions against your opening before installation.
Construction and security features
- Same features as the WDS-311 with additional door in front
- Piano hinge
- Drop slot opening (12-3/8") long enough to drop legal size paper or large envelopes
- Metal baffle to protect drop opening from fishing
- Pre-drilled mounting holes on sides for in-the-wall installation
- Installation hardware included
- Two tubular keys included
- Reinforced double steel door to protect against prying
- The perfect way to lock and secure rent checks, letters, mail, cash payments, large envelopes and more
- Drop from the front and remove from front or back
- Designed to be installed in the wall between standard (16" on center) wall studs
- Requires cutting the drywall between the studs

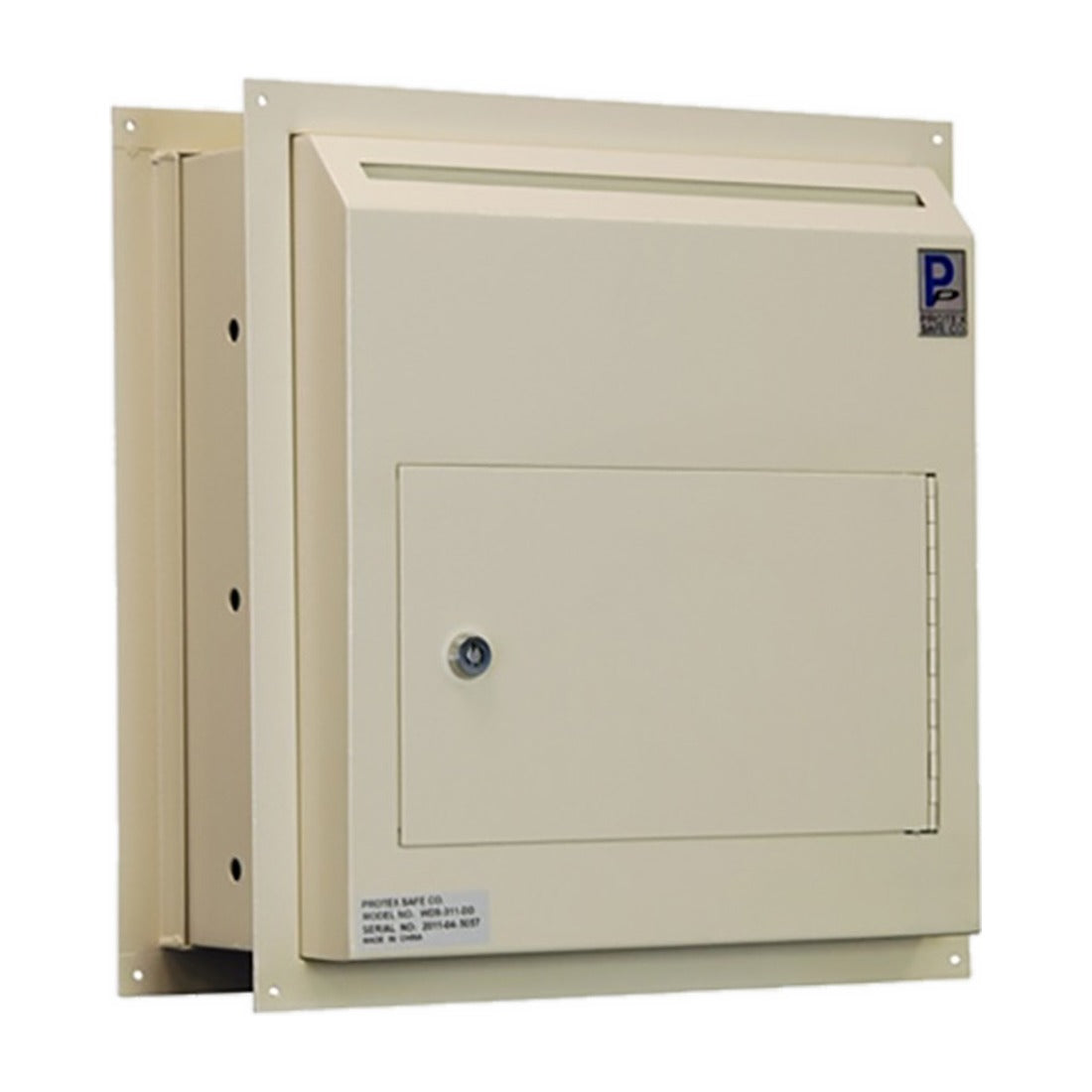

- Includes two removable and adjustable metal frames to hide the rough cuts
- Maximum thickness of item to drop is 1/2" thick
- Recommended wall thickness for proper installation is between 4 and 10 inches
Where the WDS-311-DD is used
A through-the-wall box puts the drop slot on the public side and the locked collection door on the staff side. Visitors never get near the contents, and staff can empty the box without opening a counter or leaving the secure area.
Installation
These boxes are designed to fit between standard wall studs 16" on center. Protex recommends a finished wall thickness of 4 to 10 inches. You will need to cut the drywall between the studs, and Protex includes two removable, adjustable metal frames to cover the rough cuts. Confirm stud spacing and wall thickness before the install date.
Buying for an agency, school or multi-site rollout
Security Pro USA supplies federal, state, local and commercial buyers and can quote against a purchase order. For rollouts across several sites, we can confirm keying, freight to each location and lead time before you commit. Request a quote with the model number (WDS-311-DD) and quantity, and we will send pricing, availability and delivery.
Related products
Browse all Protex Safe models, drop boxes, depository safes and safes and secure storage.
Frequently asked questions
What are the exterior dimensions of the Protex WDS-311-DD?
Protex lists the WDS-311-DD at 14” (W) x 15” (H) x 8-3/4” (D) externally. Measure your opening or mounting surface against that figure before ordering.
How thick is the steel door on the WDS-311-DD?
Protex specifies a door thickness of 1/8”.
What lock does the WDS-311-DD use?
The perfect way to lock and secure rent checks, letters, mail, cash payments, large envelopes and more. If you need matched keying across several sites, ask us before ordering.
Can we buy the Protex WDS-311-DD on a purchase order?
Yes. Security Pro USA sells to federal, state, local and commercial buyers and can quote against a purchase order, including multi-unit and multi-site orders. Request a quote and we will confirm current pricing, lead time and freight.
