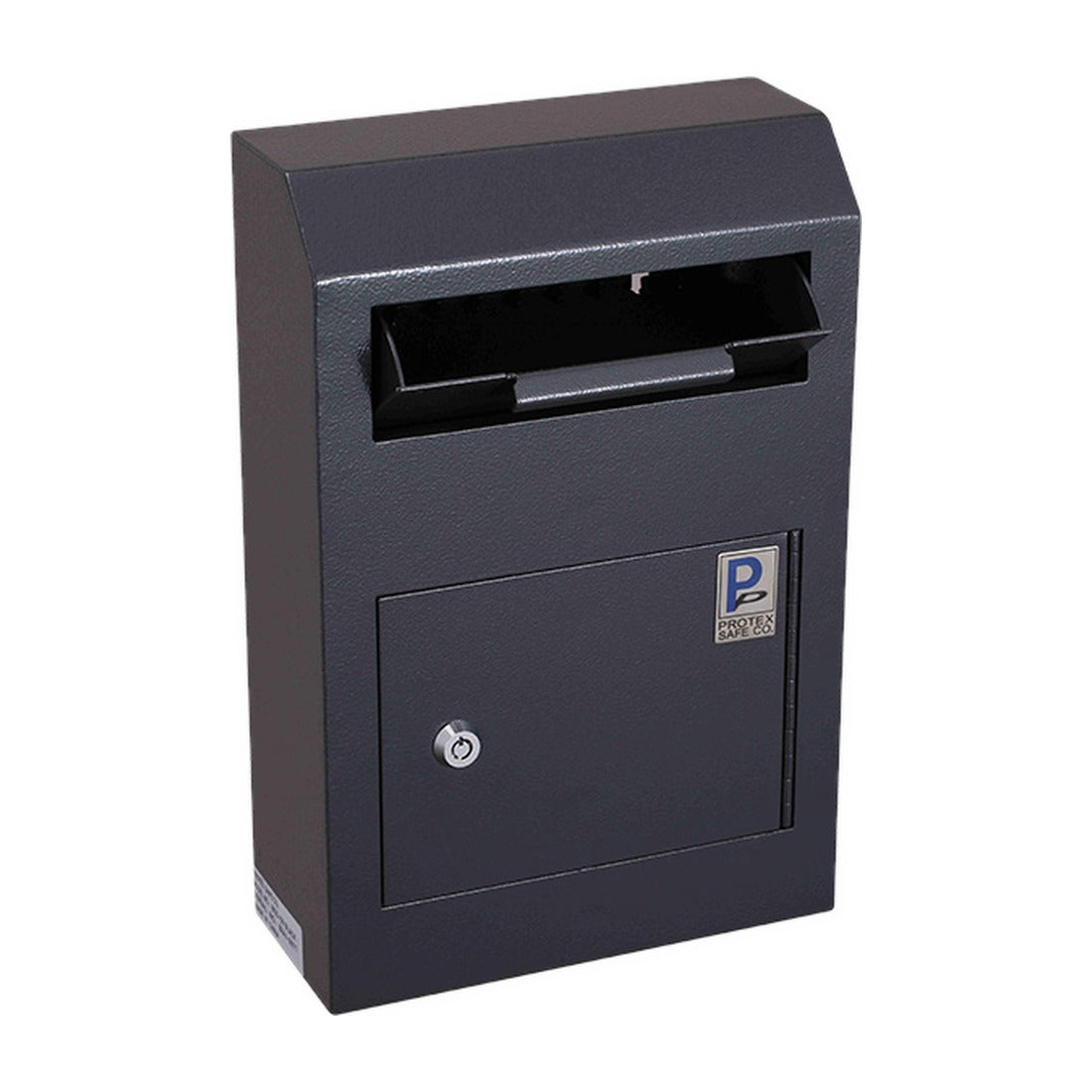

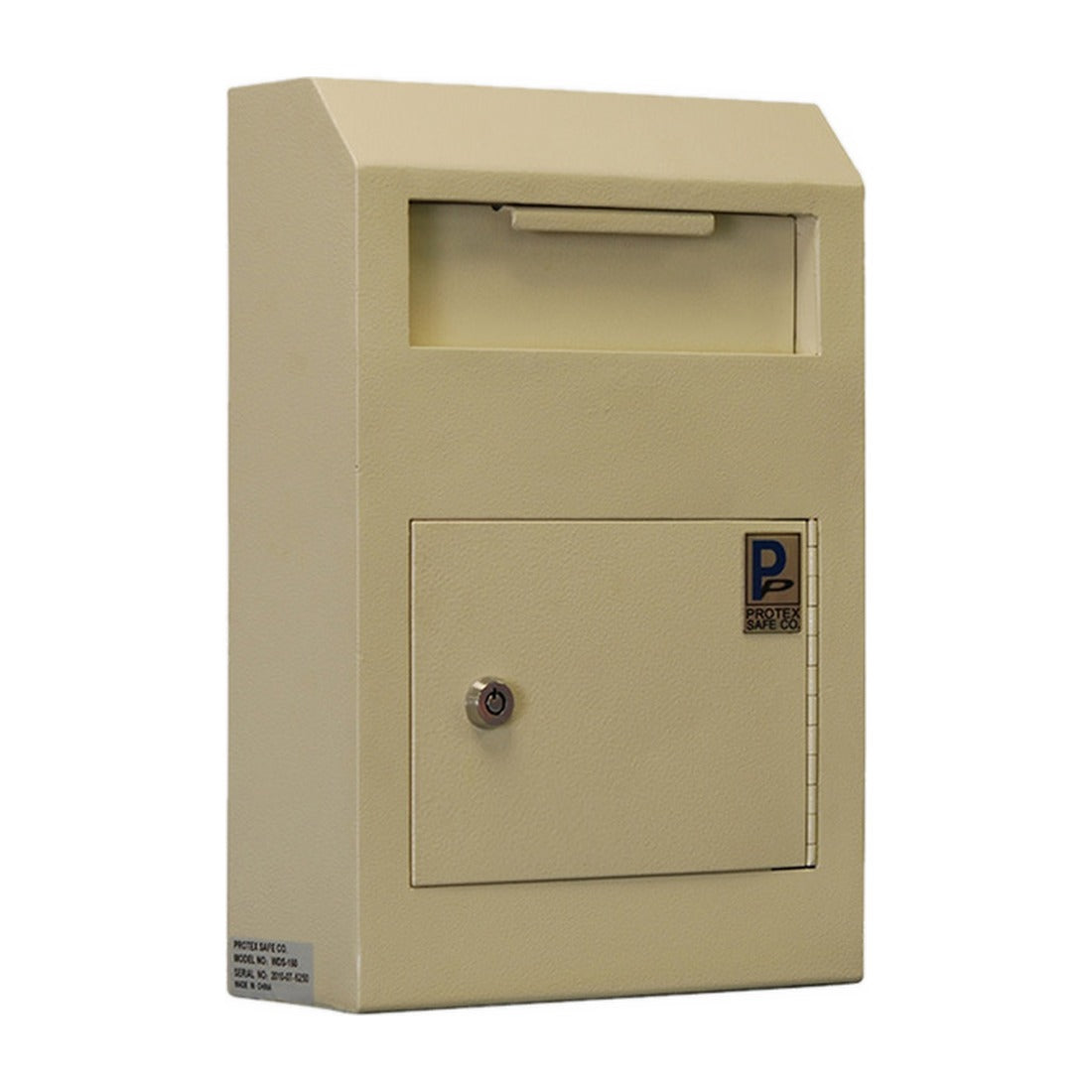

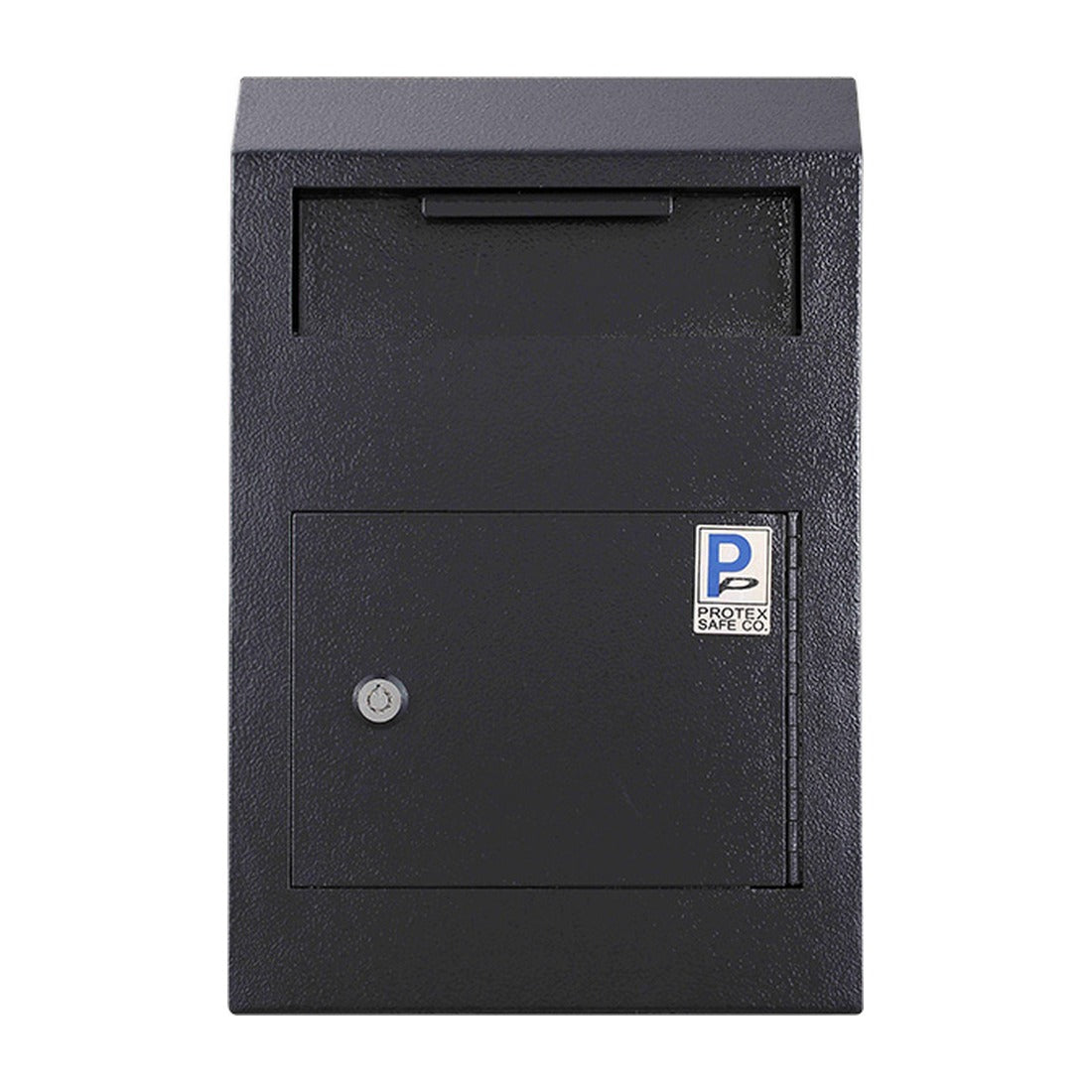

Protex Safe WDS-150 Wall Mount Drop Box With Tubular Lock
Protex WDS-150 Wall Mount Drop Box for Commercial and Agency Use
The Protex WDS-150 is a wall mount drop box for property management offices, rental and service counters, schools, HOA offices and municipal buildings that need an after-hours drop for rent checks, payments, keys and envelopes. It is available in beige and black. Protex Safe Co. was founded in 1991 and is based in Irwindale, California. The specifications and features on this page come from Protex's published data for the WDS-150.
Specifications
| Exterior Dimensions | 10” (W) x 15” (H) x 4-1/4” (D) |
|---|---|
| Door Clearance | 7-1/8” (W) x 6-1/4” (H) |
| Drop Opening | 7-3/8” (W) x 1-3/8” (H) (7/8" drop clearance) |
| Door Thickness | 1/8” |
| Cubic Inches | 313 |
| Weight | 15 Lbs. |
Specification source: Protex Safe's published data for the WDS-150. Check critical dimensions against your opening before installation.
Construction and security features

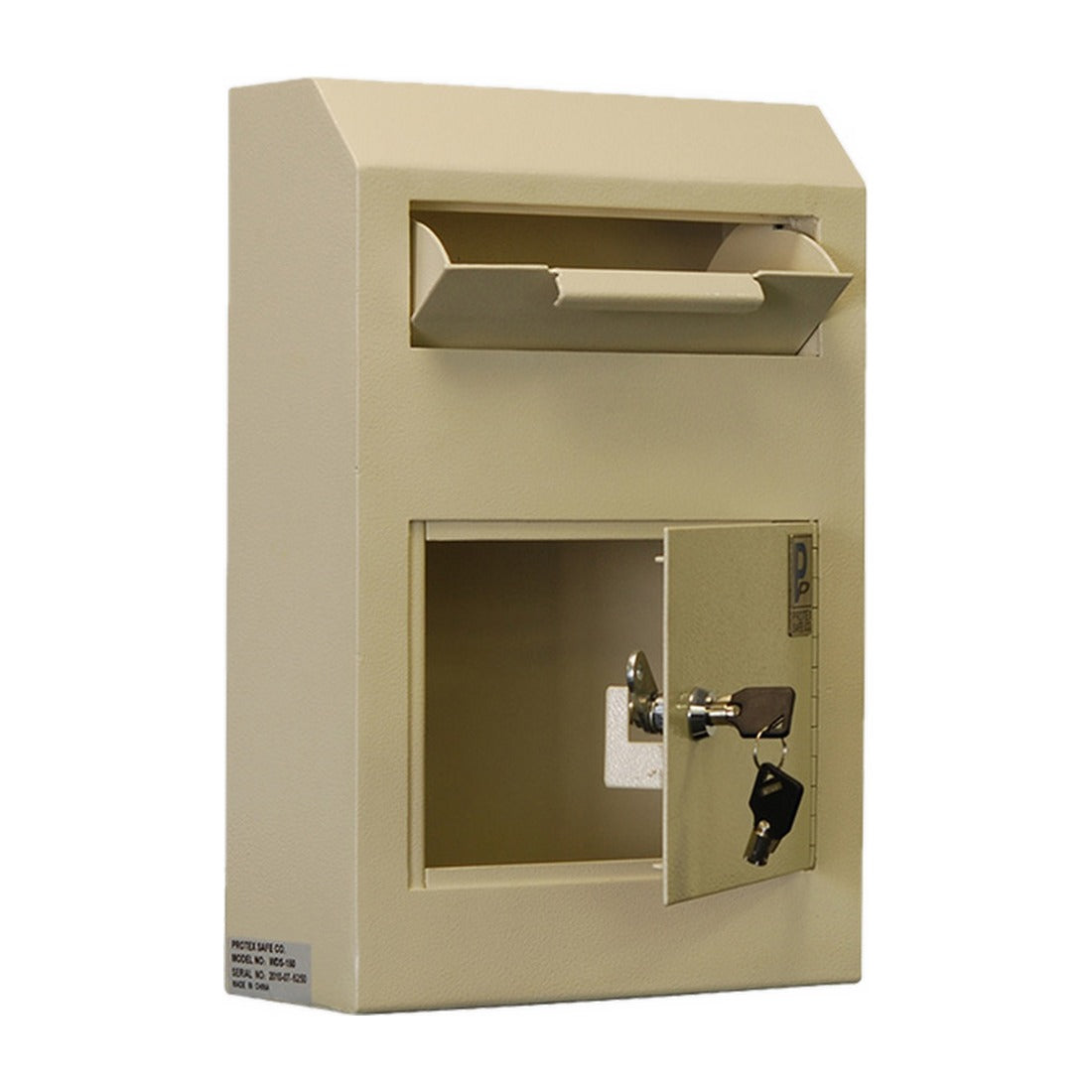

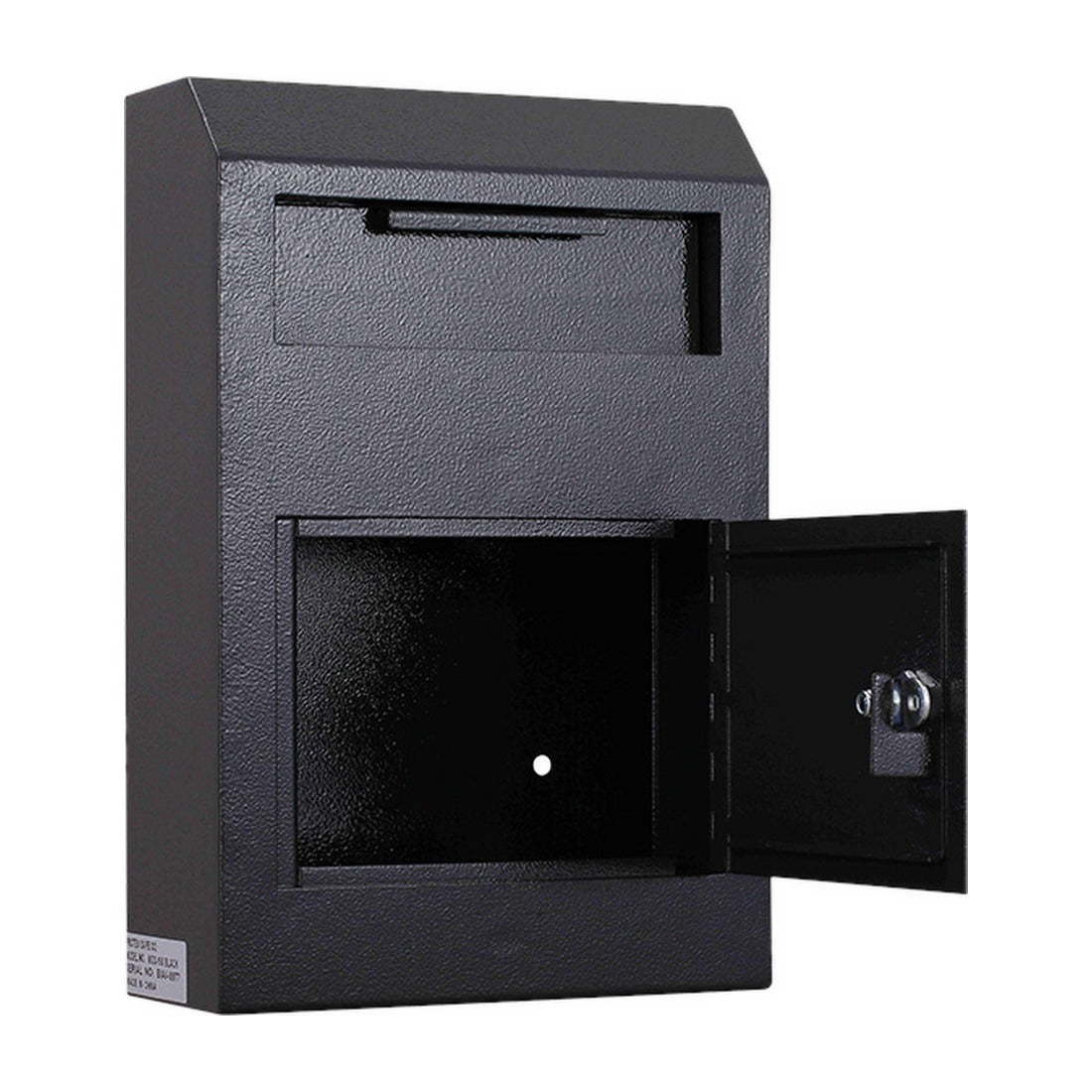

- Tubular-style key lock with Double "D" configuration (can be retrofitted with other cam locks)
- Two tubular keys included
- Piano hinge
- Drop door opening thick enough to drop keys

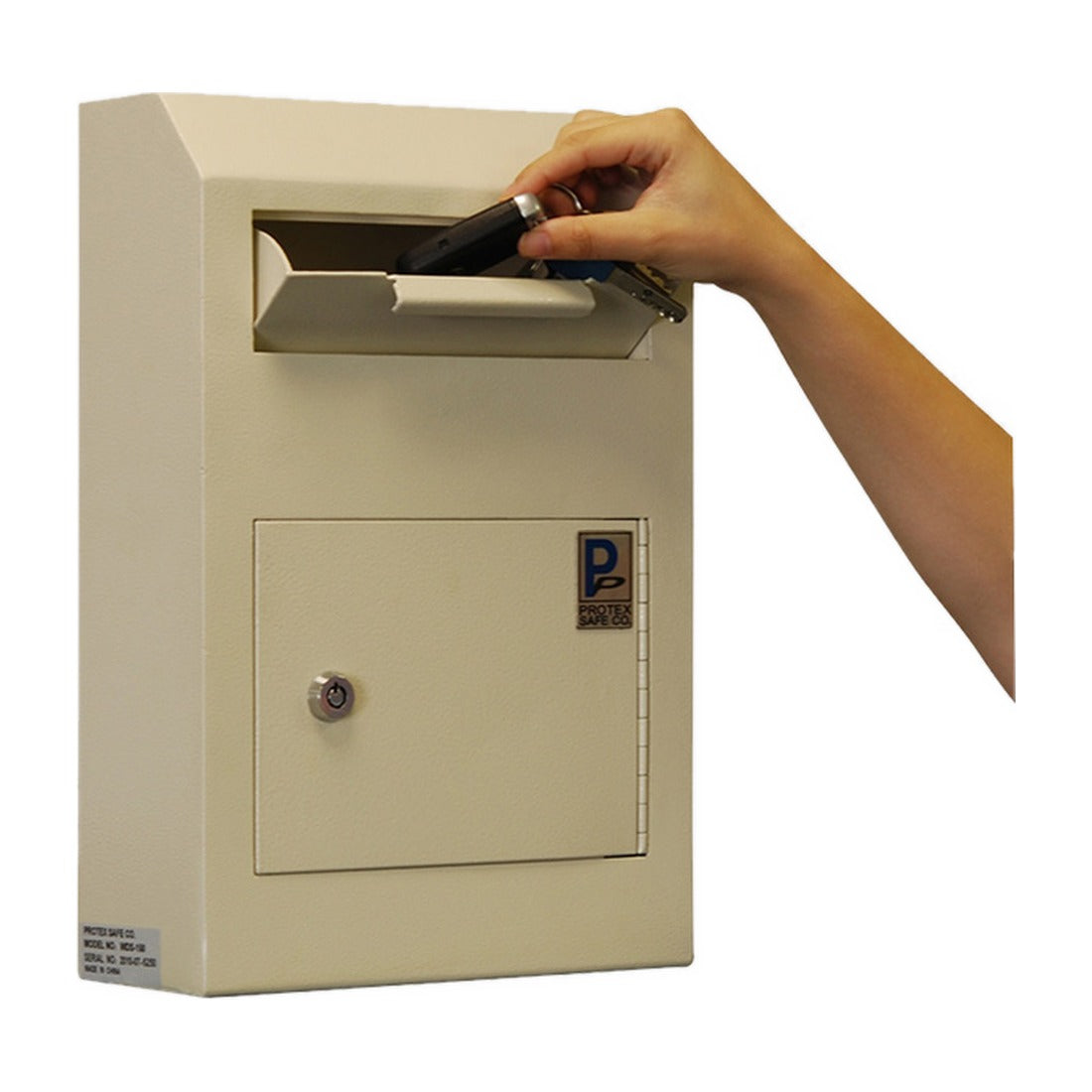

- Metal baffle to protect drop opening from fishing
- Pre-drilled mounting holes in back for wall mounting
- Mounting hardware for wood and concrete is included
- Reinforced double steel door to protect against prying
- The perfect way to lock and secure cash, keys, mail, car remotes, small envelopes and more
- Use as a mail collection box for all out-going office mail
- Maximum thickness of item to drop is 7/8" thick
Where the WDS-150 is used
A wall-mount drop box gives visitors a slot for checks, keys and envelopes, keeps the contents behind a locked steel door and lets staff collect them later. The anti-fishing baffle stops a deposit from being pulled back out through the slot.
Installation
Pre-drilled holes in the back allow surface wall mounting, and Protex includes mounting hardware for wood and concrete. Fix it into masonry or structural framing rather than drywall alone.
Buying for an agency, school or multi-site rollout
Security Pro USA supplies federal, state, local and commercial buyers and can quote against a purchase order. For rollouts across several sites, we can confirm keying, freight to each location and lead time before you commit. Request a quote with the model number (WDS-150) and quantity, and we will send pricing, availability and delivery.
Related products
Browse all Protex Safe models, drop boxes, depository safes and safes and secure storage.
Frequently asked questions
What are the exterior dimensions of the Protex WDS-150?
Protex lists the WDS-150 at 10” (W) x 15” (H) x 4-1/4” (D) externally. Measure your opening or mounting surface against that figure before ordering.
How thick is the steel door on the WDS-150?
Protex specifies a door thickness of 1/8”.
What lock does the WDS-150 use?
Tubular-style key lock with Double "D" configuration (can be retrofitted with other cam locks). If you need matched keying across several sites, ask us before ordering.
Can we buy the Protex WDS-150 on a purchase order?
Yes. Security Pro USA sells to federal, state, local and commercial buyers and can quote against a purchase order, including multi-unit and multi-site orders. Request a quote and we will confirm current pricing, lead time and freight.
