Protex Safe RX-164 Prescription Drug Drop Box With Tubular Lock
Protex RX-164 Prescription Drop Box for Commercial and Agency Use
The Protex RX-164 is a prescription drop box for pharmacies, clinics, police department lobbies and community take-back programs that collect unwanted prescription medication. Protex Safe Co. was founded in 1991 and is based in Irwindale, California. The specifications and features on this page come from Protex's published data for the RX-164.
Specifications
| Exterior Dimensions | 14-1/8” (W) x 15-3/4” (H) x 6-5/8” (D) |
|---|---|
| Interior Dimensions | 13-3/4" (W) x 6" (H) x 6" (D) |
| Door Clearance | 8-1/4” (W) x 5” (H) |
| Drop Opening | 9-1/2” (W) x 2-1/4” (H) (2-1/4" drop clearance) |
| Door Thickness | 1/8” |
| Weight | 21 Lbs. |
Specification source: Protex Safe's published data for the RX-164. Check critical dimensions against your opening before installation.
Construction and security features
- Tubular-style key lock with Double "D" configuration (can be retrofitted with other cam locks).
- Piano hinge

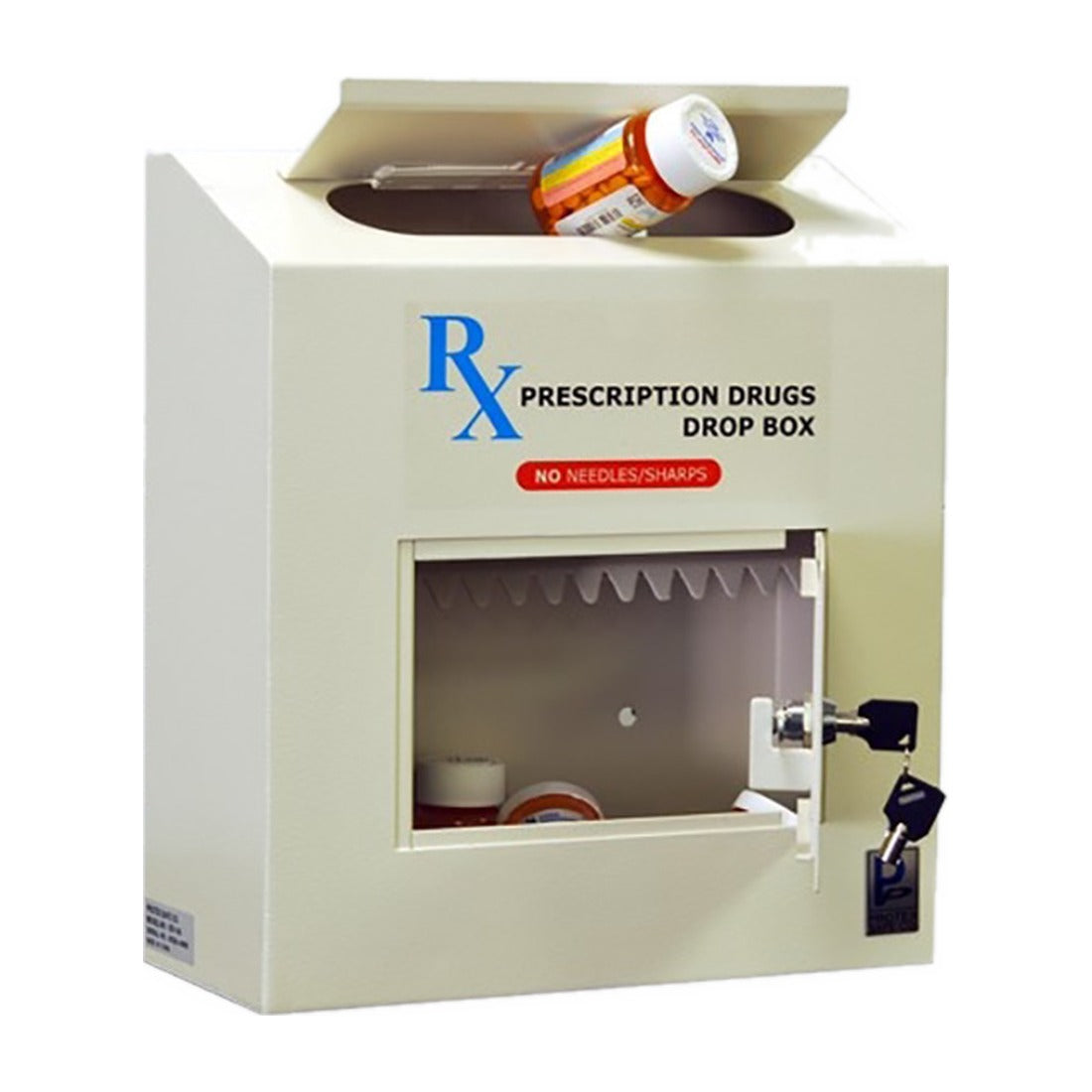

- Drop door opening thick enough to drop up to 2-1/4" diameter containers
- Metal baffle to protect drop opening from fishing
- Pre-drilled mounting holes in back for wall mounting
- Can be set on a table or a shelf
- Mounting hardware for wood and concrete is included
- Two tubular keys included
- Reinforced double steel door to protect against prying
- The perfect way to lock and secure unwanted prescriptions or other bulky items
- RX-Label comes unattached, so you can use it for other applications
- Maximum diameter of item to drop is 2.25"
Where the RX-164 is used

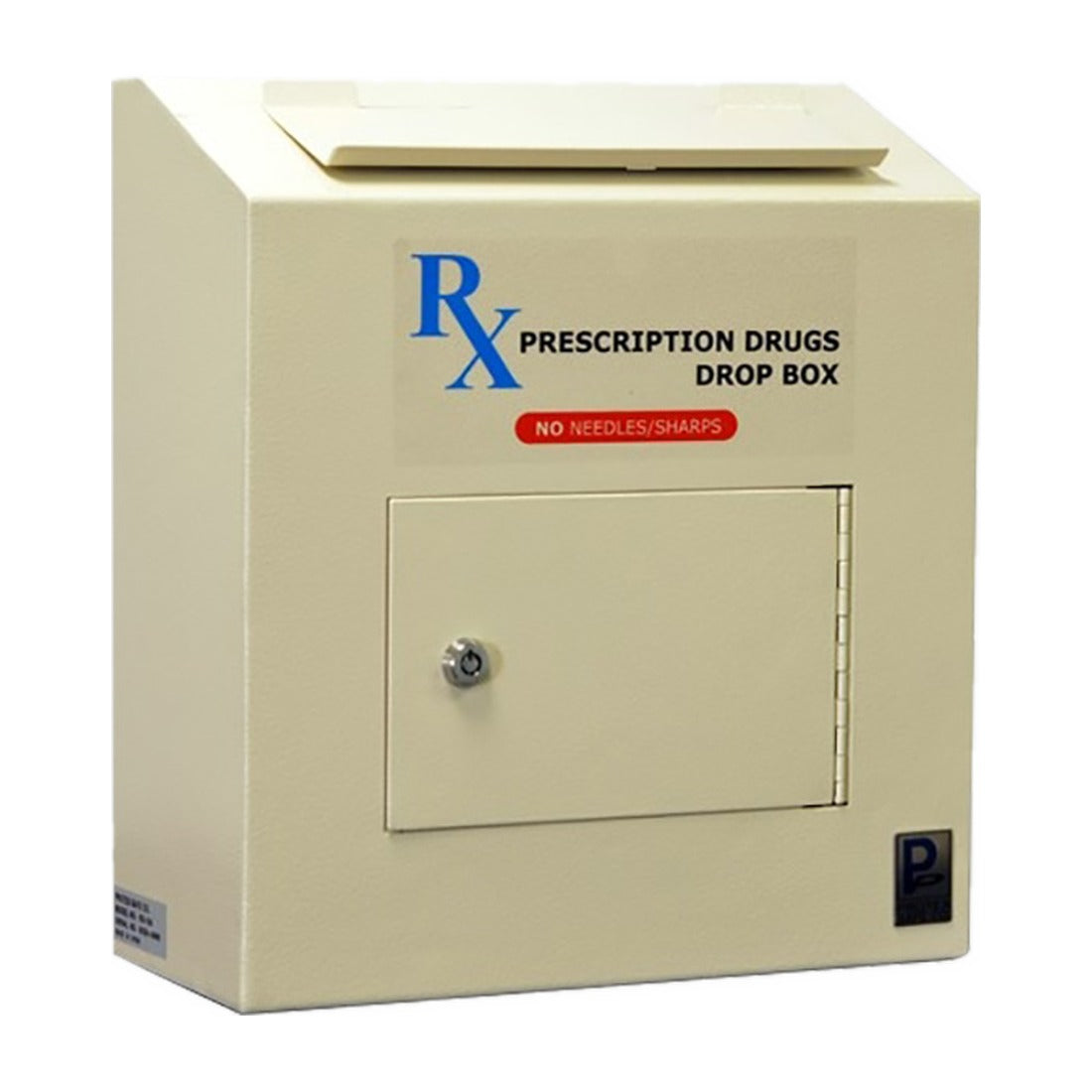

The RX-164 gives the public a simple drop opening for medication bottles and other bulky items, with the contents behind a locked steel door. Protex supplies the RX label unattached, so the same box can be used for another purpose if you prefer. Collection of controlled substances is regulated; confirm your program's requirements before you specify the box. Protex does not describe this model as DEA-registered collection equipment and we make no such claim.
Installation
The RX-164 has pre-drilled holes in the back for wall mounting, and Protex includes mounting hardware for wood and concrete. It can also sit on a table or shelf, but fixing it to the wall is the more secure installation.
Buying for an agency, school or multi-site rollout
Security Pro USA supplies federal, state, local and commercial buyers and can quote against a purchase order. For rollouts across several sites, we can confirm keying, freight to each location and lead time before you commit. Request a quote with the model number (RX-164) and quantity, and we will send pricing, availability and delivery.
Related products
Browse all Protex Safe models, drop boxes, depository safes and safes and secure storage.
Frequently asked questions
What are the exterior dimensions of the Protex RX-164?
Protex lists the RX-164 at 14-1/8” (W) x 15-3/4” (H) x 6-5/8” (D) externally. Measure your opening or mounting surface against that figure before ordering.
How thick is the steel door on the RX-164?
Protex specifies a door thickness of 1/8”.
What lock does the RX-164 use?
Tubular-style key lock with Double "D" configuration (can be retrofitted with other cam locks). If you need matched keying across several sites, ask us before ordering.
Can we buy the Protex RX-164 on a purchase order?
Yes. Security Pro USA sells to federal, state, local and commercial buyers and can quote against a purchase order, including multi-unit and multi-site orders. Request a quote and we will confirm current pricing, lead time and freight.
