Heavy Vehicle Barrier - HERCULES 100
vehicle barrier - hercules 100
Mobile Vehicle Barriers

Mifram Security Hercules 100 - Heavy Vehicle Barrier

Mifram Security

This product is available.

Mifram Security Mobile Vehicle Barrier - HERCULES 100

Perimeter Security Solutions

Mobile Vehicle Barriers| Modular Vehicle Barrier System |  | Heavy Vehicle Barrier | Anti Ram Vehicle Barriers

The first modular and mobile barrier that stops heavy trucks barrier weighing up to 18 Ton. Ideal for fast deployment, multiterrain asphalt and gravel.

Suitable also for urban areas and high level threats zones. A MUST-HAVE for every perimeter security professional.

Heavy Vehicle Barrier

Hercules 100 Heavy Vehicle Barrier Features

Patent Pending technology: the horizontal momentum is converted to a vertical momentum both downward and upwards Flexible length –

individual units fit both together or apart to suit varying vehicle and road sizes Designed for use on sandy, rocky and rough terrain, gravel and asphalt.

  • Basic color: Black & Yellow
  • Assembled by two agents

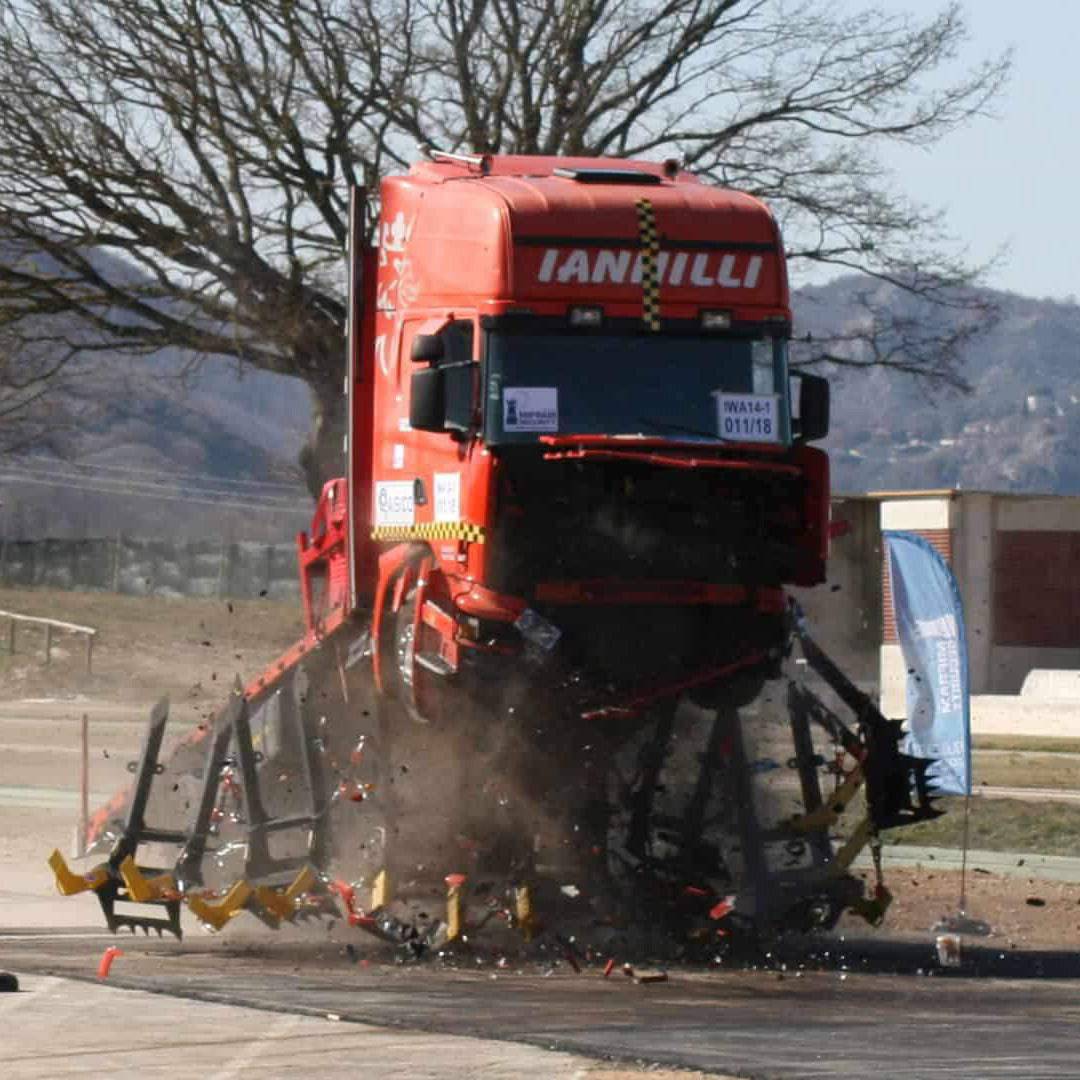

Hercules 100 Vehicle Barrier is Tested & Certified to stop all heavy Vehicle !

IWA 14 -1: 2013 VSB V/12000 (N3D)/48/90:7.7 Tested at 12,000 kg @ 50 km/hr
[ 26,460 lbs. @ 31.0 mi/h] – Penetration 7.7 m [25.26 ft.]

ASTM – F2656-15: Barrier Rating U/12000/50 Tested at 12,000 kg @ 50 km/hr
[ 26,460 lbs. @ 31.0 mi/h] – Penetration 5.9 m [19.36 ft.]

711 KJ Energy Absorption – Equal to 95 Concrete blocks of 1M³ (2.4 Ton) Movement for 1 Meter Distance.

vehicle barriers certifications

Hercules 100 Vehicle Barriers Advantages

  • Cost-effective
  • Quick installation
  • Comes apart for easy and efficient storage
  • Transportable by plane, helicopter, small pick-up truck, jeep, station
  • wagon, boat, etc.
  • No maintenance
  • No breakdowns


Safety lights and signs
Hercules-TruckMen – Can stops vehicles and people
The barrier can be used as a platform for advertisements

DIMENSIONS [single unit]

~5.9 ft. ~180 cm Length
~3.61 ft. ~110 cm Width
~4.1 ft. ~125 cm Height
~385.9 lbs. ~175 kg Weight
~121.3 lbs. ~55 kg Heaviest Part

Hercules Mobile Barrier
