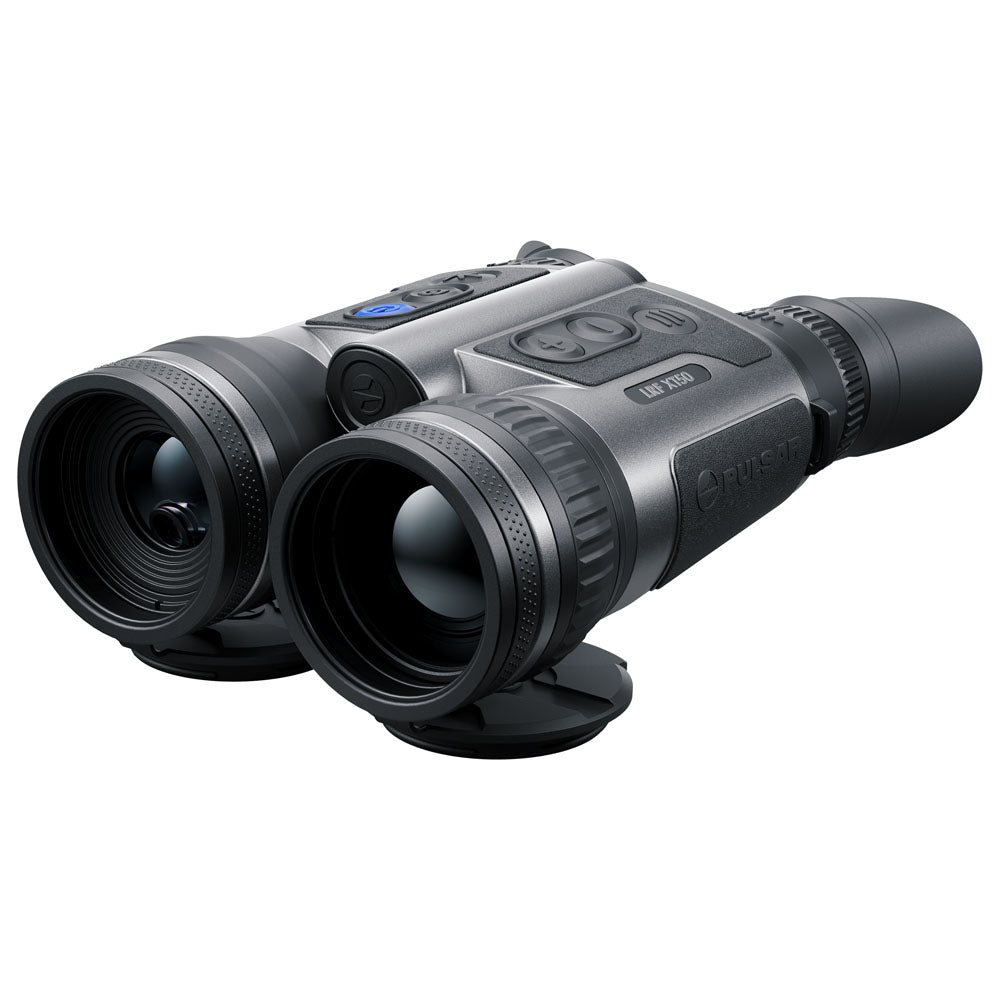

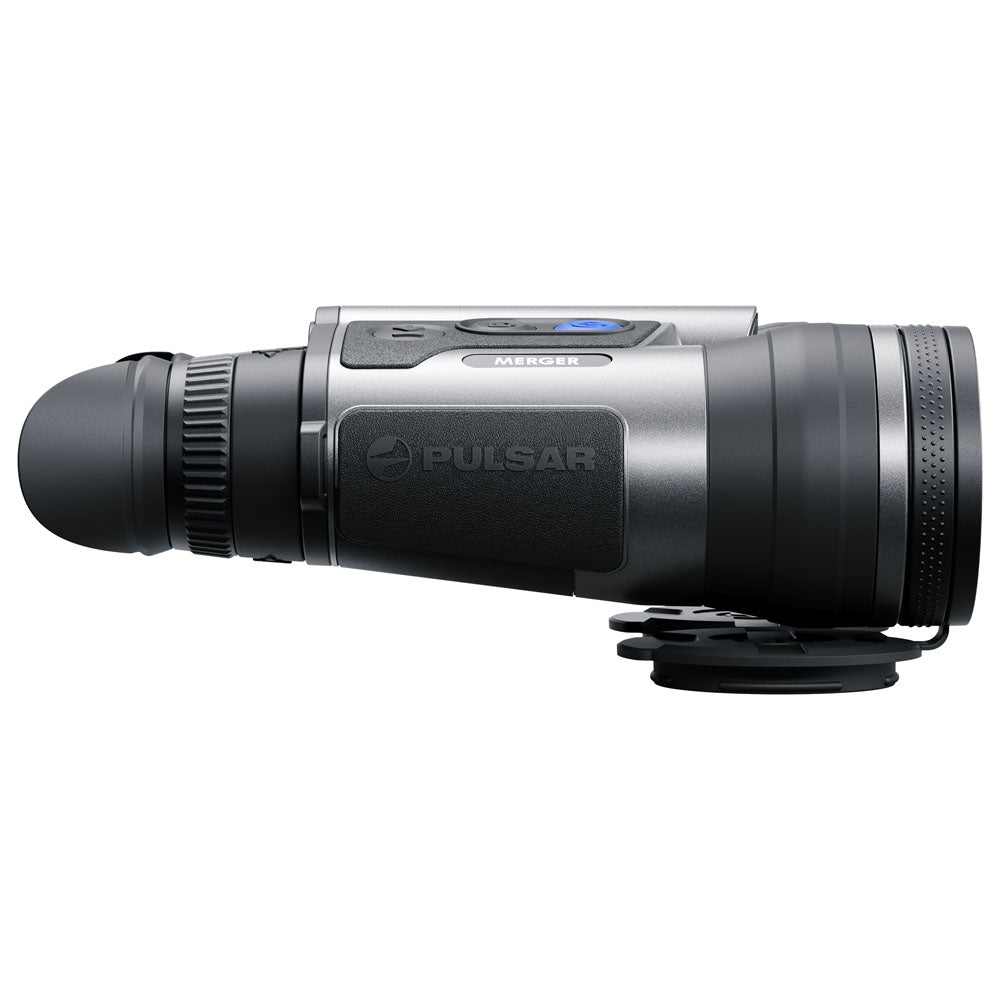

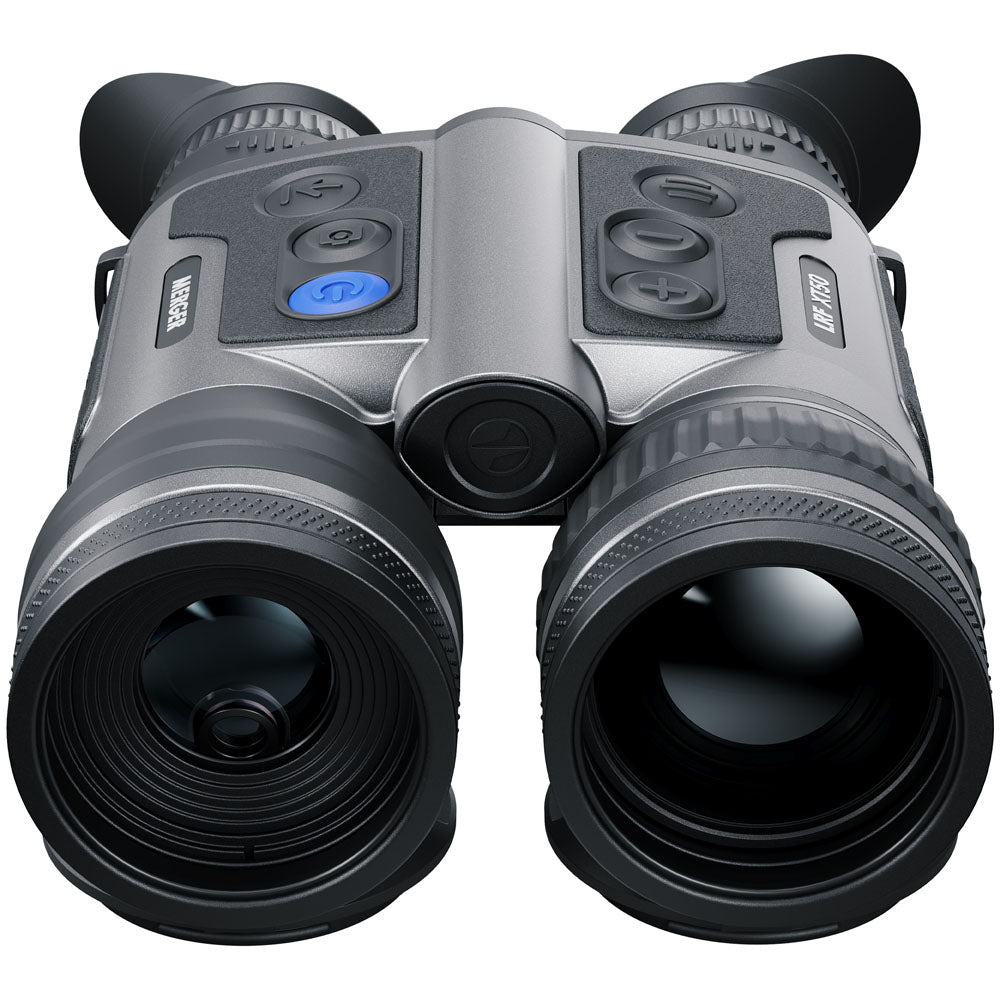

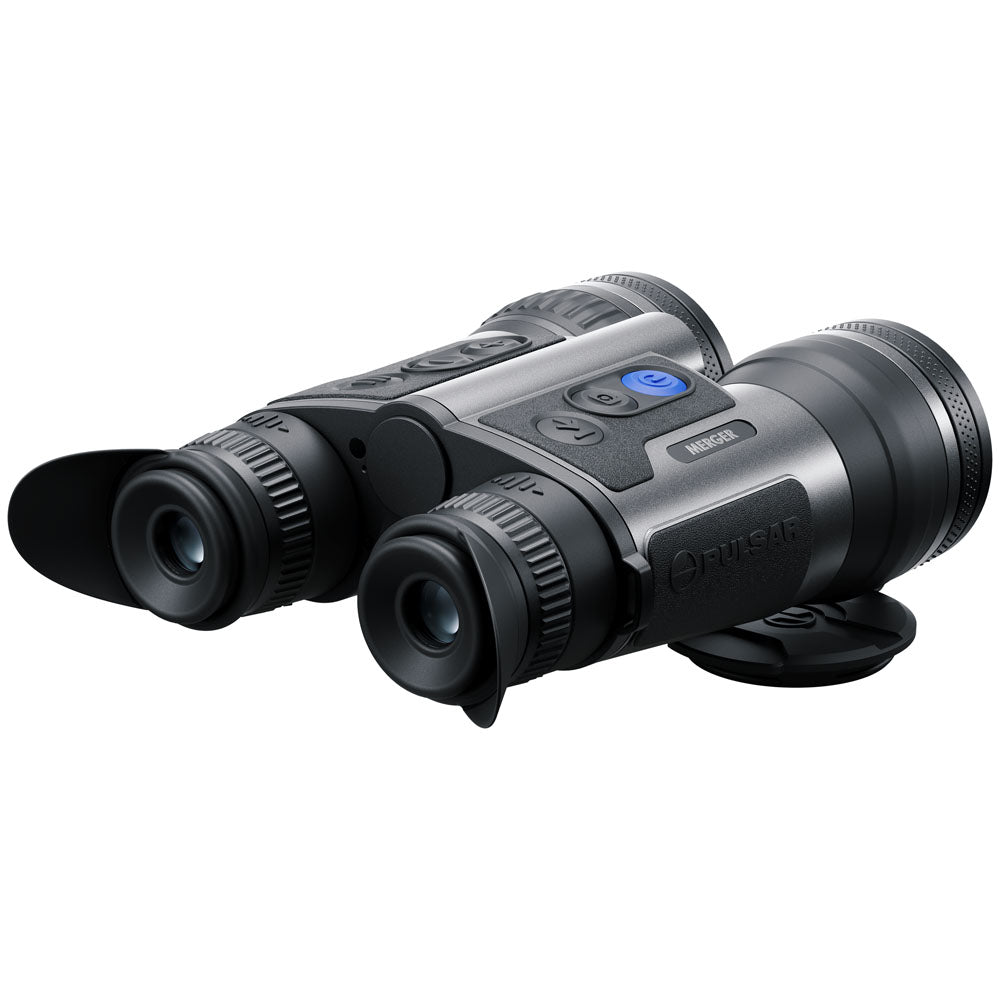

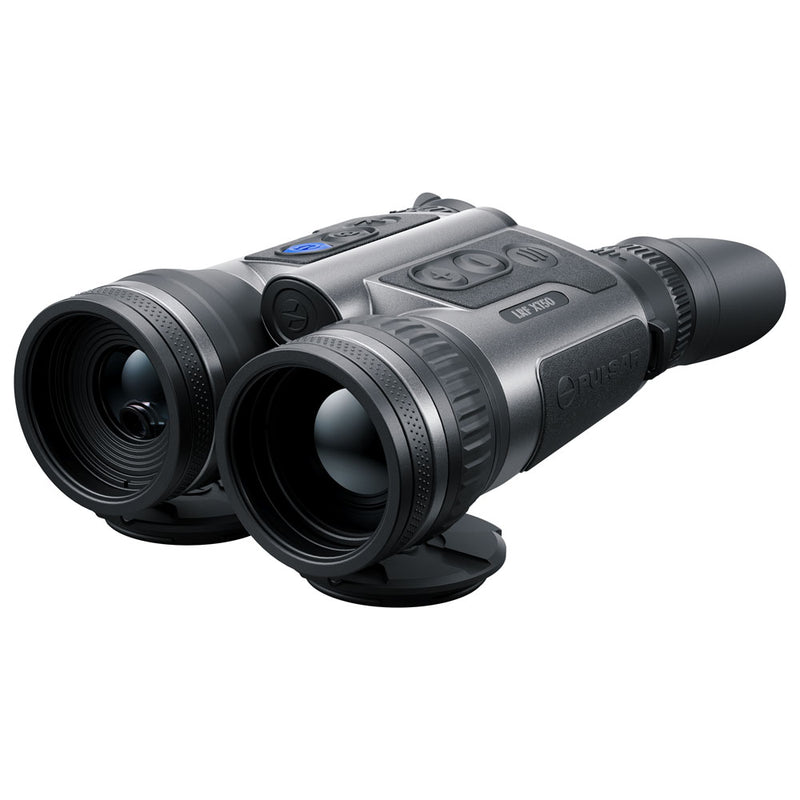

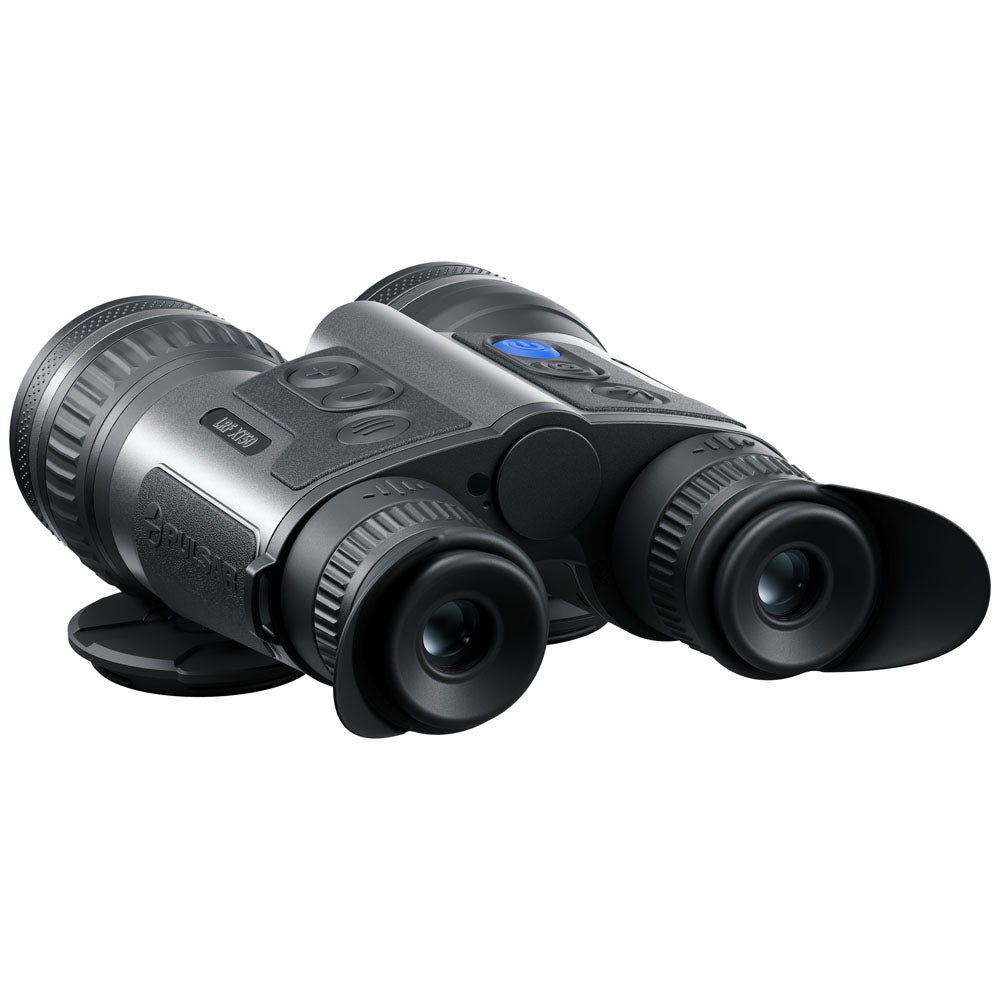

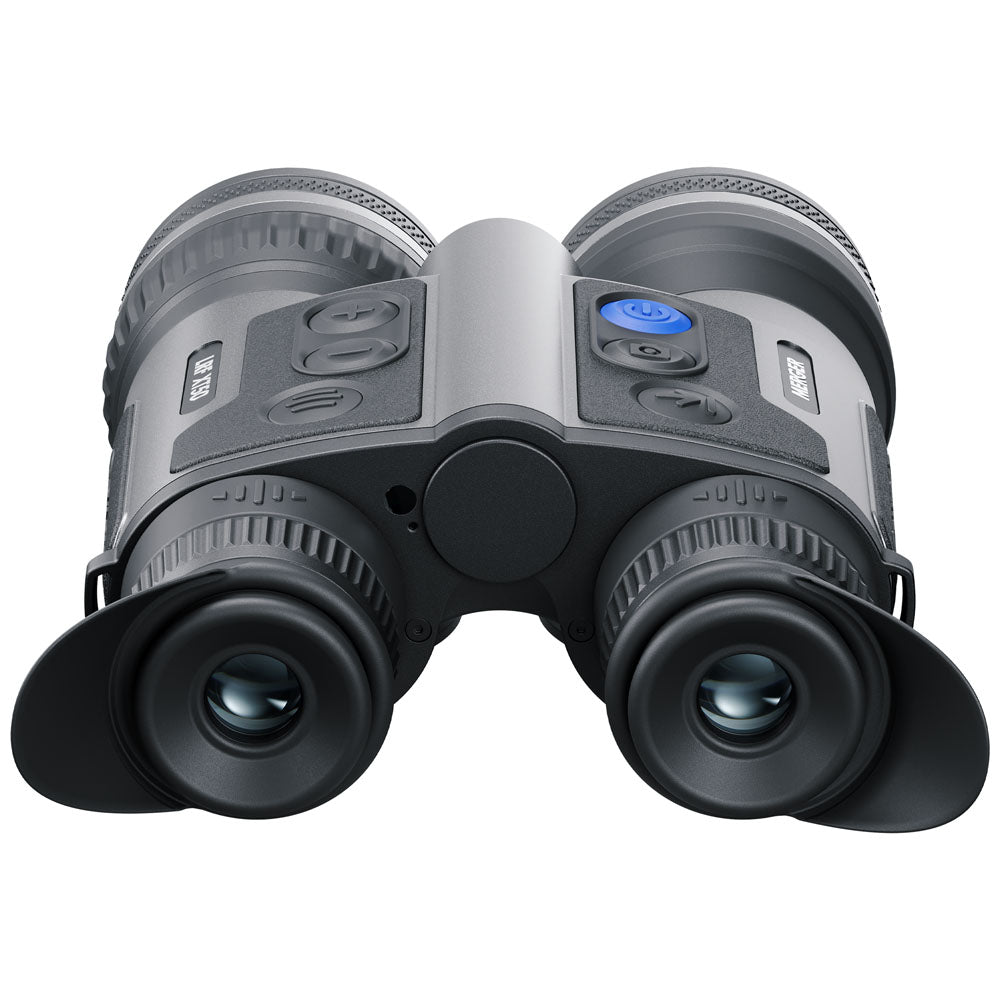

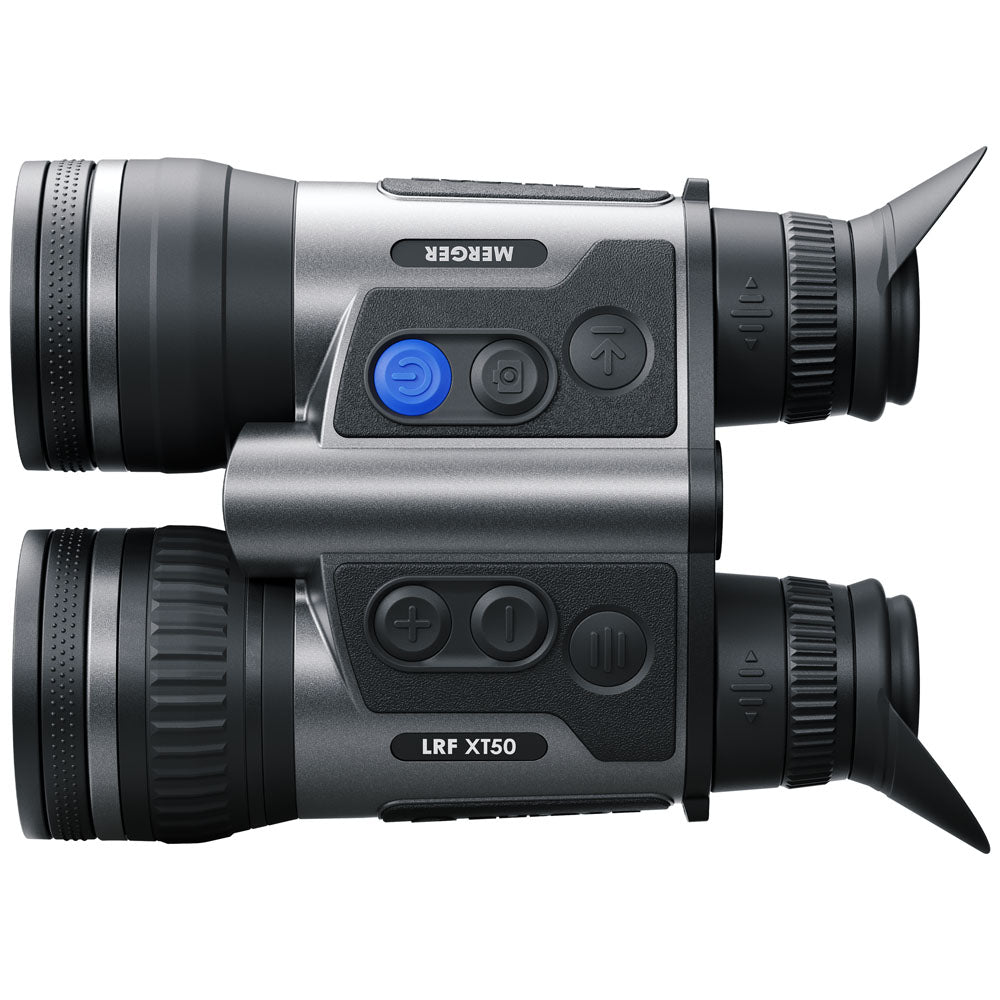

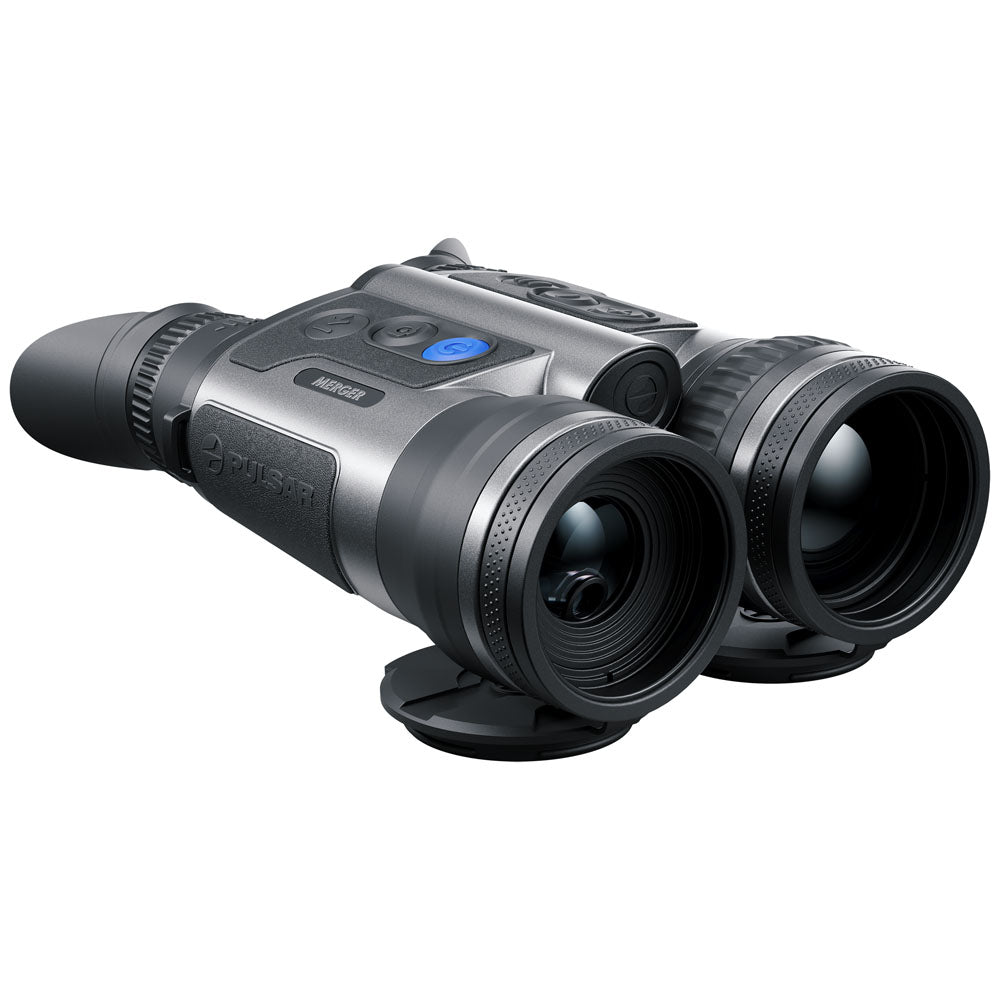

Pulsar Merger LRF XT50 Thermal Binocular

SKU:PL77486
$5,499.97
$5,499.97

The Merger LRF XT50 is a high-resolution thermal imaging binocular featuring a 1280 × 1024 thermal sensor with a 12 µm pixel pitch and a sensor NETD of less than 20 mK. The high-definition sensor is designed to provide detailed thermal imagery and clear visualization of heat signatures.

Equipped with a 50 mm F/1.0 objective lens, the Merger LRF XT50 offers a magnification range of 2×–16×. Its field of view is 17.5°, or 30.7 m at 100 m.

Key Specifications

  • Model: Merger LRF XT50
  • SKU: PL77486
  • Sensor: 1280 × 1024 @ 12 µm
  • Sensor NETD: <20 mK
  • Objective Lens: 50 mm F/1.0
  • Magnification: 2×–16×
  • Field of View: 17.5° / 30.7 m at 100 m
  • Detection Range: 2,515 yards on a standard six-foot target
  • Laser Rangefinder: 1,600 yards, single measurement and continuous scan
  • Battery: Dual internal Li-ion plus an external APS3, up to 6 hours
  • Weight: 2 lb with batteries
  • Dimensions: 197 × 140 × 72 mm
  • Water Resistance: IPX7

Source: Pulsar USA product page for the Merger LRF XT50. An older Pulsar article lists the rangefinder at 1,500 yards. The current product page says 1,600 yards, and that is the figure used here. Sold by Security Pro USA, a Pulsar dealer. Part of the Pulsar thermal lineup. Agency orders for this model are by quote. Pulsar is not on our GSA contract.
