Hesco 800 Series 4800LV Level IV Stand Alone Plate Shooter Cut - Multi Curve (SOLD INDIVIDUALLY) - Hesco

Hesco 800 Series 4800LV Level IV Stand Alone Plate Shooter Cut - Multi Curve (SOLD INDIVIDUALLY)

SKU:4800LV-SH-MC-S
Regular price $1,438.00
Regular price Sale price $1,438.00

Description

(THIS PRODUCT IS MADE TO ORDER WITH A 8-12 WEEK LEAD TIME)

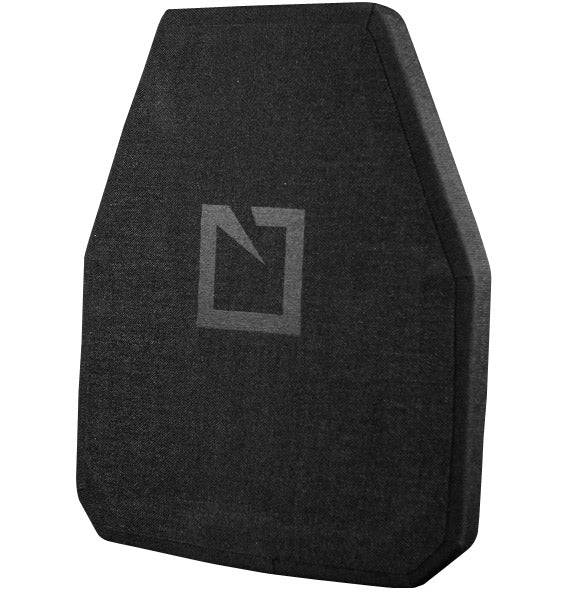

Hesco 800 Series BI 4800LV Shooter Cut Level IV Stand Alone Multi Curve Torso Plates

NIJ Level IV Law & Enforcement Shooter Cut Plates

HESCO 800 SERIES is designed to perform in fast moving, highly volatile environments requiring the ultimate in protection and maneuvrability

Using next generation materials, 800 SERIES plates are the lightest weight, highest quality plates in their class. Finished with a highly durable wrap and waterproof coating delivering unsurpassed quality in feel and performance..

  • Next Gen Spectra® Materials And Technology
  • Comfort Fitting Multi Curve Designs
  • Law Enfrocement Style Shooter Cut And Military Style Sapi Cut
  • Highly Durable, Waterproof, Polyurethane Coated, Cordura® Nylon Wrap
  • Precision Quality Control

THICKNESS: 0.67 in (17 mm)

SHOOTER CUT - MULTI CURVE - TORSO PLATES

PART NUMBER WIDTH x LENGTH WEIGHT
4800LV-SH-MC-L 10.0 x 12.0 in
(254 x 305 mm)
4.7 lb
(2.1 kg)
4800LV-SH-MC-S 8.0 x 10.0 in
(203 x 254 mm)
3.0 lb
(1.4 kg)



Manufacturing Tolerances:

Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to -0.25 in (+0.00 to -6 mm). All weights are ± 5%.

Hesco Testing Protocol

NIJ Certification of hard armor requires submission of 10” x 12” test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern, after exposure to a stringent conditioning protocol to simulate aging and wear. Level III requires six M80 rounds per plate.Level IV requires one AP M2 per plate.

For reduced thickness, the BI 4800LV does not have front face or back face foam layers and therefore does not meet the drop test or backface signature deformation requirements of NIJ Standard–0101.06. Otherwise, its ballistic performance is consistent with the BI 4800.

Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods, as well as listing many additional threats not addressed under the NIJ Certification process. Those minimum numbers are shown here.

Thread Performance Matrix

800 SERIES 4800LV-SH-MC-L
4800LV-SH-MC-S
Lead Core 5.56 x 45 mm – MI93
Max Velocity 3150 ft/s
3 3
7.62 x 39 mm - M67
Max Velocity 2390 ft/s
3 3
7.62 x 51 mm – M80 *
Max Velocity 2800 ft/s
3 3
MILD STEEL
CORE
5.56 x 45 mm - M855/SS109
Max Velocity 3150 ft/s
3 3
7.62 x 39 mm – M43
Max Velocity 2390 ft/s
3 3
7.62 x 54R – LPS
Max Velocity 2850 ft/s
3 3
ENHANCED
PERFORMANCE
5.56 x 45 mm - M855A1
Max Velocity 3050 ft/s
3 3
7.62 x 51mm – M80A1
Max Velocity 3050 ft/s
1 1
ARMOR PIERCING CORE 7.62 x 39 mm - API
Max Velocity 2390 ft/s
3 3
7.62 x 54R B-32 - API
Max Velocity 2850 ft/s
1 1
7.62 x 51 mm – M61
Max Velocity 2830 ft/s (863 m/s)
1 1
7.62 x 63 mm – AP M2 **
Max Velocity 2900 ft/s
1 1



General Information

Advanced ceramic/Spectra® design. Water repellant polyurethane coated CORDURA® fabric finish. Made in the U.S.A.

Quality Standards

Hesco operates a quality management system certified to ISO 9001:2008.
Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
