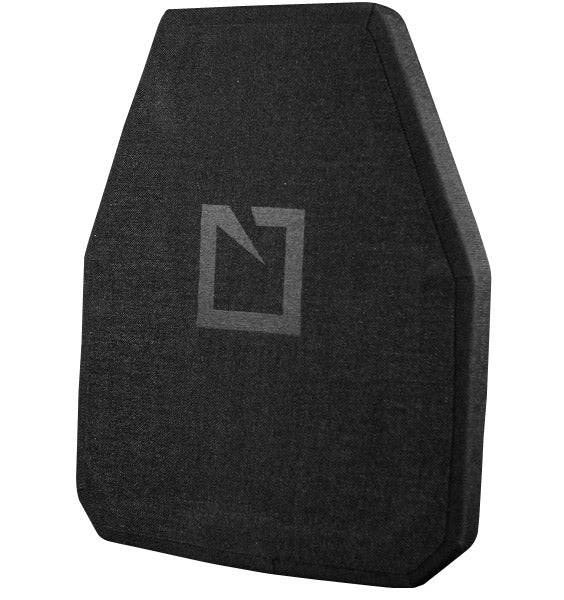

Hesco 800 Series 3800 Level III Stand Alone Plate Shooter Cut - Multi Curve (SOLD INDIVIDUALLY)
(THIS PRODUCT IS MADE TO ORDER WITH A 8-12 WEEK LEAD TIME)
Hesco 800 Series BI 3800 Shooter Cut Level III Stand Alone Multi Curve Torso Plates
HESCO 800 SERIES is designed to perform in fast moving, highly volatile environments requiring the ultimate in protection and maneuvrability
Using next generation materials, 800 SERIES plates are the lightest weight, highest quality plates in their class. Finished with a highly durable wrap and waterproof coating delivering unsurpassed quality in feel and performance..
- Next Gen Spectra® Materials And Technology
- Comfort Fitting Multi Curve Designs
- Law Enfrocement Style Shooter Cut And Military Style Sapi Cut
- Highly Durable, Waterproof, Polyurethane Coated, Cordura® Nylon Wrap
- Precision Quality Control
THICKNESS: 1.05 in (27 mm)
SHOOTER CUT - MULTI CURVE - TORSO PLATES
PART NUMBER | WIDTH x LENGTH | WEIGHT |
3800-SH-MC-L | 10.0 x 12.0 in (254 x 305 mm) |
2.2 lb (1.0 kg) |
3800-SH-MC-S | 8.0 x 10.0 in (203 x 254 mm) |
1.4 lb (0.6 kg) |
Manufacturing Tolerances:
Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to -0.25 in (+0.00 to -6 mm). All weights are ± 5%.
Hesco Testing Protocol
NIJ Certification of hard armor requires submission of 10” x 12” test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern, after exposure to a stringent conditioning protocol to simulate aging and wear. Level III requires six M80 rounds per plate. Level IV requires one AP M2 per plate.
NIJ’s process provides for the inclusion of other size torso plates of identical construction to be included under the Certification without further NIJ testing.
Hesco holds itself to a higher standard by publishing the minimum number of shots that each size platecan be expected to defeat under similar NIJ testing methods, as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix
Thread Performance Matrix
800 SERIES | 3800-FC-MC-L | 3800-FC-MC-S | |
Lead Core | 5.56 x 45 mm – MI93 Max Velocity 3150 ft/s (960 m/s) |
6 | 3 |
7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s) |
6 | 3 | |
7.62 x 51 mm – M80 * Max Velocity 2800 ft/s (853 m/s) |
6 | 3 | |
7.62 x 63 mm – JSP Max Velocity 2780 ft/s (847 m/s) |
3 | 1 | |
MILD STEEL CORE |
7.62 x 39 mm – M43 Max Velocity 2390 ft/s (728 m/s) |
6 | 3 |
General Information
Advanced Spectra® design. Buoyant. Multi shot rated on selected threats. Water repellant polyurethane coated CORDURA® fabric finish. Made in the U.S.A.
NIJ Standard–0101.06
Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard– 0101.06 plus Special Rifle Threats validated.
Quality Standards
Hesco operates a quality management system certified to ISO 9001:2008.
Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
