DroneSentry-X Vehicle, Ship and Fixed Site C-UAS Detect-and-Defeat
Vehicle, Ship and Fixed Site C-UAS Detect-and-Defeat
DroneSentry-X is a cross-vehicle compatible, automated 360° detect and defeat device. It provides 360° awareness and protection using integrated sensors to detect and defeat UAS while moving at any speed. The DroneSentry-X is suitable for mobile operations, on site surveillance and on the move missions.
DroneSentry-X offers users real-time situational awareness and ability to respond to UAS and threats detected by the system. With operator access through an included digital control panel and mountable display - users can control, access and view real-time data and live map of local UAS activity. DroneSentry-X defeat capabilities can be automatically or manually set to counter and disrupt UAS activity within range.

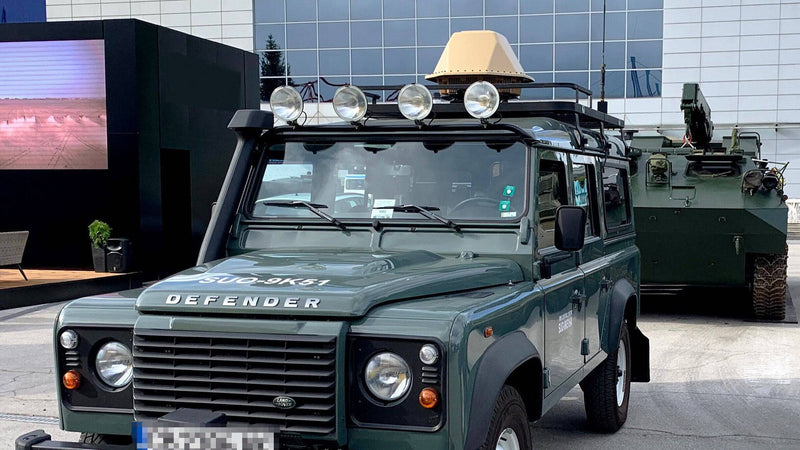

The compact device unit can be mounted to standard vehicle roof racks or fixed in other applications. Alternatively it can be deployed at a fixed site or as a temporary pop-up solution, with on site or remote operator access.
DroneShield’s C-UAS defeat capabilities do not involve protocol manipulation or “cyber” tactics, given the limitations of those methods. Our defeat technologies offer non-kinetic jamming for controlled management of response to threats.
BENEFITS OF DRONESENTRY-X:
Integrated Detect & Defeat: Dual capabilities built into a complete unit
Swarm Defence: 360° of drone disruption protects the vehicle from multi drone threats (swarms)
Extended Range - effects a wide range of ISM bands, as well as GNSS (satellite navigation)
Mobile or Fixed System: easy installation as a temporary or permanent fixed system
Durable: designed to meet military durability standards, with resistance to shock, weather and UV exposure
Cost Effective Solution: lower cost solution compared to fixed site DroneSentry systems
Detection and disruption on UAS (e.g. drones) operating on consumer and commercial ISM frequencies
Audio, Visual alerts via Operator Control Module
Environment and Installation
Dimensions: 634mm x 634mm x 232mm (24.9” x 24.9” x 9.1”)
Weight of sensor pod: 25.7kg
Operating temperature: -20°C to +55°C ( -4°F to +131°F)
External Roof Mounted Pod Designed to IP66
Clamps to standard roof racks
Tamper proof mounting options available
Input: 12VDC (optional 24VDC)
Utilises auxiliary vehicle power supply
12 months from date of shipment
Longer warranty available on request
HS Code: 8543.70.9090
