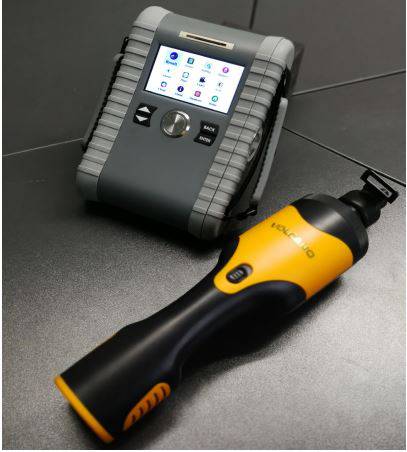

CLX is the latest advanced trace detection system for military and home
made explosives (including precursors) designed by Scintrex Trace Corp.
The instrument can be used at security checkpoints with minimal training.
If a threat is present or if it isn’t, the security personnel are informed within
seconds. It is built to withstand rough handling and tough environments.
Samples are collected from contaminated surfaces with a high efficiency
swab or with the use of a portable external vapor sampler.
> Rapid, accurate and easy to read results
> Lightweight and field-ready
> No radioactive source
Built to withstand rough handling and tough environments,
the CLX packs potent detection capability into a light-
weight, durable thermoplastic housing. The handheld CLX
analyzes both particulates and vapors in seconds, without
the need for radioactive isotopes or carrier gases.
A global leader in explosives, chemical and narcotics
detection, Scintrex Trace is Autoclear’s Canadian-based
trace detection division. Like Autoclear’s flagship X-ray
systems, these products deliver unsurpassed accuracy,
speed and reliability for detecting the most dangerous
and cleverly concealed threats.
Detector: Chemilux - MOS
Analysis Time: <10 seconds
EXPLOSIVES Detected: AN, NG, HMX, RDX, TNT, TETRYL, ETN,
R-SALT, C4, SEMTEX, TATP, HMTD, HNS, CL-20
Detectable Precursors: Nitric acid, Perchlorate and
chlorate, Sulfur, Hydrogen Peroxide,
Picric Acid, Firecracker
Sensitivity: Particulates: low nanogram
Vapors: <10 parts-per-billion (external sampler)
Sample Collection: Particulates and vapors
Display: LCD 4.3”; sunlight-readable
Alarms: Visual, audible and vibration
Power Supply: External and built-in
Input Voltage: 14.4 V Li-ion
Unit Weight: 1.9 kg (4.2 lbs.) with battery
Unit Dimensions: 25.0 x 17.0 x 8.0 cm (L x W x H)
9.8 x 6.7 x 3.2 in.
Shipping Weight: TBD
Shipping Dimensions: TBD
Communication: USB, Ethernet and Wifi
Data Storage: More than 1,000 retrievable data records
IP Rating: IP54
