AS-200

SKU:
$0.00 $0.00

Description

AFFORDABILITY, RELIABILITY, CAPABILITY. TACTICAL BALLISTIC HELMET FOR MILITARY USE.

The ArmorSource AS-200 Ballistic Helmet is the most affordable ACH/ MICH Shape NIJ Level IIIA protection helmet on the market today.

Offering proven fragmentation protection capabilities matched by our dedication to trim unwanted weight, the AS-200 is adaptable for use with all ArmorSource accessories, rails and shrouds and is relied on today by the U.S. Military and other military organizations worldwide.

FEATURES

Provides INCREASED PROTECTION AGAINST HANDGUN BULLETS (9mm and .44 Magnum) UNIVERSAL SHAPE used and accepted by most military and law enforcement organizations worldwide

Available in BOLTED AND BOLTLESS versions

Proudly MADE IN THE USA

SYSTEM SNAPSHOT

Specification Details
Shape/Design U.S. Army ACH Geometry
Shell Construction Proprietary blend of Aramid and Composite Materials
Ballistic Protection NIJ Level IIIA 0108.01 / 0106.01
Fragment Protection 17 grain V50 > 2130 f/s (650 m/s), MIL-STD-662F
9mm BFD/Trauma Up to 1" at NIJ IIIA velocity (average)
Certification From an NIJ certified laboratory
Available Head Sizes X-Small / Small / Medium / Large / X-Large / XX-Large
Available Shell Sizes Small / Medium / Large / X-Large
Extreme Testing Conditions - Operates between 160°F (71°C) and -60°F (-51°C)
- Performs after 3 hours sea water immersion
Configuration 100% Boltless (Durability Verified)
Use Law Enforcement; Patrol Units

Available Colors


Ranger Green

Sniper Black

Coyote Brown

Available Cuts

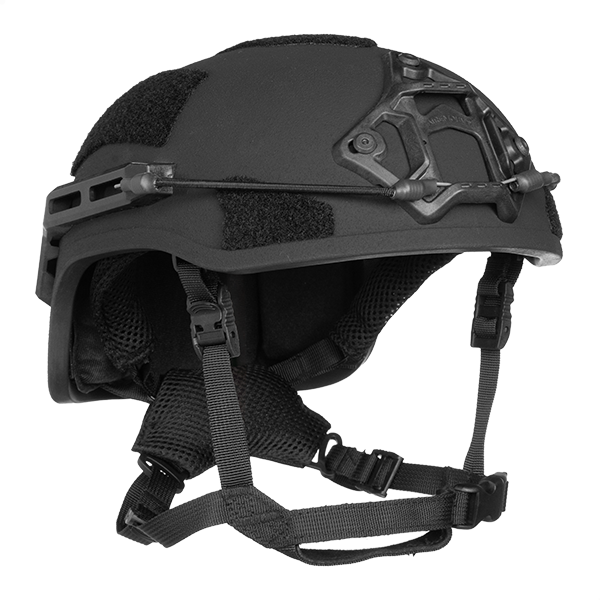

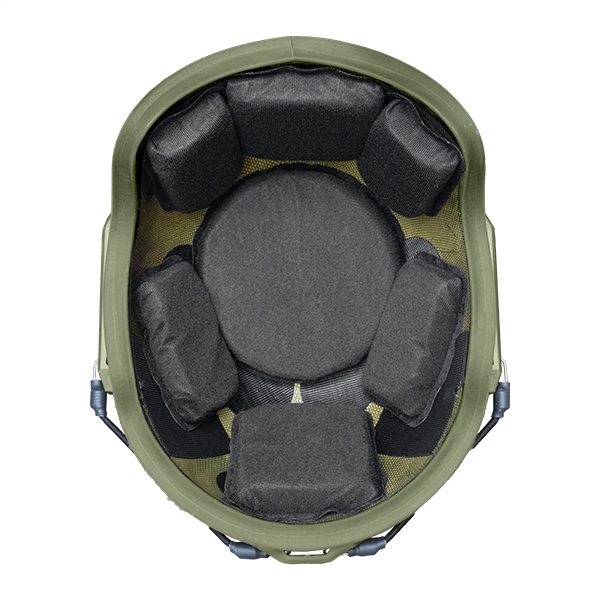

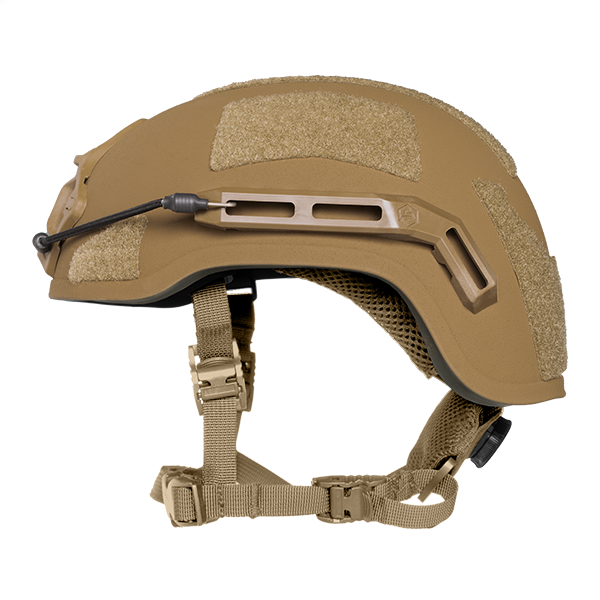

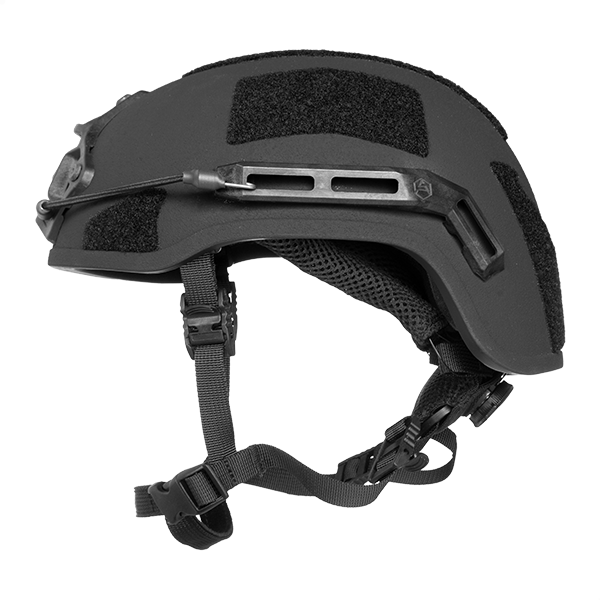

High-Cut
High-Cut

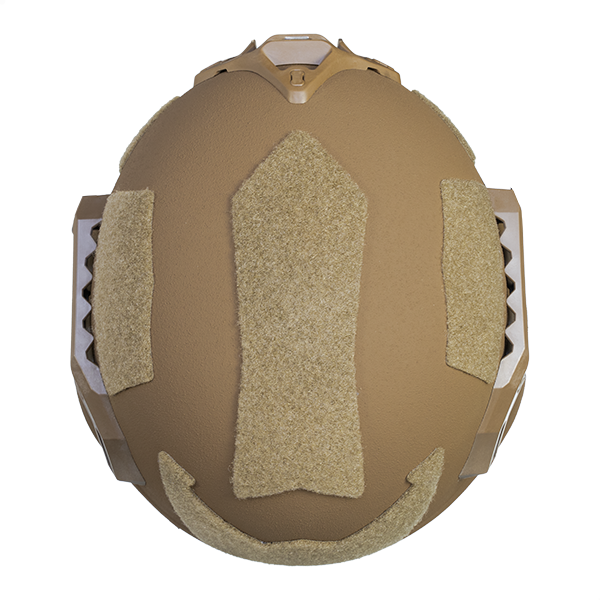

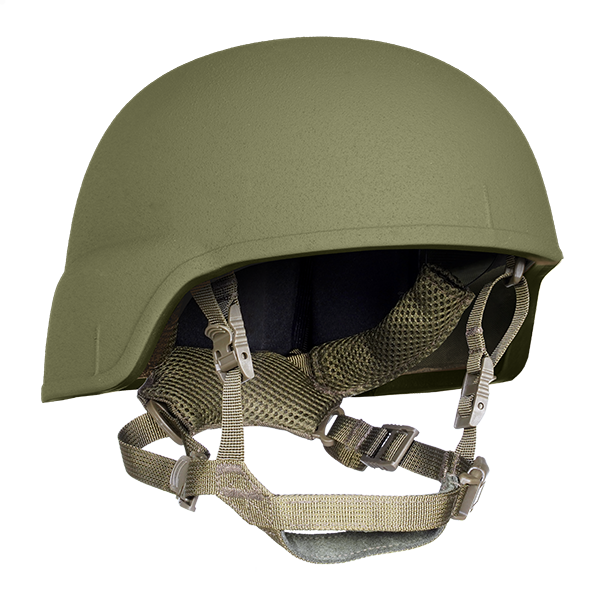

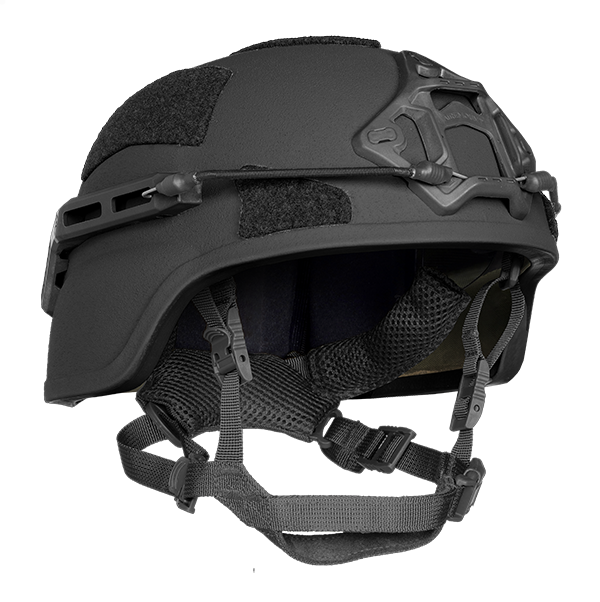

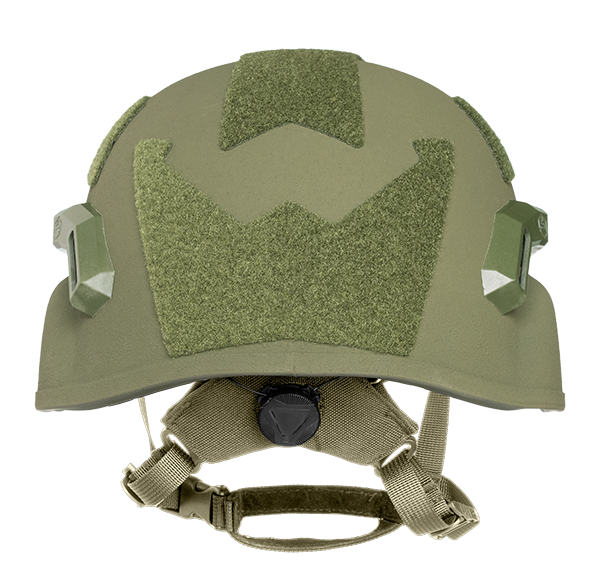

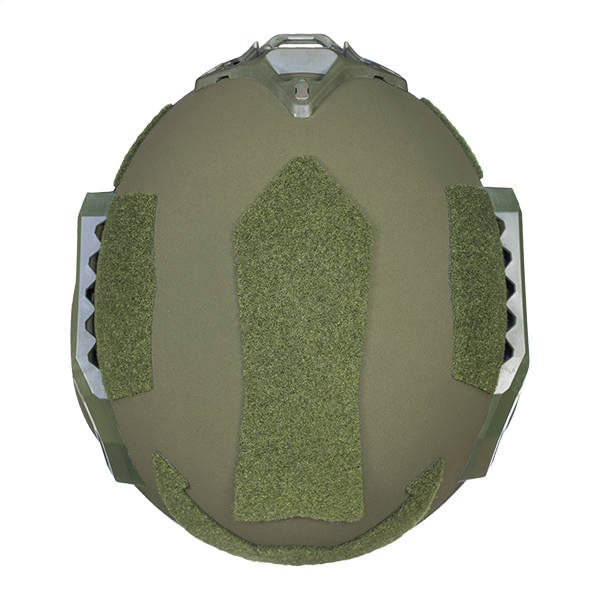

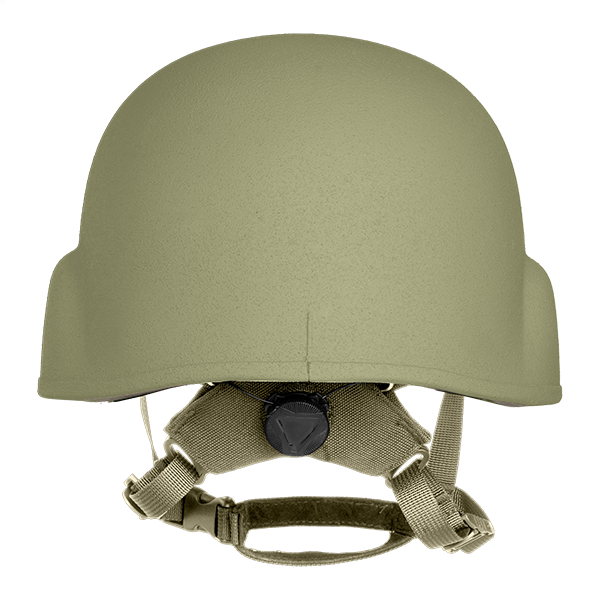

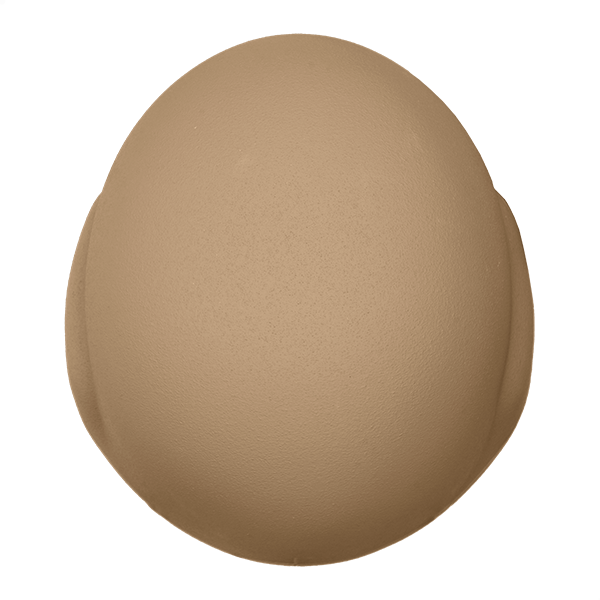

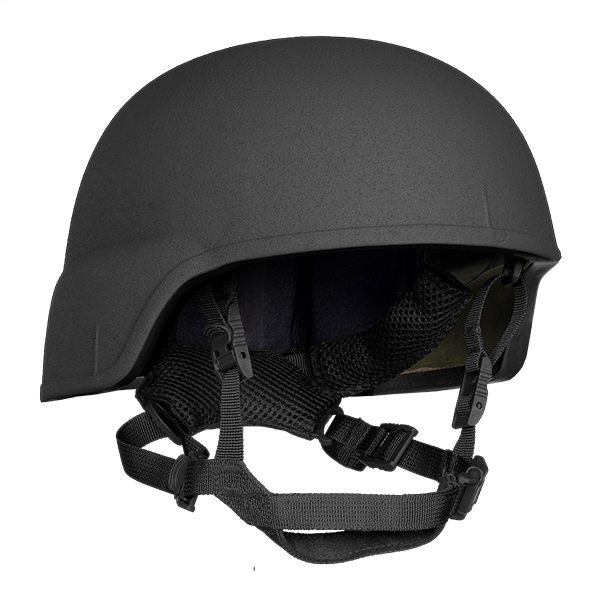

Regular-Cut
Regular-Cut

Shell Info

Shell Thickness: 0.4" (±0.1") / 10 mm (±2.5 mm)

Finished Shell Nominal Weight*:

  • Medium 1.22 kg (2.7 lbs)
  • Large 1.27 kg (2.8 lbs)
  • X-Large 1.37 kg (3 lbs)

System Info

Finished Helmet Nominal Weight**:

  • Medium 1.4 kg (3.1 lbs)
  • Large 1.45 kg (3.2 lbs)
  • X-Large 1.55 kg (3.4 lbs)

Fully Loaded High-Cut Nominal Weight***:

  • Medium 1.45 kg (3.2 lbs)
  • Large 1.48 kg (3.3 lbs)
  • X-Large 1.58 kg (3.5 lbs)

* Regular-cut shell
** A Regular-cut helmet installed with retention and suspension systems
*** Special Command configuration: the complete kit, with ASR side-rails, NVG Shroud and Operational Loop System

System Capabilities Checklist

BALLISTIC PERFORMANCE*
NIJ LEVEL IIIA ✔️
FRAGMENTATION PROTECTION ✔️
BFD / TRAUMA ✔️
ENVIRONMENTAL PERFORMANCE
SHOCK ABSORPTION * ✔️
RESISTANCE FOR PENETRATION * ✔️
ADVANCED BOLTLESS ADHESIVE SYSTEM ✔️
COMPATIBILITY & ADD-ONS*
UNIVERSAL SIDE-RAILS ✔️
NVG MOUNT ✔️
OPERATIONAL LOOP SYSTEM ✔️
COUNTERWEIGHT ✔️
CAMOUFLAGE COVER ✔️
STRAP EXTENDERS ✔️
VISOR / GOGGLES ✔️
COMMUNICATIONS / EAR PROTECTION ✔️
GAS MASK ✔️
CARRYING BAG ✔️

* In accordance with ArmorSource technical specifications and applicable standards

How to Fit Your Helmet

Getting the right fit is important for performance and comfort. Use a tape measure and caliper to take measurements. The wearer MUST be seated in an upright position for proper fitting. See the illustrations for correct measuring points.

NOTE: If any measurement falls on the dividing line between sizes, select the larger size.

Head Length

HEAD LENGTH

Head Width

HEAD WIDTH

Circumference

CIRCUMFERENCE

Measure completely around head

HELMET SIZE HEAD LENGTH HEAD WIDTH CIRCUMFERENCE
Small UP TO 7¼" / 184 mm UP TO 6½" / 162 mm UP TO 21¼" / 538 mm
Medium 7¼" / 184 mm to 7¾" / 198 mm UP TO 6½" / 162 mm 21¼" / 538 mm to 22½" / 573 mm
Large 7¾" / 198 mm to 8¼" / 210 mm UP TO 6½" / 162 mm 22½" / 573 mm to 23½" / 597 mm
Extra-Large 8¼" / 210 mm and over 6½" / 162 mm and over 23½" / 597 mm and over
AS-200 - Specification Sheet Download PDF
AS-200 - Specification Sheet Download PDF
