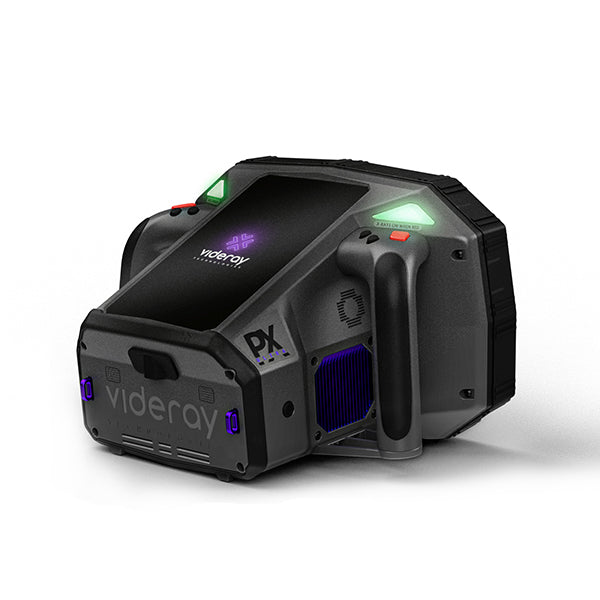

PX Ultra

• 160KV Generator
• 13mm backscatter only penetration
• 25mm with MTP+

PX1

• 140KV Generator
• 11mm backscatter only penetration
• 20mm with MTP+

PX1-Lite

• 120KV Generator
• 7mm backscatter only penetration

Industry leading image quality

See through more material, and easily identify anomalies in more scenarios by leveraging our automated image enhancement algorithms, increased power, penetration mode, and vast suite of image filters.

Unparalleled

Our patent pending revolutionary shielding protests operators form leakage and scatter radiation and exceeds all industry safety standards without compromising on image quality or device size and weight.

Compact and light weight

Go anywhere, inspect hard to reach areas, and avoid operator fatigue with the smallest and lightest weight scanner on the market.

Compact and light weight

With a 7" ultra-bright touchscreen, intuitive software interface, extended battery life, and quick action buttons built into the handles operators can do inspections faster both indoors and outdoors without the need for additional accessories.

MODEL SPECIFICATIONS

	PX ULTRA	PX1
X-RAY SOURCE	160kV / 10W	140kV / 10W
STEEL PENETRATION	13 mm	11 mm
WEIGHT*	5.1kg (11.2lbs)	4.6kg (10.2lbs)
IMAGING	• VISION 4.0 Auto Image Optimization • Scenario specific scanning modes • 10 Image enhancement filters • Image compare & stitching
CAMERA	13MP Color Front Facing

*WEIGHT WITH BATTERY

COMMON SPECIFICATIONS

IMAGING & INSPECTION ADVANTAGES

• 7in High Resolution, 700NIT, Color Touchscreen
• Quick action buttons on handles
• Store up to 15,000 images
• Wireless & wired image transfer
• Configurable scanning speeds (3.75cm to 45cm per sec)
• 60 sec max scan
• Field of view alignment line lasers

STANDARD ACCESSORIES

• Two (2) rechargeable batteries
• 1-Bay rapid charger
• Quick connect adjustable wrist & shoulder straps
• Data transfer cable
• Lockable transport case (IP67, MIL-SPEC, Airline carry-on)
• Quick start guide & operators manual

** Additional accessories available for order

OPERATING CONDITIONS

• Ingress Protection: IP54
• Operating Temperature: -20°C (-4°F) to 60°C (140°F)
• Storage Temperature: -40°C (-40°F) to 70°C (158°F)

SAFETY

• Revolutionary & patent pending built-in shielding
• Visual indicator lights and interlocks to prevent inadvertent X-ray emission
• Password required for operation
• Configurable Single/Dual Trigger Modes
• Front facing flashlight
• Contains low life radiation source

COMPLIANCE

• CE compliant
• Compliant with all applicable U.S. Federal health and safety standards.
• ANSI, ICRP, NCRP and Euratom radiation safety standards for annual dose for general public

SYSTEM

• Android operating system
• WiFi & Bluetooth
• USB
• Multi-language user interface
• 4G/5G Compatible with Hotspot*

*Hotspot / Cellular plan not provided by Vidisco

TRANSPORT CASE OPTIONS

• Lockable hard case (IP67, MIL-SPEC, Airline carry-on)
• Lockable hard case with wheels (IP67, MIL-SPEC)
• Tactical backpack

SUPPORT

• Complementary OTA Software Updates
• Complementary Email/Phone Support
• Complimentary Virtual Training
• On-site training Available
• Extended Warranty Available

BATTERIES

• 4-6 hrs battery life at typical duty cycles per battery
• 2 battery packs
• 110/220V AC 1-Bay Rapid charger

DIMENSIONS

• Length: 21.1 cm (8.3 in)
• Width: 28.2 cm (11.1 in)
• Height: 18.5 cm (7.3 in)
