Title: How Ballistic Helmets Save Lives: The Physics of Bullet Deflection
By Al Evan, Homeland Security & Ballistics Expert | Owner, CTALA — one of California's largest tactical shooting training facilities

Most people think a ballistic helmet works the same way a bulletproof vest does: a bullet hits it, the material stops it, end of story. That's true some of the time. But it's not the whole picture, and if you're the person responsible for deciding what headgear your officers, contractors, or team members wear into a threat environment, the part that gets left out of most product pages is the part that matters most: a properly designed helmet doesn't just absorb a bullet's energy — it can redirect the bullet's path entirely, and that difference is often what separates a bruise from a fatality.

The myth of "bulletproof"

No helmet is bulletproof. That phrase oversells what any piece of protective equipment can do, and reputable manufacturers avoid it for a reason — it creates false confidence in exactly the moment false confidence gets someone killed. What a certified ballistic helmet actually provides is bullet resistance: a documented, tested probability of defeating specific threats at specific velocities and angles. Understanding how that resistance actually works is where the real value is, and it comes down to two separate mechanisms that get lumped together in casual conversation but behave very differently under fire.

Two ways a helmet keeps you alive

The first mechanism is energy absorption. A round strikes the shell dead-on, the layered aramid or UHMWPE fibers catch the projectile, and the material deforms to spread that energy across a wide area instead of concentrating it at a single point. This is why the NIJ standard doesn't just ask "did the bullet get through" — it measures how far the inside of the shell bulges inward on impact. NIJ standards require that this backface deformation not exceed 25mm, since a deep indentation can cause concussions or skull fractures even when the round itself never penetrates. A helmet that stops the bullet but blows past that deformation limit hasn't actually done its job. Security Pro USA

The second mechanism — and the one almost nobody explains well — is deflection. This is where the helmet's shape does the work the material can't. When a bullet strikes the helmet, the layers deform and deflect the energy away from the wearer's head, and the shape and curvature of the helmet plays a crucial role in that outcome. A projectile striking a curved surface is more likely to be deflected than one striking a flat surface, which is why manufacturers spend so much engineering time balancing curvature against comfort and weight. Ballistic Armor Co.Ballistic Armor Co.

Think of it the way a stone skips across water. Hit the surface dead-on and it plunges straight through. Hit it at a shallow angle and the same stone glances off, losing most of its energy to the deflection instead of the target. A curved helmet shell does something similar to an incoming round, particularly at oblique angles — which, in a real gunfight, describes the majority of shots a moving target actually takes. Testing on angular shots has repeatedly undercut the assumption that helmets only protect against fire coming from directly overhead — glancing hits from the side, from below, from a shooter at a different elevation, are exactly where curvature earns its keep. Police Magazine

A real-world case: Staff Sergeant Ryan Frye

In 2012, Staff Sergeant Ryan Frye, a combat engineer with the 1st Brigade Special Troops Battalion, was on a dismounted route clearance operation in the village of Mushaki in Afghanistan's Ghazni Province when his team was ambushed by five enemy fighters. During the exchange of fire, an AK-47 round struck the left side of Frye's helmet. The impact knocked him to the ground and left him temporarily deaf, but the round itself was deflected off the curved shell rather than penetrating it — a shot that, fired from under 100 yards with a 7.62 round, would very likely have been fatal without that deflection. That's not a marketing claim. That's a documented account of exactly the physics described above playing out under real fire. Ace Link Armor + 3

Why the shell's edge design matters too

Curvature isn't limited to the crown of the helmet. Manufacturers also engineer the brim and rim geometry specifically to shed incoming rounds at low angles — some designs even incorporate a forward-extending deflection brim set at a shallow angle relative to horizontal, positioned specifically to intercept rounds traveling roughly parallel to the ground when the wearer is standing upright. Some shell coatings are engineered the same way — finished with surface treatments specifically intended to increase the tendency of a projectile to deflect or skim off the shell rather than bite into it. None of this is accidental. Every curve on a well-designed ballistic helmet is doing physics work, not just aesthetic work. usptouspto

What this means for procurement decisions

If you're evaluating helmets for a department, a facility, or a private security detail, this is the piece that should change how you read a spec sheet. Two helmets can carry the identical NIJ IIIA rating and perform very differently in a real engagement, because that rating tells you what happens on a square, direct hit in a lab — it doesn't fully capture what happens on the oblique, off-angle hits that make up most real-world gunfire. Shell curvature, brim geometry, and coverage area are the variables that determine how a helmet performs on those shots, and they're worth asking about directly rather than assuming "IIIA is IIIA."

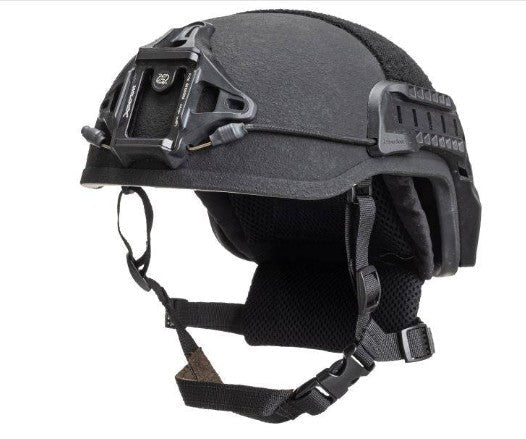

That's precisely why we build our <ins>ballistic helmet lineup</ins> around shell geometries that are proven in both lab testing and field use. The <ins>SecPro MICH ACH High Cut helmet</ins> is a good example — its low-profile curved shell is designed around exactly this deflection principle, engineered to reduce the risk of a direct, energy-concentrated hit while maintaining full NIJ IIIA ballistic performance.

If you want the deeper technical rundown on how these helmets are tested and rated, our team put together a full <ins>FAQ on ballistic helmet protection</ins> that's worth bookmarking for your procurement file.

The bottom line: a ballistic helmet doesn't just hope a bullet stops. A well-engineered one is built to make sure that if it doesn't, it never had a straight line to begin with.
