Mifram Mobile Ballistic Concrete Shelter (MBS)
Mifram Mobile Ballistic Concrete Shelter
Portable & Protected Ballistic Concrete Shelter

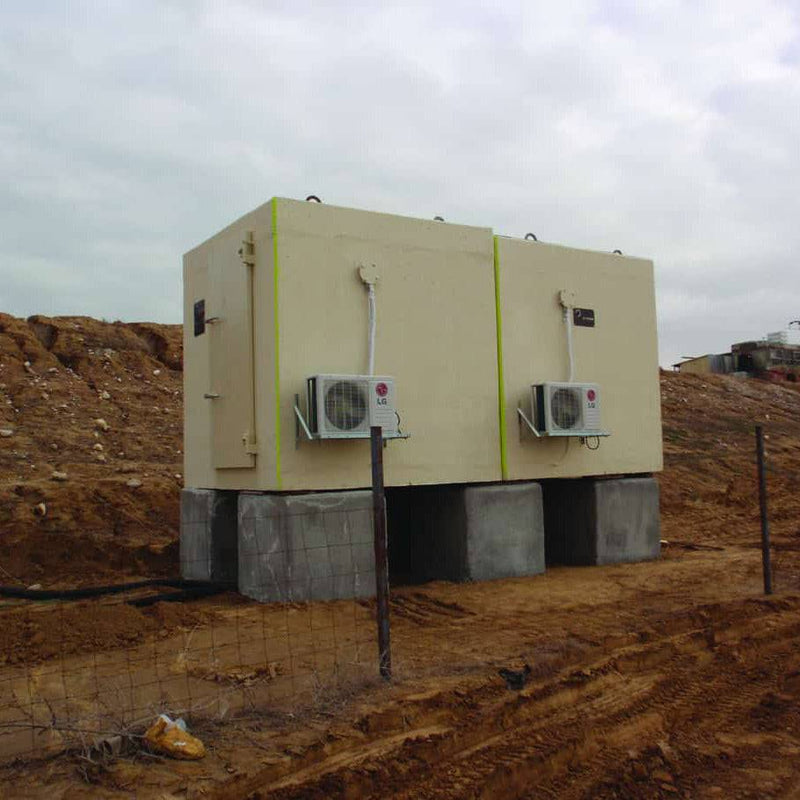

Concrete fortified spaces, mobile and portable, can be placed easily and quickly at any site and relocated as needed.
Concrete shelters can be divided into a number of categories:
- Fortified Rooms For Organizations, Factories and Public Spaces: This is the accepted protection solution for all organisations that meet the legal definition of a factory, plant or institution.
- Home/Apartment Fortified Room: The most common form of protection system for private homes and apartments.
- Concrete Shelter: Designed for organisations, factories, institutions and other bodies located at sensitive high risk sites.
- Combination Protection Solutions: Constructed from steel and concrete. The type of protection is determined by a number of parameters: purpose, wall thickness and protection rating, the area of the fortified room and the required level of finishing.
Egoz
Mobile fortified space, with 40 mm. door. Net protected area 4 SqM. Capacity – up to 20 people.
- 360° protection.
- Includes 2 ventilation vents.
- Air conditioner can be added.
- Deployment requirements: Indent Level, asphalt, concrete or gravel surface.
[Purchased by the Israel Air Force to its own specifications]
| Dimensions | |
|---|---|
| Length | 2.5 m. |
| Width | 2.5 m. |
| Height | 2.45 m. |
| Weight | 16 t. |
| Wall thickness | 25 mm. |
| Roof thickness | 20 mm. |
| Floor thickness | 15 mm. |
| Door width | 80 mm. |
| Door thickness | 40 mm. |
Natalie 2
Mobile fortified space, with entrance, no door. Net protected area 4 SqM. Capacity – up to 20 people.
- 360° protection.
- Includes 2 ventilation vents.
- Deployment requirements: Indent Level, asphalt, concrete or gravel surface.
[Purchased by the Israeli Ministry of Defense]
| Dimensions | |
|---|---|
| Length | 4.1 m. |
| Width | 2.2 m. |
| Height | 2.45 m. |
| Weight | 16 t. |
| Wall thickness | 30 mm. |
| Roof thickness | 30 mm. |
| Floor thickness | 20 mm. |
| Entrance width | 75 mm. |
Natalie 5
Mobile fortified space, with entrance, no door. Net protected area 3 SqM. Capacity – up to 15 people.
- 360° protection.
- Deployment requirements:
- Indent Level, asphalt, concrete or gravel surface.
[Purchased by the Israeli Ministry of Agriculture]
| Dimensions | |
|---|---|
| Length | 3.1 m. |
| Width | 2.15 m. |
| Height | 2.45 m. |
| Weight | 16.3 t. |
| Wall thickness | 20 mm. |
| Roof thickness | 20 mm. |
| Floor thickness | 15 mm. |
| Entrance width | 75 mm. |
