ThreatScan-LS1 is a lightweight, portable, battery powered x-ray scanning system designed in co-operation with first responders and EOD teams to meet the needs of the field operative.

Despite being remarkably lightweight, incredibly thin, portable and battery powered 3DX-RAY ’s ThreatScan®-LS1 is a powerful large format x-ray scanning system. The large 600mm x 460mm imaging area of the ThreatScan®-LS1 enables typical bags and packages to be scanned in one scan. This powerful system penetrates up to 34mm steel at 120kV, producing high quality, sub-millimetre resolution images.

You’ll find ThreatScan®-LS1 being used for suspect bag and package inspection in locations such as mass transit rail and bus stations, shopping malls, airports, stadia and sports arenas. The system is also used for general security inspection by first responders such as Police, Military and Private and Government Security agencies.

Quick and simple to deploy, the system produces high quality real-time x-ray images for rapid and accurate decision making.

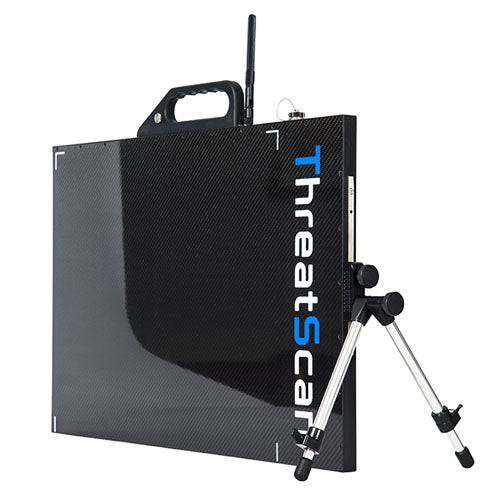

The slim detector panel is positioned behind the target; the generator is placed in front.

The scan is activated from the laptop imaging station.

The large 600mm x 460mm imaging area of the ThreatScan-LS1 enables the operator to scan typical bags and packages in a single scan.

Penetrating up to 34mm steel at 120kV the LS1 produces sub-millimetre resolution images.

A range of sophisticated image processing functions, including materials discrimination, pan, zoom, DeepFocus, 3D Emboss, measurement and annotation, coupled with high quality images enable the operator to interpret the image quickly and accurately.

The software can also communicate the image on screen to a remote command centre and save images in JPEG and other common file formats.

Ideal for use by First Responders, EOD teams, Counter Surveillance, and Customs and Security Operatives

ThreatScan - LS1

  • Suspect item inspection
  • EOD evaluation
  • Customs control
  • Vehicle scanning
  • Large format panel

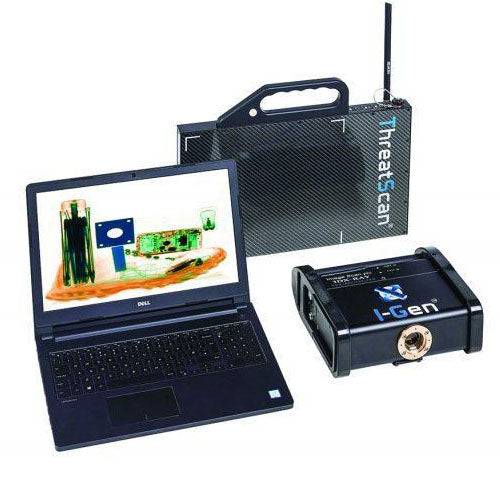

ThreatScan - LS1 System Comprises

  • A large resilient detector panel
  • A portable and robust x-ray generator
  • A laptop imaging station
  • Batteries and chargers
  • Wireless communication

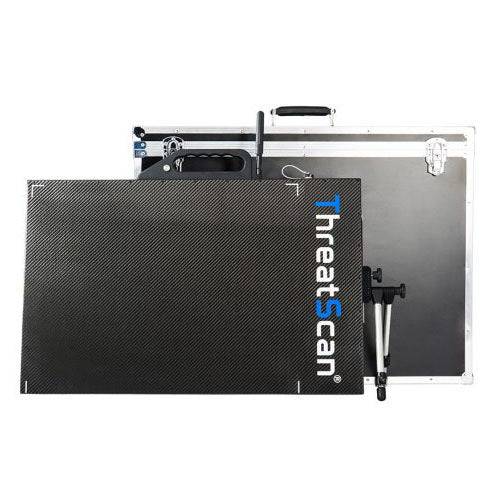

  • Carry cases
  • ThreatSpect software

ThreatScan - LS1 Features:

  • High penetration with sub-millimetre resolution
  • Large area, resilient detector panel
  • Real-time images
  • Designed for rapid deployment and ease of use
  • Powerful image enhancement and analysis tools
  • Intuitive, user-friendly ThreatSpect software
  • Scans virtually to the floor (3mm above floor level)

3DX-RAY ThreatScan- LS1 X-Ray Scanning System

ThreatScan- LS1 3DX-Ray Scanning System Specification:

X-Ray Detector Panel
Image / detector resolution 1152 pixels, 40AWG
Dynamic range 65536 (16-bit)
Image acquisition / scan speed 5 sec
Detector dimensions 753mm x 478mm x 25mm (external) (L x H x D)
Imaging / scanning area 600mm x 460mm / scans to 3mm above floor level
Weight 5kg
Power Self contained rechargeable lithium ion battery
Communication protocols Wireless 802.11 a/b/g/n Wired or fibre optic options, TCP/IP ethernet
Operating temperature -10˚C to +40˚C / MIL-STD-810F 501.4 and 502.4
Humidity 0% to 95% non-condensing

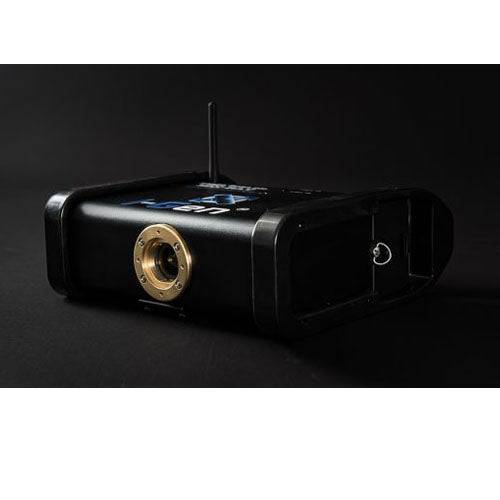

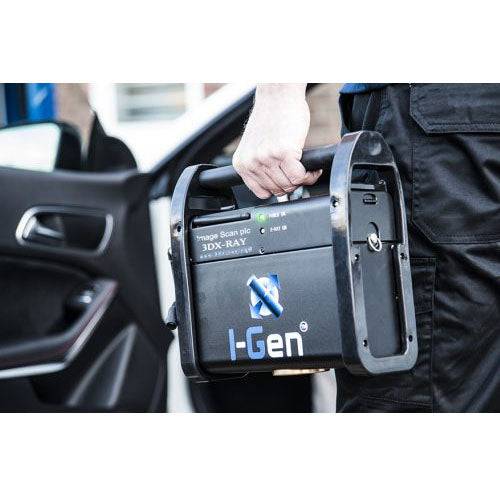

X-Ray Generator
Type 1mA constant potential 120kV
Power Self contained rechargeable cells Up to 180 images on one charge (2 hour charge) Mains power option
Penetration 30mm guaranteed, 34mm typical
Weight (without battery) 5.5 kg
Size (L x W x H) 245mm x 180mm x 80mm
Communications
Wireless (as standard) 802.11g / up to 120m range (extendable with repeaters)
Fibre optic (option) 100m, 150m, 200m
Ethernet (option) 25m, 50m
Imaging Station
Type Laptop computer (ruggedised / tablet options available) * PC specification to be confirmed and agreed at order stage
Processor Intel Core i5-4200U, Dual Core
Display 15.6” Full High Definition (1366x768) LED Display with AntiGlare
Memory 4GB 1600MHz DDR3L (RAM)
Hard Drive 500GB Serial ATA Hard Drive
Optical Drive DVD +/-RW Media Bay Drive (option)
Operating System

English MS Windows

Power Mains and battery
Software Features

Adjustable x-ray source parameters (kV, mA & time)

Standard, Inverted and False Colour images

Rotate, Histogram, Pan, Zoom, DeepFocus

On-screen Measurement and Annotation (options)

Materials Discrimination and 3D Emboss (options)

Multi-file format import (option)

Multi-touch functionality for tablet based operation (option)

Safety

Physical safety interlock plus key switch

Audible & visible warning signs

CE compliant

Certification & Codes
NATO Codification NSN 6350-99-464-9827
