IR Patrol M300W/W-K Thermal Weapon Scope
Weapon-Mounted Thermal Monocular

The IR Patrol Series thermal monoculars from Trijicon®, is designed for military applications and performance at a consumer price. Utilizing MILSPEC BAE Systems 12 Micron Thermal Cores and eMagin OLED 10,000:1 Contrast VGA Displays, IR Patrol Monoculars feature some of the most advanced performance on the market today. Compact, Lightweight, and Rugged, IR Patrol Thermal Monoculars are ready for any mission from the battlefield to the hunting field.

IR Patrol Thermal Monoculars feature easy-to-use controls at the tip of the thumb. A large, recessed thumb stick provides users the ability to access all features and menus in the unit from a single spot. The thumb stick is extremely intuitive and easy to find with or without gloves. The recessed location helps to index the users’ thumb to the controller while keeping it protected from accidental actuation. All menus and features are easily navigated from this point. The housing is machined 6061 aircraft grade aluminum, providing incredible shock protection from field abuse.

Internally, IR Patrol Thermal Monoculars are incredibly advanced. Powered by the new BAE Systems MicroIR Thermal Core, the IR Patrol boasts incredible 12 Micron performance. This provides a 50% increase in magnification during digital zoom compared to most other cores. Trijicon® uses a state of the art processor that operates on a true digital format, supplying RGB digital video to the display. Speaking of displays; IR Patrols present their video on eMagin VGA Digital 640×480 OLED Displays. This is a pixel-to-pixel match with the thermal sensor, producing a perfectly clear and sharp image to the user; no up-sizing or down-sizing to effect image quality.

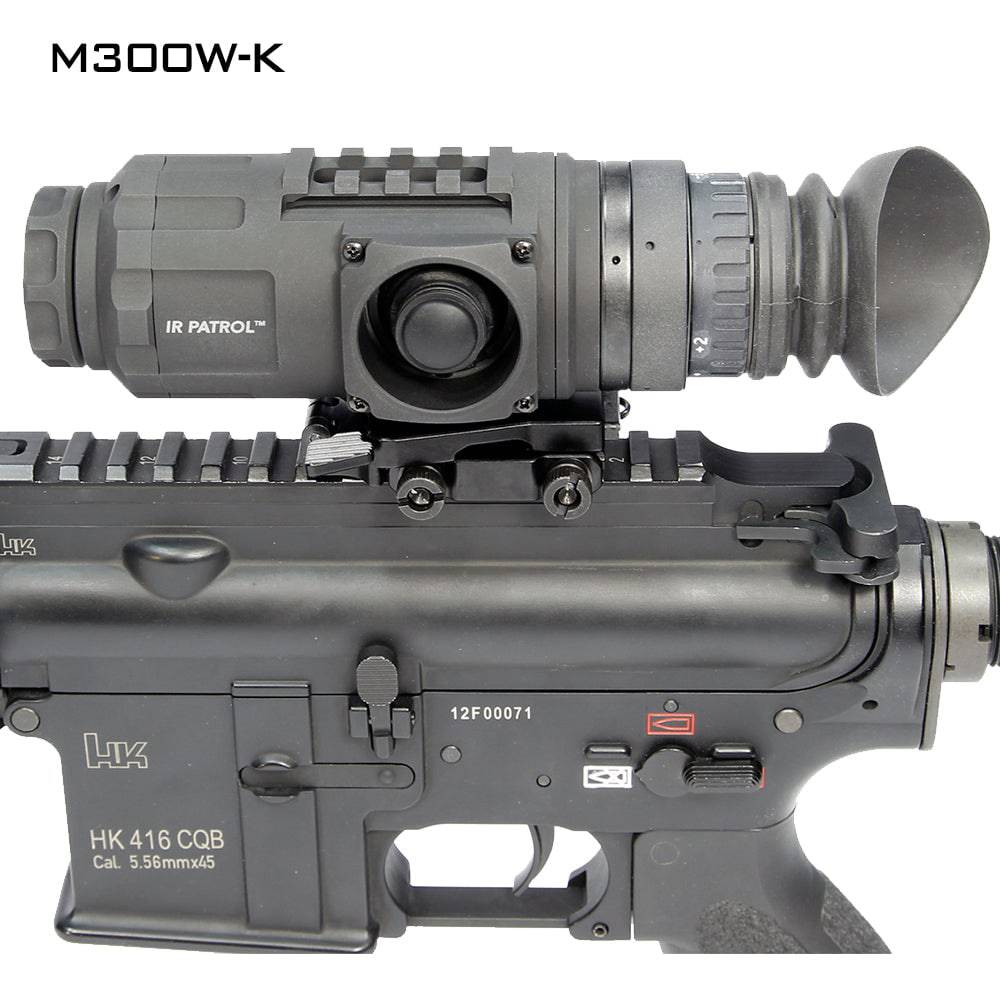

The IR Patrol M300W is a Weapon-Mounted Thermal Monocular Scope. It is capable of being used as a standalone scope with internal digital reticle or in a clip-on capacity in front of low magnification weapon optics. It features 640×480 high resolution running at a 60 Hz frame rate. Polarity Swap with MaxPol Control, Digital Electronic Zoom, Brightness and DFC Digital Focus are standard. The M300W also features Edge Detect Mode, which darkens the image while outlining heat-producing objects for quick reference. This mode is valuable for retaining the user’s natural night vision because the display is not nearly as bright. Image capture and video out are standard on all M300W Models (download cable sold separately).

The versatile M300W is the top-of-line unit in the IR Patrol Series. It provides users with a robust thermal weapon scope recoil rated up to 300 Blackout. Its small size and light weight make for a handy thermal weapon platform. The crosshair reticle works can be used as ranging tool as it is roughly the height of a grown man at 100 yards. In clip-on mode, it can be used with low power optics and red dot sights. The M300W is designed to attach to weapons via the Wilcox Flip Mount Base. The Flip Mount Base is a precision-engineered and crafted part that tightly secures the scope inline with the bore, but can allow it to be flipped to the side using a force-to-overcome mechanism. This quick flip feature is ideal for clip-on capabilities. The shooter can use the IR Patrol M300W in front of an existing weapon optic. But, when faced with a target behind glass (through which thermal imagers cannot see), the shooter can quickly flip the M300W to the side and engage the target with the standard optic. This saves time because the M300W does not need to be removed when faced with various environmental factors.

Please note: The standard M300W comes with a dovetail shoe that is ready to clip into the Wilcox Flip Base. It requires the Wilcox Flip Base to attach to a weapon (available in the Tactical Kit). Without the Flip Base, it is a handheld monocular.

Export of Thermal Imaging Equipment or related accessories (such as manuals) is strictly regulated by the US Department of State in accordance with the guidelines of the International Traffic in Arms Regulations (ITAR). It is a major crime to ship or carry US manufactured thermal imaging devices outside the borders of the United States, punishable by fines and prison sentences. Ignorance of these regulations will not hold up in court. By purchasing thermal imaging equipment from us, you attest that you will not attempt to export or carry this thermal imaging equipment outside the borders of the United States. Also, it illegal to allow a non-US Citizen to look through US Thermal Imaging Equipment, even on US soil. Again, this is a crime punishable by fines and prison sentences.

FEATURES SPECIFICATIONS:

Manufacturer: IR Defense Corporation
Dimensions: 5.95”(L) x 2.2”(W) x 2.95”(H)
Weight: 1.0 lbs.
Housing: Machined 6061 Aircraft Aluminum
Finish: Black, Corrosion Resistant
Power: One (1) CR123A
Battery Life: Approx. 1.5 Hours
Operating Temp: -40°F to +131°F
Storage Temp: -49°F to +167°F
Warranty: 3 Year Warranty

OPTICAL:

Sensor: Vanadium Oxide, Uncooled Microbolometer
Detector: 640 x 480 BAE Systems MicroIR
Sensor Pitch: 12µm Micron
Sensitivity: <50mk
Spectral Response: 8 - 12µm
Start-Up: >4 Seconds
Display: eMagin VGA Digital 640×480 OLED
FOV: 22° Optical, 3° Digital
Focus: Manual
Frame Rate: 60 Hz
Objective Lens: 19mm f/1.1
Polarity: Black hot/white hot
Analog Video: RS-170
Image Capture: Still Image and Video Out
Zoom: 1X Optical, 8X Digital
Eye Relief: 27mm
Diopter Adjustment: - 6 to +4

INCLUDES:
IR Patrol Thermal Monocular, Eye Cup, Tactical Soft Case, Lanyard, Lens Cap, Operator’s Manual, Quick Reference Guide, Batteries, Wilcox Dovetail Shoe Interface, Wilcox Flip Mount Base (Weapon Mount Kit Only)
