IR Patrol LE100 - No Image Capture
IR Patrol LE100C - Image Capture Model

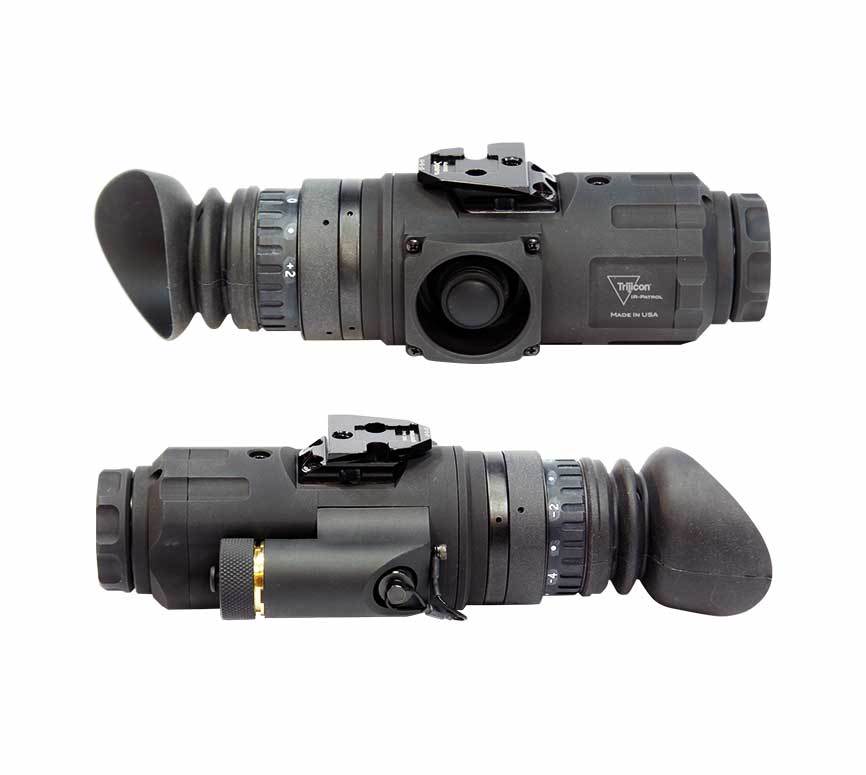

The IR Patrol Series thermal monoculars from Trijicon®, is designed for military applications and performance at a consumer price. Utilizing MILSPEC BAE Systems 12 Micron Thermal Cores and eMagin OLED 10,000:1 Contrast VGA Displays, IR Patrol Monoculars feature some of the most advanced performance on the market today. Compact, Lightweight, and Rugged, IR Patrol Thermal Monoculars are ready for any mission from the battlefield to the hunting field.
IR Patrol Thermal Monoculars feature easy-to-use controls at the tip of the thumb. A large, recessed thumb stick provides users the ability to access all features and menus in the unit from a single spot. The thumb stick is extremely intuitive and easy to find with or without gloves. The recessed location helps to index the users’ thumb to the controller while keeping it protected from accidental actuation. All menus and features are easily navigated from this point. The housing is machined 6061 aircraft grade aluminum, providing incredible shock protection from field abuse.
Internally, IR Patrol Thermal Monoculars are incredibly advanced. Powered by the new BAE Systems MicroIR Thermal Core, the IR Patrol boasts incredible 12 Micron performance. This provides a 50% increase in magnification during digital zoom compared to most other cores. Trijicon® uses a state of the art processor that operates on a true digital format, supplying RGB digital video to the display. Speaking of displays; IR Patrols present their video on eMagin VGA Digital 640×480 OLED Displays. This is a pixel-to-pixel match with the thermal sensor, producing a perfectly clear and sharp image to the user; no up-sizing or down-sizing to effect image quality.
The IR Patrol LE100 and LE100C are the entry level models in the IR Patrol lineup. They feature 640×480 resolution running at a 30hz frame rate. Polarity Swap with MaxPol Control, Digital Electronic Zoom, Brightness and DFC Digital Focus are all standard. The LE100 Series is designed as a handheld thermal monocular only. Comes with a section of M1913 Picatinny Rail for mounting accessories directly to the unit such as lights and lasers.
The LE100C is identical to the LE100 with the addition of image capture. It will capture still images only that can be later downloaded with the included download cable.
- Dimensions: 5.95”(L) x 2.2”(W) x 2.95”(H)
- Weight: 1.0 lbs.
- Housing: Machined 6061 Aircraft Aluminum
- Finish: Black, Corrosion Resistant
- Power: One (1) CR123A
- Battery Life: Approx. 1.5 Hours
- Operating Temp: -40°F to +131°F
- Storage Temp: -49°F to +167°F
- Warranty: 3 Year Warranty
- Sensor: Vanadium Oxide, Uncooled Microbolometer
- Detector: 640 x 480 BAE Systems MicroIR
- Sensor Pitch:12µm Micron
- Spectral Response: 8 - 12µm
- Start-Up: >4 Seconds
- Display: eMagin VGA Digital 640×480 OLED
- FOV: 22° Optical, 3° Digital
- Focus: Manual
- Frame Rate: 60 Hz
- Objective Lens: 19mm f/1.1
- Polarity: Black hot/white hot
- Analog Video: RS-170
- Image Capture: Still Image and Video Out
- Zoom:1X Optical, 8X Digital
- Eye Relief: 27mm
- Diopter Adjustment: - 6 to +4
INCLUDES: IR Patrol Thermal Monocular, Eye Cup, Tactical Soft Case, Lanyard, Lens Cap, Operator’s Manual, Quick Reference Guide, Batteries, Wilcox Dovetail Shoe Interface, Wilcox Flip Mount Base (Weapon Mount Kit Only)
